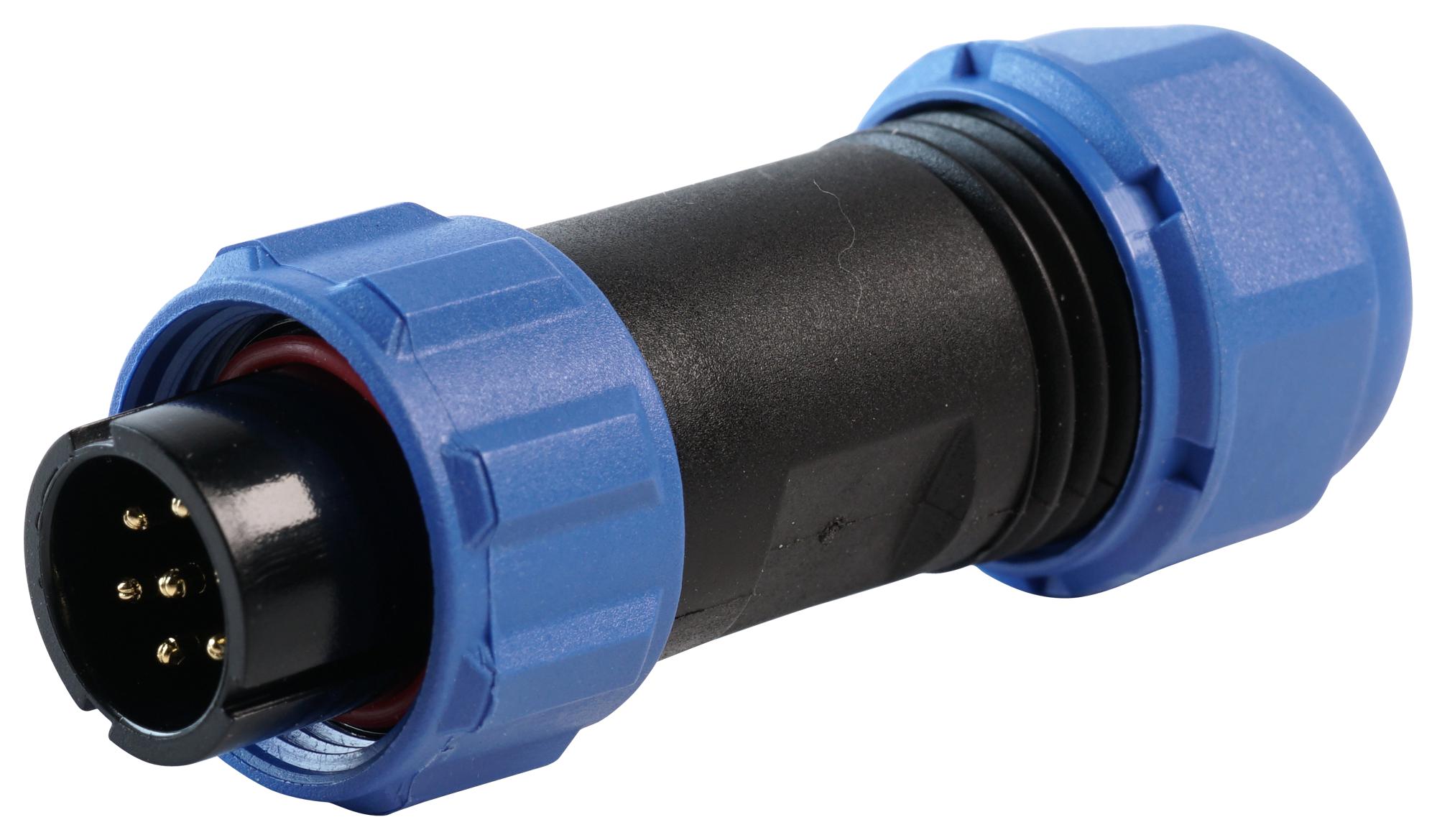

MULTICOMP PRO MP002513 Circular Connector Set
The MP-T13 IP68 series offers a robust range of connectors featuring threaded couplings and weather sealing, ensuring IP68 protection within a compact housing. These connectors are available in panel mount, cable mount, and in-line cable mount configurations, enabling cable-to-panel or cable-to-cable connections. Suitable for both indoor and outdoor applications, they fit a 13mm panel cut-out, utilize solder termination, and come with an IP68-rated cap. Multiple pole options are available, including 2, 3, 4, 5, and 7 poles. Ideal for automation, industrial automation, process control, medical, security, and measurement fields.
MULTICOMP PRO MP002513 Circular Connector Set Specifications:
- Material: PC shell, PPS insert, brass contacts with gold plating
- Ingress Protection: IP68
- Coupling: Threaded
- Temperature Range: -40°C to +85°C
- Contact Termination: Solder
- Rated Current: 13A (2P), 5A (3P, 4P, 5P, 7P)
- Rated Voltage: 250V (2P), 200V-125V (others)
- Test Voltage: 1500V (up to 7P), 1000V (others)
- Contact Resistance: 2.5 mΩ (2P), 5 mΩ (others)
- Number of Contacts: 2, 3, 4, 5, or 7
- Cable Outer Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Mating Cycles: 500
- Dimensions: Panel cutout 13mm, connector length varies
- Fire Resistance: V-0
- Insulation Resistance: 2000 MΩ
- RoHS Compliant
Buy the Multicomp Pro MP002513 – Reliable IP68 Circular Connector for Industrial Applications
Purchase the Multicomp Pro MP002513 connector set online today to ensure durable, weatherproof connections for your industrial or automation project. These connectors are designed for optimal performance in challenging conditions, offering IP68 protection and a robust threaded coupling. Available in multiple configurations with 2, 3, 4, 5, or 7 poles, they suit various cable and panel mount applications. With solder terminals and high-quality brass contacts, these connectors are perfect for outdoor, medical, security, and automation systems. Order now for fast delivery and secure connectivity.
Buy Multicomp Pro MP002513 now and experience unmatched reliability and performance in harsh industrial environments.
