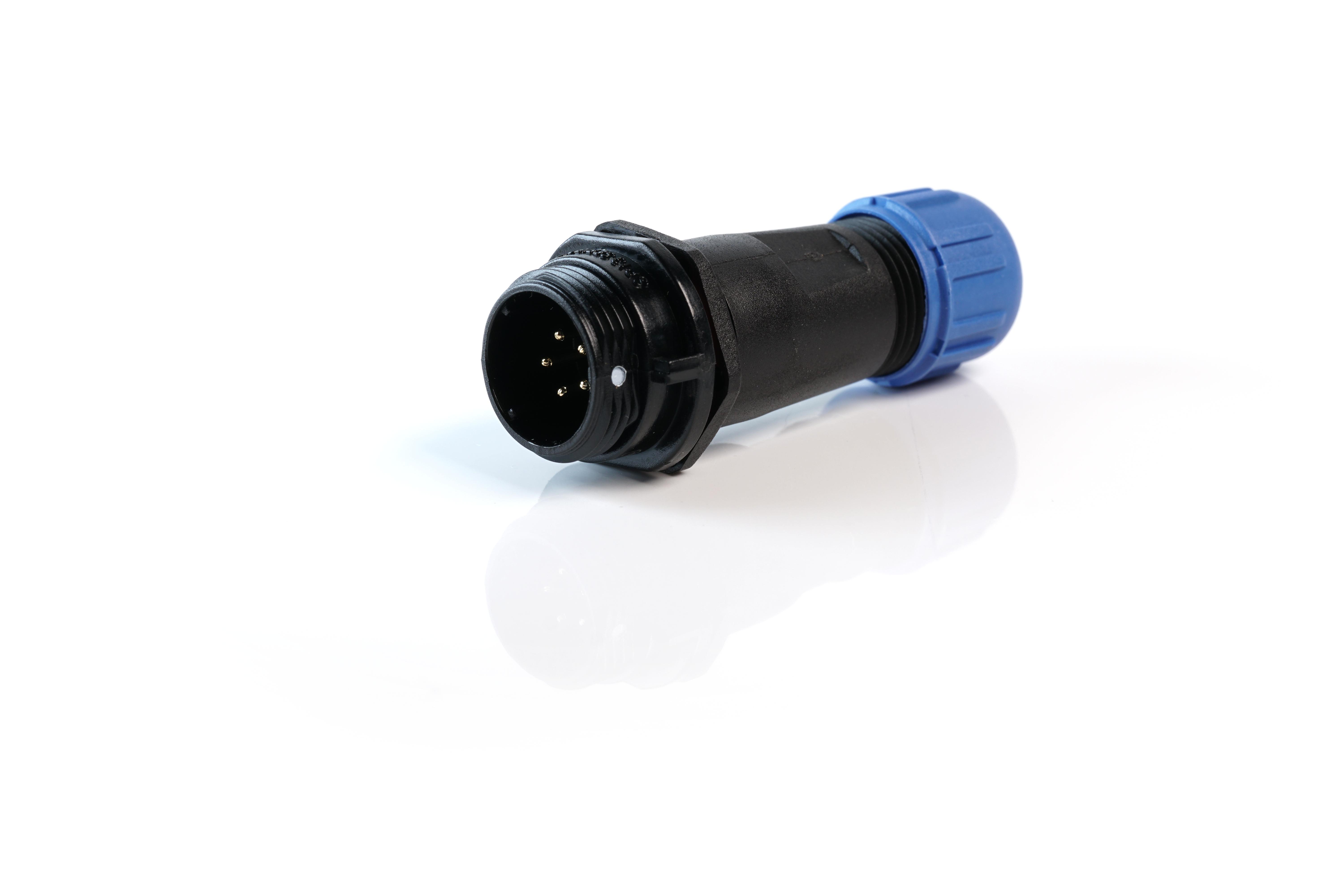

MULTICOMP-PRO MP002523 Industrial Waterproof Connector
The MP-T13 IP68 series connectors are durable, weatherproof, and ideal for industrial and outdoor applications. Designed with threaded couplings and IP68 sealing, they ensure reliable connections in harsh environments. These connectors are available in panel mount, cable mount, and inline configurations, accommodating 2, 3, 4, 5, and 7 poles, with solder termination for easy installation. Suitable for automation, security, medical, and testing equipment, they feature a 13mm panel cut-out, brass contacts with gold plating, and an operating temperature range of -40°C to +85°C, providing high performance and corrosion resistance.
MULTICOMP-PRO MP002523 Industrial Waterproof Connector Specifications:
- Material: Brass with gold plating contacts, PPS insert, and shell materials
- IP Rating: IP68, dust-tight and waterproof
- Coupling: Threaded connection with locking nut
- Termination: Solder
- Temperature Range: -40°C to +85°C
- Contact Diameter: 1-1.6 mm depending on configuration
- Rated Current: Up to 13A
- Rated Voltage: Up to 250V
- Insert Material: PPS, Max. Temperature 260°C
- Number of Poles: 2, 3, 4, 5, 7
- Mating Cycle Durability: 500 cycles
- Outer Cable Diameter Range: 4mm to 8mm
- Dimensions: Connector shell designed for panel cutout of 13mm, overall dimensions vary by configuration
Buy the Multicomp Series IP68 Waterproof Connector: MP002523
Enhance your projects with the reliable, weatherproof waterproof connector from the Multicomp Series. Designed for durable outdoor and industrial use, this IP68 rated connector features threaded coupling, solder termination, and multiple configurations with 2, 3, 4, 5, or 7 poles. Suitable for automation, security, medical, and testing applications, it withstands harsh environments from -40°C to +85°C. Easy to install and highly durable, this connector ensures longevity and high performance in demanding conditions, making it an essential component for your industrial systems.
Order your Multicomp Series IP68 waterproof connector MP002523 today and ensure your projects have reliable, weatherproof connections for any environment.
