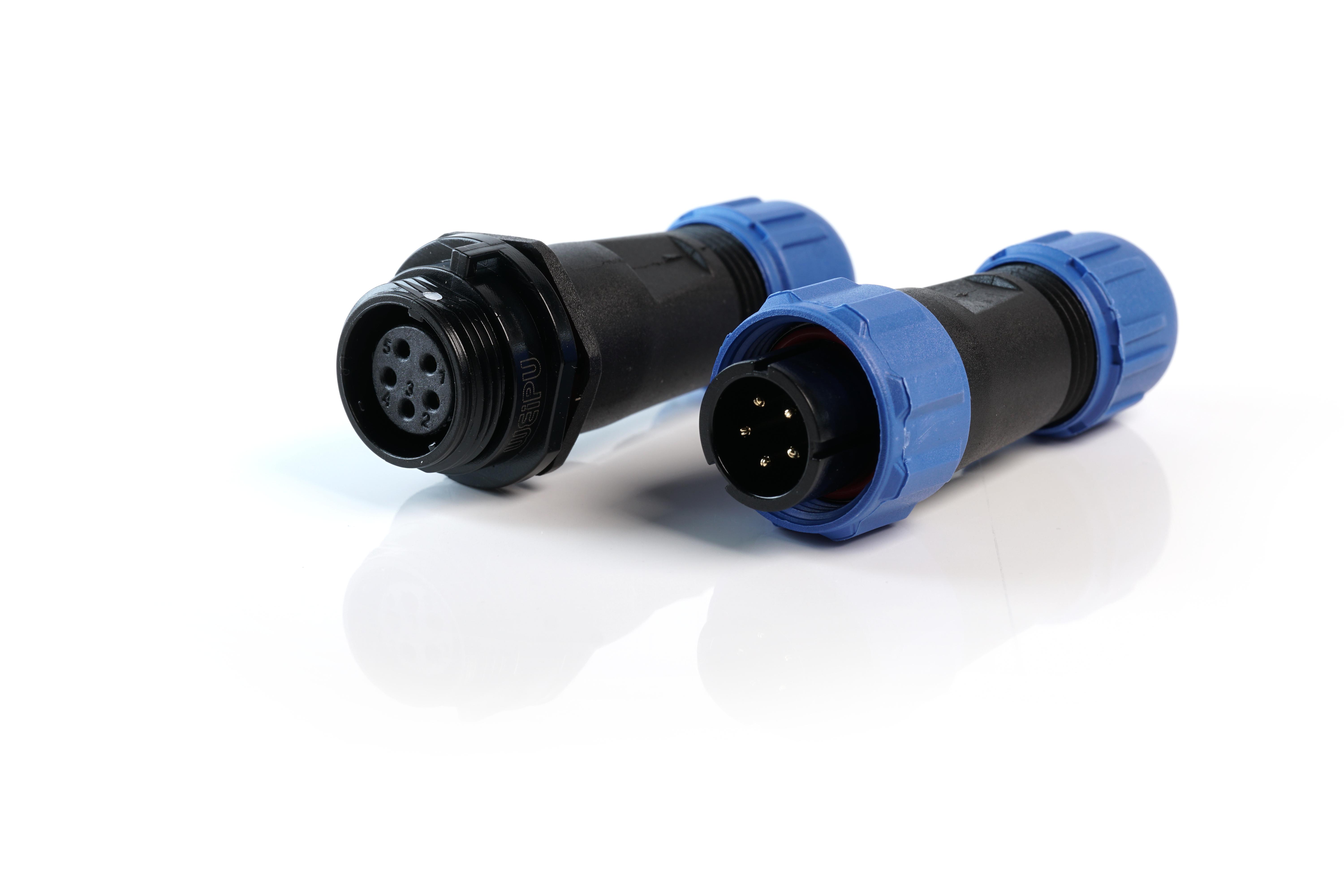

MULTICOMP-PRO MP002533 Weatherproof Circular Connector
The MP-T13 IP68 series offers a robust and weatherproof connector solution with threaded coupling and IP68 sealing, ideal for outdoor and industrial applications. These connectors, available in panel, cable, and inline configurations, support various pole counts from 2 to 7. Designed with solder termination and a maximum temperature of 260°C, they ensure reliable performance in harsh environments. They feature a durable shell, brass contacts with gold plating, and accommodate cable outer diameters from 4mm to 8mm. Suitable for automation, process control, medical, security, and measurement applications, they deliver secure, corrosion-resistant connections with high durability and mating cycles.
MULTICOMP-PRO MP002533 Weatherproof Circular Connector Specifications:
- Shell Material: Nickel-plated die-cast zinc
- Contact Material: Brass with gold plating
- Temperature Range: -40°C to +85°C
- Max. Temperature: 260°C
- IP Rating: IP68
- Rated Current: 13A (2 poles), 5A (3-7 poles)
- Rated Voltage: 250V (2, 3 poles), 200V (4, 5, 7 poles)
- Test Voltage: 1500V (1 min)
- Contact Resistance: 2.5mΩ (2-3 poles), 5mΩ (4-7 poles)
- Wire Size: 0.75/18 AWG (approx. 2mm²)
- Mating Cycle: 500
- Cable Outer Diameter Range: 4mm to 8mm
- Connector Configurations: Panel mount, cable mount, inline
- Termination: Solder
- Housing Color: Typically black or metallic
- Durable gasket and sealing components ensure IP68 rating
- Compatible with dust caps for sealing when disconnected
Buy the Multicomp Series IP68 Circular Connector: MP002533
Order the Multicomp Series IP68 Circular Connector MP002533 online today to ensure high-quality, durable, and weatherproof connectivity in industrial and outdoor applications. Designed with threaded coupling, solder termination, and available in multiple configurations, this connector provides reliable and secure connections in harsh environments. Its IP68 rating guarantees protection against dust and water ingress, making it ideal for automation, process control, medical, and security systems. Invest in proven robustness for your critical electronics with a quick and easy online purchase.
Buy Multicomp IP68 Connector MP002533 now and experience unmatched durability, weather resistance, and secure connections for tough environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002533?
You can click on the BUY or RFQ button to purchase MP002533 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002533?
You can download the MP002533 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002533?
MULTICOMP-PRO
