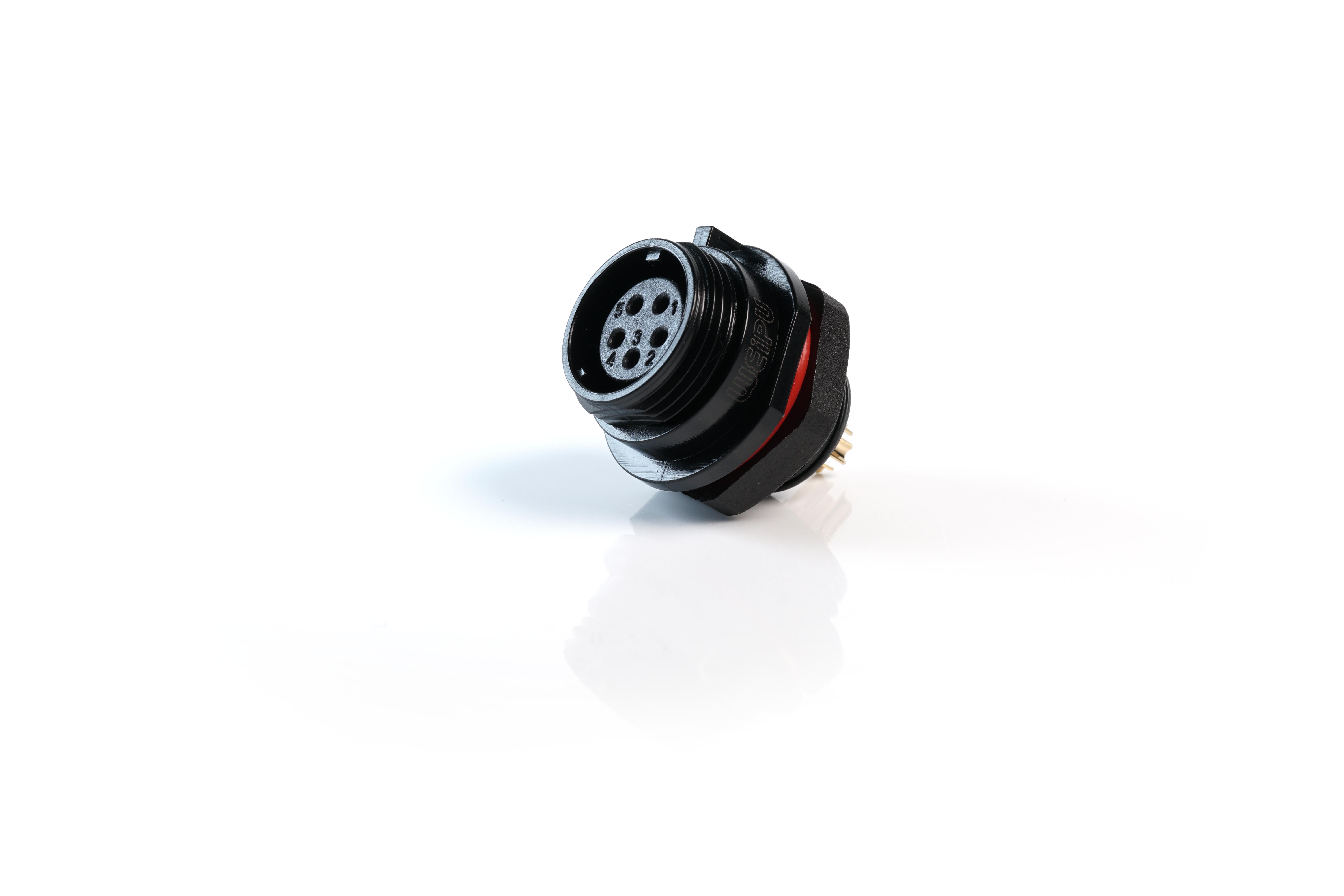

MULTICOMP PRO MP002543 Industrial Circular Connectors
The MP-T13 IP68 series provides highly durable connectors suitable for harsh environments, featuring threaded coupling, weatherproof sealing to IP68, and various configurations including panel, cable, and inline mount types. These connectors support multiple poles—2, 3, 4, 5, or 7—and standard solder terminations, making them ideal for industrial automation, outdoor applications, and security systems. With a compact design supporting 13mm panel cut-outs, they include an IP68-rated cap for additional environmental protection, ensuring reliable electrical connections in demanding conditions.
MULTICOMP PRO MP002543 Industrial Circular Connectors Specifications:
- Shell Material: PP (Polyphenylene), Fire Resistance: V-0
- Ingress Protection: IP68
- Temperature Range: -40°C to +85°C
- Rated Voltage: 125-250V AC depending on model
- Rated Current: 5A to 13A depending on contact
- Contact Material: Brass with gold plating
- Termination: Solder
- Number of Supports: 2, 3, 4, 5, 7 poles
- Cable Range: 4mm to 8mm outer diameter
- Mating Cycle: 500
- Insert Material: PPS, Max. Temperature: 260°C
- Connector Dimensions: Compatible with 13mm panel cutout
- Operating Temperature: -40°C to +85°C
Buy the Multicomp IP68 Connectors – Reliable Industrial Connectors for Harsh Environments
Choose the reliable Multicomp IP68 industrial circular connectors for your project. These connectors feature robust threaded coupling, weatherproof sealing, and a variety of configurations supporting multiple poles. Designed for harsh environments, they support Solder termination, have a high IP68 rating, and are suitable for outdoor, automation, and security applications. With a compact design supporting 13mm panel cut-outs and an IP68-rated cap for extra protection, these connectors deliver dependable, long-lasting electrical connections in demanding industrial settings.
Order your Multicomp IP68 Connector today and ensure durable, weatherproof connections suitable for industrial automation and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002543?
You can click on the BUY or RFQ button to purchase MP002543 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002543?
You can download the MP002543 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002543?
MULTICOMP PRO
