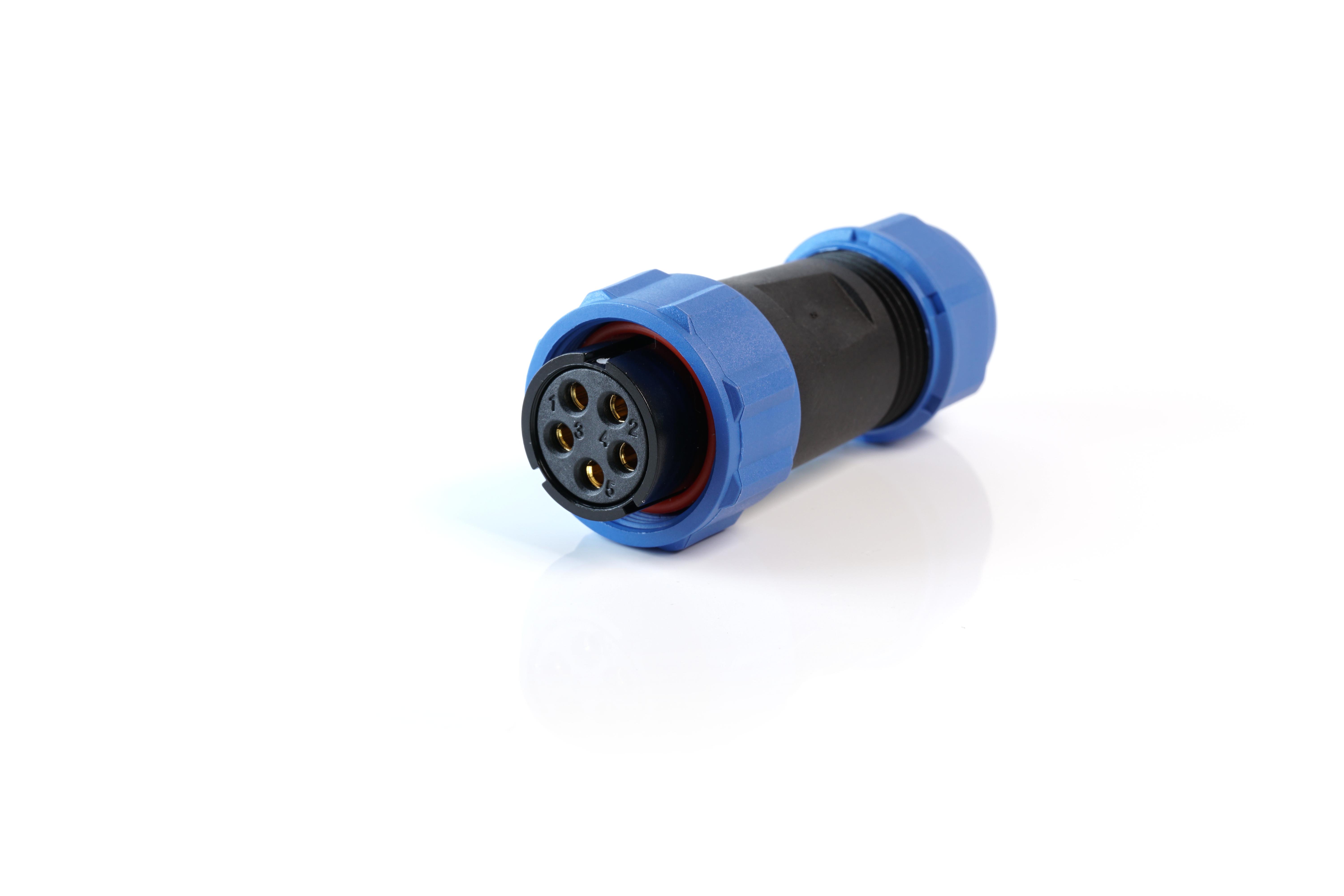

MULTICOMP PRO MP002567 Industrial Connector
The MP-T21 IP68 series connectors are rugged, weatherproof connectors designed for harsh environments, providing reliable, dust-tight, and water-resistant connections. Featuring threaded coupling and available in panel, cable, and inline configurations, they support 2 to 12 poles with solder or screw terminations. Constructed with nylon shell, brass contacts with gold plating, and PPS insulators rated up to 260°C, these connectors withstand temperatures from -40°C to +85°C and are rated for 500 mating cycles. Ideal for industrial automation, automation systems, and process control applications, they ensure durable and secure connectivity in demanding conditions.
MULTICOMP PRO MP002567 Industrial Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder and Screw options
- Temperature Range: -40°C to +85°C
- Ingress Protection: IP68
- Mating Cycles: 500
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 30 A for up to 5 contacts, 15 A for 7 and 9 contacts, 5 A for 12 contacts
- Rated Voltage: 500 V for 2-7 contacts, 400 V for 9 contacts, 1200 V test voltage
- Contact Resistance: 1 mΩ for up to 5 contacts, 2.5 - 5 mΩ for larger configurations
- Connector Types: Cable Mount, In-line, Rear Panel Mount
- Cable Outer Diameter Range: 7mm to 12mm
- Materials and Construction: Locking nut, back shell, compressing nut, retaining nut, rubber rings
- Compatibility: Suitable for automation, process control, industrial applications
Buy the multicomp U2022 MP002567 – Reliable IP68 Connectors for Industrial Applications
Secure your connections in demanding conditions with the multicomp IP68 industrial connectors. Featuring threaded coupling, IP68 protection, and support for multiple configurations, these rugged connectors ensure long-lasting, reliable connections for automation, process control, and industrial systems. Easy to install with solder or screw termination options, they are built from high-quality materials like nylon66 and brass, withstand extreme temperatures, and are rated for hundreds of mating cycles. Purchase online today for durable, weather-resistant connectivity solutions that meet your industrial needs.
Buy multicomp MP002567 now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002567?
You can click on the BUY or RFQ button to purchase MP002567 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002567?
You can download the MP002567 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002567?
MULTICOMP PRO
