MULTICOMP PRO MP002570 Sealed Connector
The MP-T21 IP68 series offers durable, weatherproof connectors with threaded coupling, suitable for indoor and outdoor use in automation, medical, security, and industrial applications. Featuring multiple configurations, including 2, 3, 4, 5, 7, 9, and 12 poles, these connectors can be mounted on panels or used as inline cable connections. They support solder and screw terminations, fit a 21mm cut-out, and have an IP68 rating for dust and water resistance. An optional protective cap enhances sealing, making these connectors ideal for demanding environments requiring reliable and sealed connectivity.
MULTICOMP PRO MP002570 Sealed Connector Specifications:
- Material and Shell: Nylon66 shell with PPS insert, maximum temperature 260°C
- Contacts: Brass with gold plating, rated current 30A, voltage 500V AC
- Contact Sizes: 2, 3, 4, 5, 7, 9, and 12 poles, contact diameters from 1mm to 3mm
- Termination: Solder and screw options, wire sizes from 0.75mm² to 4mm²
- IP Rating: IP68, dust and waterproof; Mating cycle: 500 times
- Temperature Range: -40°C to +85°C, insulation resistance ≥ 2000MΩ
- Configuration: Panel, cable, inline mount options; suitable for 12mm to 21mm cable outer diameters
- Additional: Rubber sealing rings, retaining nuts, optional waterproof dust caps

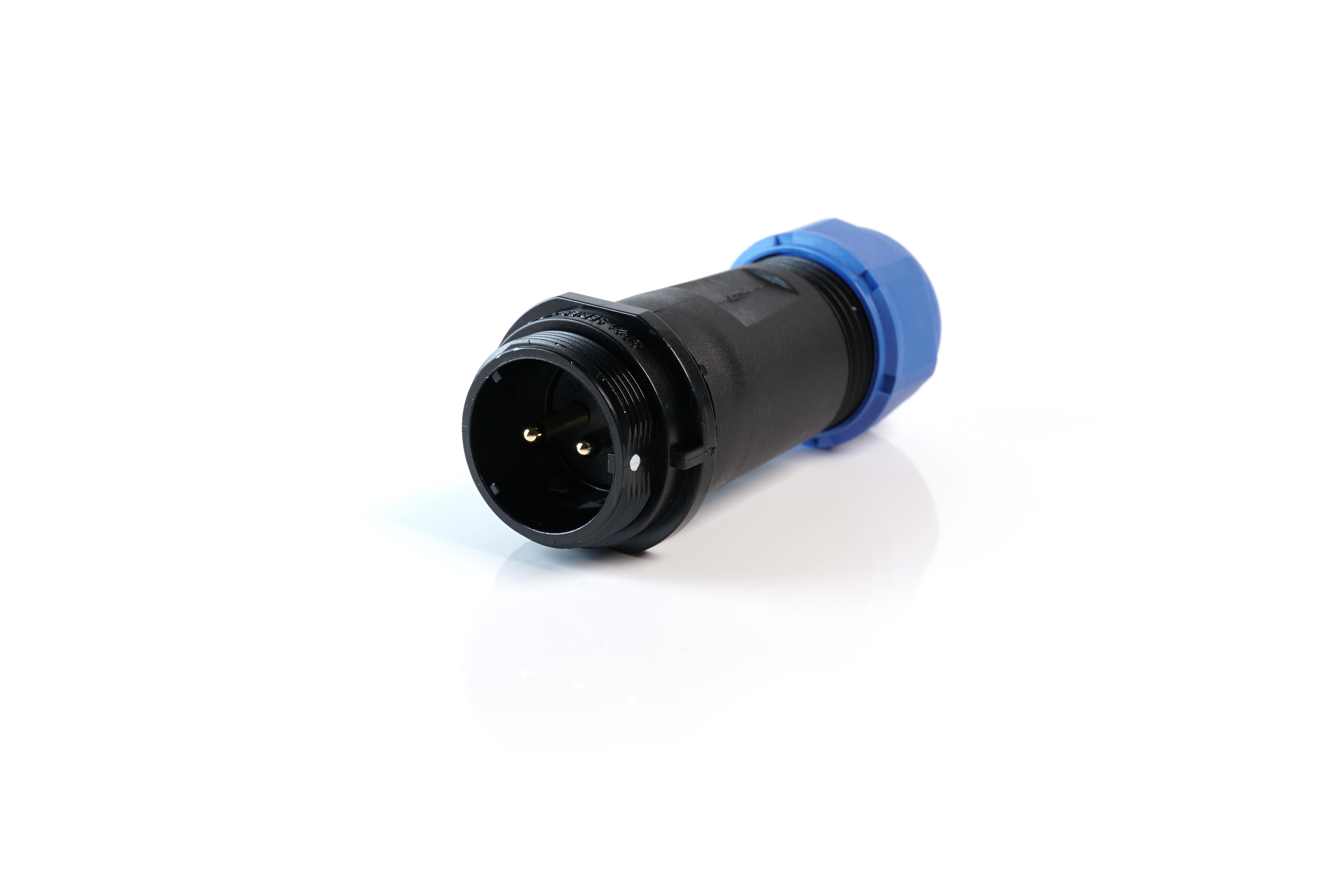

Buy the Multicomp Series IP68 Connector: MP002570
Upgrade your wiring integrity with the multicomp series IP68 Sealed Connector MP002570. With robust nylon shells, gold-plated contacts, and dual termination options, these connectors ensure secure, waterproof connections in harsh environments. Suitable for a range of applications including automation, security, medical devices, and industrial machinery, they support multiple configurations with 2 to 12 contacts. The connectors are rated IP68 for dust and water resistance, withstand temperatures from -40°C to +85°C, and feature easy mounting options for panels or inline use. Protect your investment with optional dust caps and enjoy long-lasting performance in demanding conditions.
Order your multicomp IP68 connector MP002570 today and ensure reliable, sealed connectivity for demanding industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002570?
You can click on the BUY or RFQ button to purchase MP002570 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002570?
You can download the MP002570 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002570?
MULTICOMP PRO
