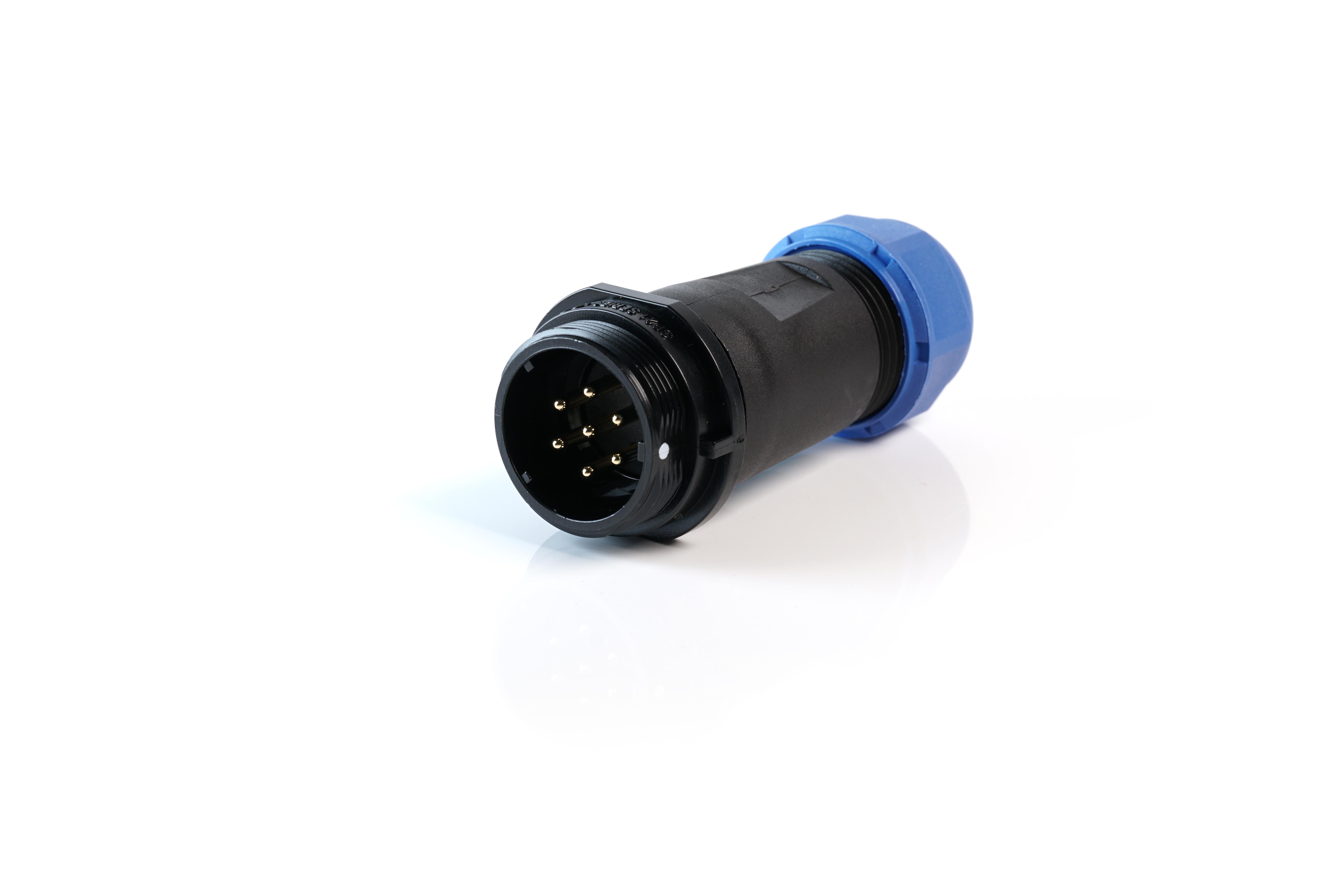

MULTICOMP PRO MP002577 Waterproof Connector
The MP-T21 IP68 series connectors are robust and waterproof, featuring threaded coupling and secure sealing for industrial, automation, and outdoor applications. Available in panel, cable, and in-line mountings, they support solder and screw terminations with configurations from 2 to 12 poles. Designed for rugged environments, these connectors withstand temperatures from -40°C to +85°C and support 500 mating cycles. Constructed with nylon66 shells, brass contacts with gold plating, and PPS inserts, they ensure long-lasting reliable connections. An IP68 cap enhances environmental protection, making these connectors ideal for harsh conditions.
MULTICOMP PRO MP002577 Waterproof Connector Specifications:
- Material: Nylon66 shell, brass contacts with gold plating, PPS insert
- Ingress Protection: IP68 rated, waterproof and dustproof
- Temperature Range: -40°C to +85°C
- Mating Cycles: 500
- Contact Configuration: 2 to 12 poles
- Termination Options: Solder and screw
- Rated Current: 30A for up to 5 contacts, 15A for 7 contacts, 5A for 9 contacts
- Rated Voltage: 500V AC (up to 5 contacts), 400V AC (9 contacts)
- Contact Resistance: 1mΩ for 2-5 contacts, 2.5-5mΩ for larger configurations
- Coupling Type: Threaded
- Connector Dimensions: Designed for 21mm panel cut-out
- Temperature Rating: -40°C to +85°C
- Mating Cycle Life: 500
- Additional: IP68 weatherproof cap available for environmental protection
Buy the Multicomp IP68 – Reliable Waterproof Connectors for Industrial Applications
Purchase multicomp waterproof connectors online today to ensure your industrial and outdoor projects have reliable, sealed, and professional-grade connections. Designed for harsh environments and demanding applications, these connectors support secure cable-to-panel and cable-to-cable setups with protected threading and IP68 sealing standards. Ideal for automation, medical, security, or measurement systems, they feature robust nylon shells, gold-plated brass contacts, and versatile termination options. Quickly order the size and configuration needed for your project and benefit from fast, reliable shipping.
Get multicomp IP68 connectors today—built for precision, durability, and secure industrial connections.
