MULTICOMP PRO MP002586 industrial connectors
The MP-T21 IP68 series connectors are rugged, weatherproof devices designed for reliable electrical connections in harsh environments. Featuring threaded coupling and IP68 rating, these connectors are suitable for outdoor and industrial applications. They are available in panel, cable, and inline configurations with 2, 3, 4, 5, 7, 9, and 12 pole options. The connectors support solder and screw terminations, fitting a 21mm cut-out, with optional waterproof caps. They are ideal for automation, process control, medical, security, and measurement systems, ensuring robust performance in demanding conditions.
MULTICOMP PRO MP002586 industrial connectors Specifications:
- IP rating: IP68
- Material: Nylon66 shell with PPS insert, brass contacts with gold plating
- Temperature Range: -40°C to +85°C
- Contact Size: 2-12 poles, with diameters from 1mm to 3mm
- Rated Current: 5 to 30A depending on number of contacts
- Rated Voltage: up to 500V
- Test Voltage: 1500V for 1 minute
- Termination: Solder or screw
- Coupling: Threaded fastening
- In-line, panel, and cable mount options available
- Mating Cycle: 500
- RoHS compliant
- Cable Outer Diameter Range: 7mm to 12mm
- Max. Temperature: 260°C (insert material)
- Shell Material: Nylon66, locking, back, compressing, and retaining nuts

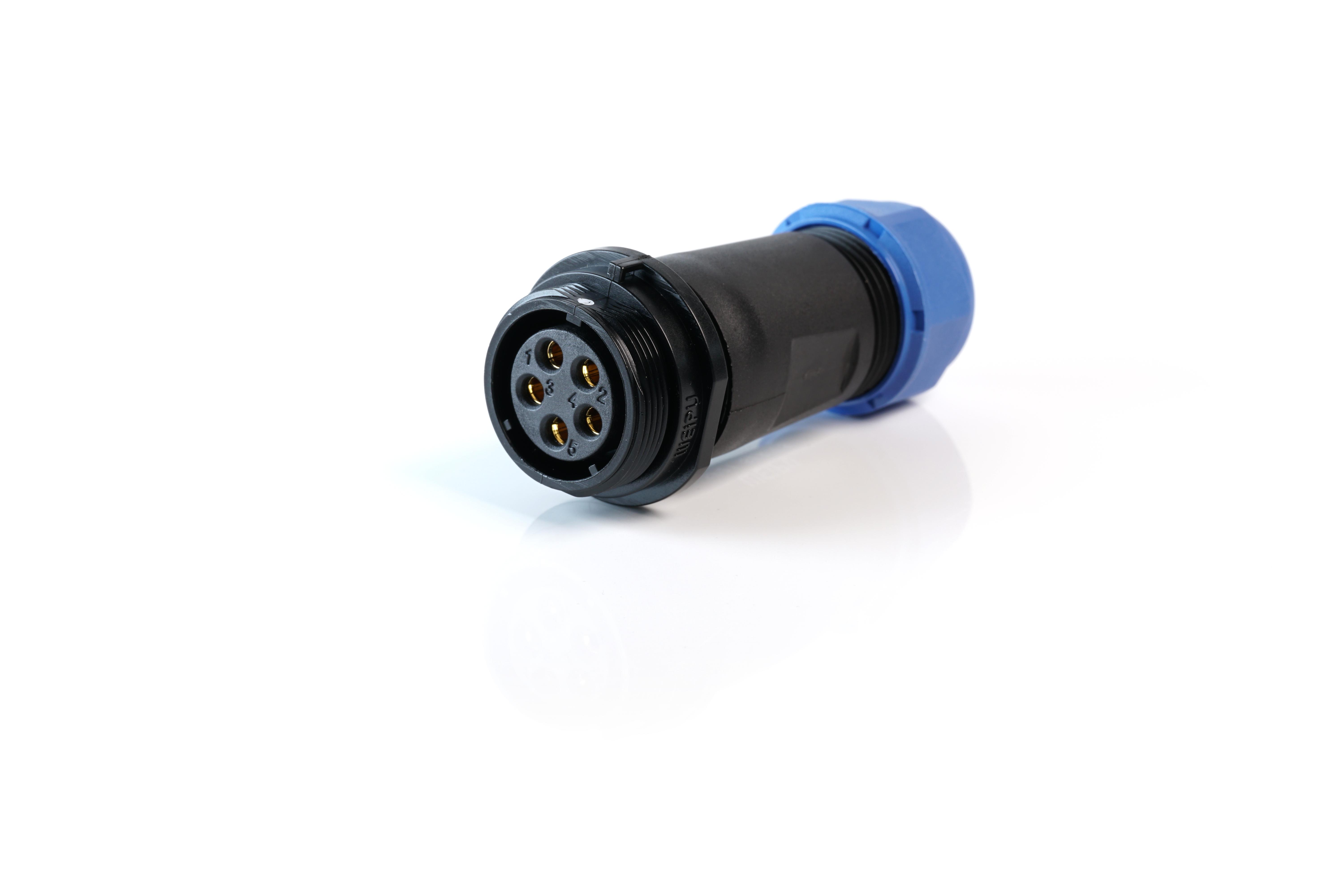

Buy the Buy Multicomp IP68 Connector Part Number MP002586 Online
Purchase the Multicomp IP68 connectors online for robust, weatherproof electrical connections suitable for outdoor, industrial, and automation applications. These connectors feature threaded coupling, multiple mounting options, and various contact configurations, ensuring secure and durable performance. With certifications for harsh conditions, they are ideal for applications such as process control, security systems, medical devices, and measurement equipment. Order now to ensure a reliable, weather-resistant connection in demanding working environments, backed by quality construction and easy installation.
Buy Multicomp IP68 connector MP002586 now and experience unmatched reliability and outdoor performance for industrial automation and harsh environments.
