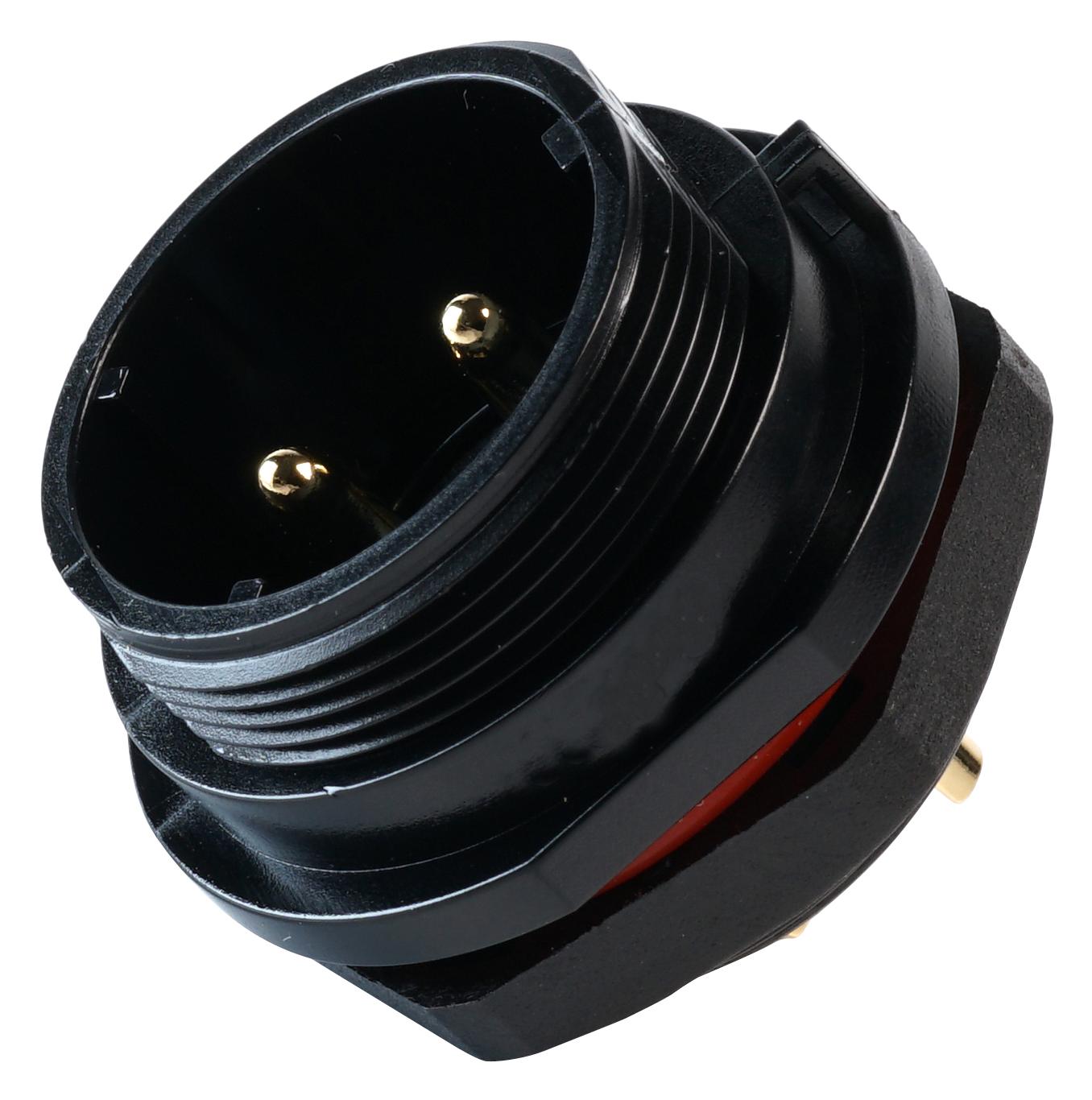

MULTICOMP-PRO MP002597 Industrial Circular Connector
The MP-T21 IP68 series connectors are rugged, weatherproof connectors designed for industrial applications. Featuring threaded coupling and high IP68 protection, these connectors are suitable for outdoor and harsh environments. They support various configurations, including cable mount, in-line, and panel mount, with options for solder or screw terminations. Available in 2 to 12 poles, with ratings up to 500V and currents up to 30A, they ensure reliable connections. Constructed with nylon66 shells, brass contacts with gold plating, and PPS inserts rated at 260°C, these connectors combine durability with ease of installation.
MULTICOMP-PRO MP002597 Industrial Circular Connector Specifications:
- Shell Material: Nylon66, lock nut, back shell, compressing nut, retaining nut
- Insert Material: PPS, max. temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000MQ
- Voltage Rating: up to 500V AC, 400V AC for some models
- Rated Current: up to 30A depending on contact configuration
- Contact Diameter: 1 – 3 mm depending on contact type
- Termination: Solder or screw, wire size 0.75-2.14 mm² (18–14 AWG)
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Coupling Method: Threaded
- Cable Outer Diameter Range: 7-12 mm
Buy the Multicomp Series MP002597 Industrial Circular Connector: Durable IP68 rated Connection
Order multicomp IP68 connectors online today and experience rugged durability, weather resistance, and versatile configurations suitable for industrial, outdoor, and harsh environment applications. Designed with high-quality nylon66 shells, brass contacts with gold plating, and PPS inserts rated at 260°C, these connectors ensure secure, reliable connections for your equipment. Available in multiple configurations with options for solder or screw terminations, these IP68-rated connectors are perfect for indoor and outdoor use, providing long-lasting performance in demanding conditions. Buy now for quick delivery and enhanced connectivity solutions.
Get multicomp IP68 connectors today—built for rugged outdoor industrial use and reliable performance under demanding conditions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002597?
You can click on the BUY or RFQ button to purchase MP002597 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002597?
You can download the MP002597 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002597?
MULTICOMP-PRO
