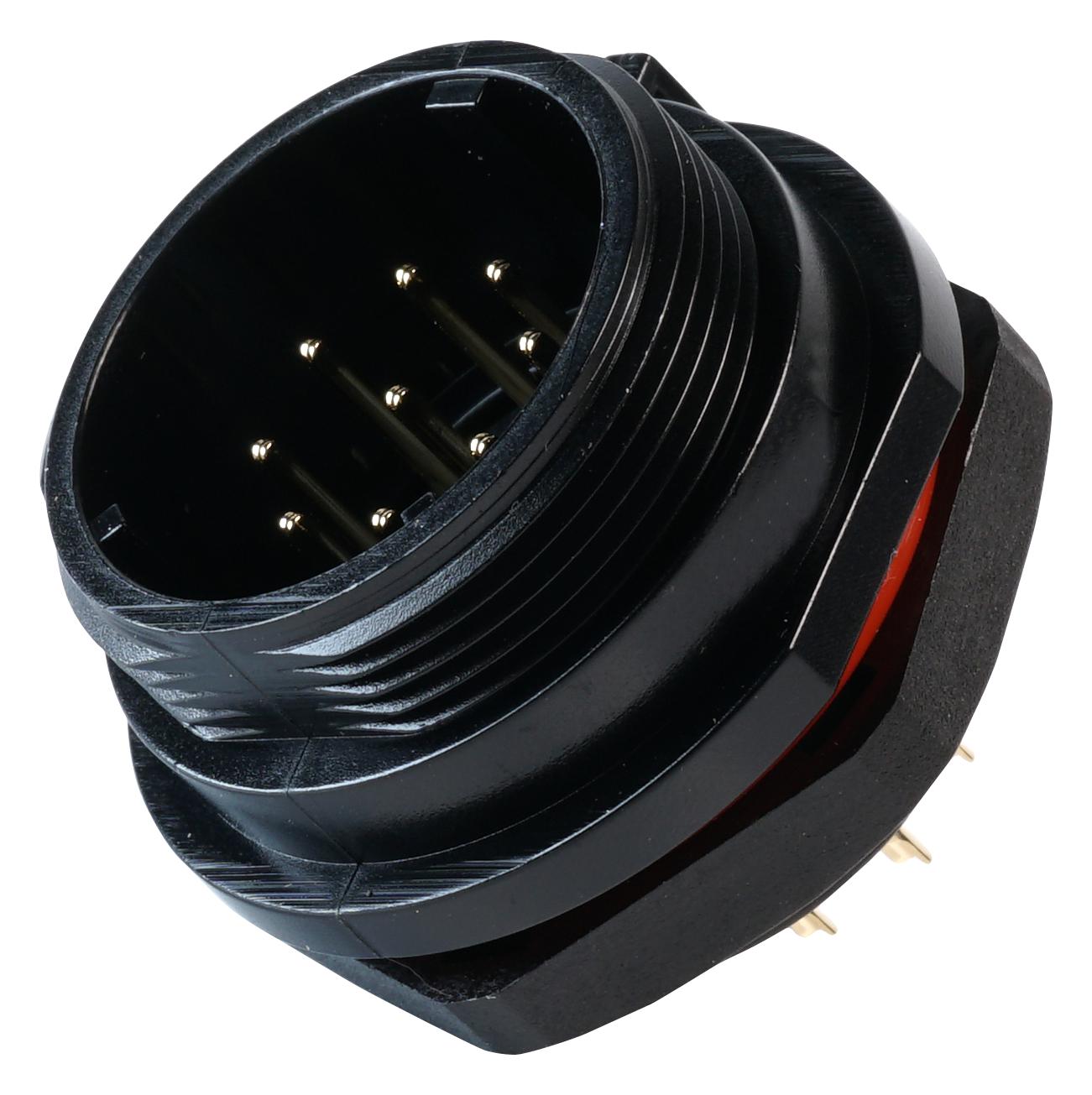

MULTICOMP PRO MP002606 Industrial Waterproof Connector
The MP-T21 IP68 series provides robust connectors with threaded coupling and weather resistance suitable for outdoor and industrial environments. Designed in various configurations including panel, cable, and inline mountings, these connectors support solder and screw terminations with options ranging from 2 to 12 poles. Manufactured with nylon66 shells, PPS inserts, and brass contacts with gold plating, they withstand temperatures from -40°C to +85°C and have an IP68 rating, ensuring excellent sealing and durability for applications in automation, security, and industrial automation sectors, with a protective IP68 cap available for increased environmental resistance.
MULTICOMP PRO MP002606 Industrial Waterproof Connector Specifications:
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Temperature Range: -40°C to +85°C
- IP Rating: IP68
- Coupling Type: Threaded
- Termination: Solder and screw options
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: Up to 30A depending on contact
- Rated Voltage: 400-500V
- Test Voltage: 1200-1500V
- Contact Resistance: 1-5mΩ
- Mating Cycle: 500
- Cable Outer Diameter Range: 7mm to 12mm
- Shielding: Weather-resistant with sealing features
- Additional Cap: IP68 dust and moisture cap available
- Dimensions: 21mm panel cutout, with detailed mounting sizes available
- RoHS Compliant
Buy the Multicomp Series IP68 Connector: MP002606
Secure your industrial and outdoor applications with the Multicomp Series IP68 Waterproof Connector MP002606. Designed for durability, it supports multiple configurations from 2 to 12 poles, featuring solder and screw termination options. Made with high-quality nylon66 shell, PPS inserts, and brass contacts with gold plating, it withstands temperatures from -40°C to +85°C and provides excellent sealing for harsh environments. Perfect for automation, security, medical, and test measurement needs, this connector ensures reliable performance and easy installation for your critical projects.
Order your Multicomp Series IP68 Connector MP002606 today and give your projects the dependable waterproof and industrial-grade reliability they deserve.
