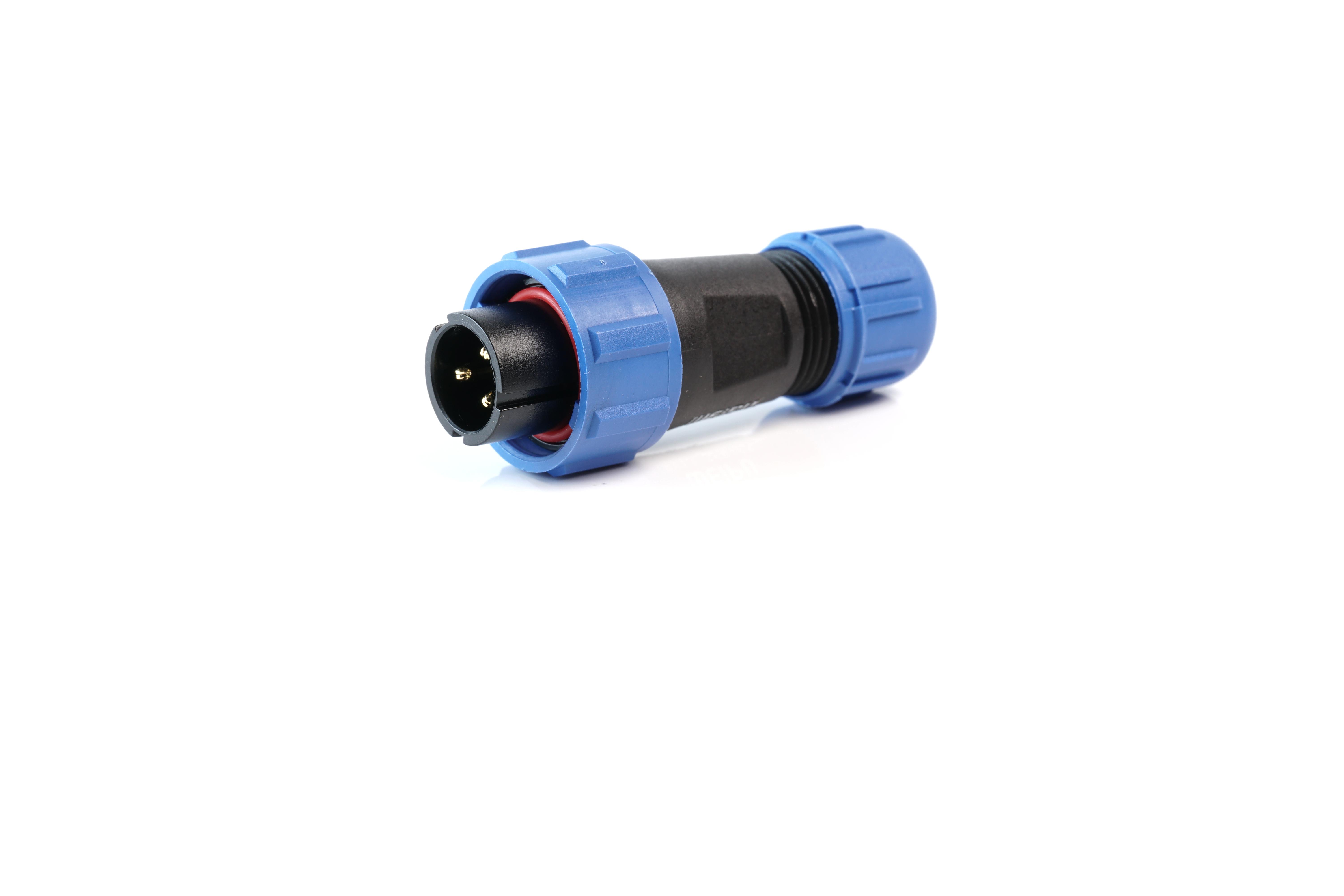

MULTICOMP PRO MP002622 industrial waterproof connector
The MP-T13 IP67 series offers durable, weather-resistant connectors with bayonet coupling, quick connection, and versatile mounting options like panel, cable, and inline configurations. Designed for outdoor and industrial use, these connectors meet IP67 standards for dust and water resistance, supporting a wide temperature range of -40°C to +80°C. They feature solder termination, brass contacts with gold plating for reliable conductivity, and support up to 7 poles with rated current up to 13A. An optional dust cap provides extra protection, making these connectors ideal for rugged environments needing secure, easy-to-mount connections.
MULTICOMP PRO MP002622 industrial waterproof connector Specifications:
- IP67 dust and water resistance
- Coupling: Bayonet
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Rated Current: 13A
- Rated Voltage: 250V AC
- Test Voltage: 1500V AC for 1 min.
- Contacts: Solder termination
- Number of Contacts: 2, 3, 4, 5, 7
- Contact Diameter: 1.6mm for 2 contacts, 1mm for 3-4 contacts, 1mm for 5 and 7 contacts
- Mating Cycle: 500
- Cable Outer Diameter Range: 4mm to 6.5mm / Smm to 8mm
- Dimensions: Suitable for 13mm panel cutouts
- Material: Brass contacts with gold plating, nylon shell
- Compatibility: Supports various mounting types including panel, cable, and inline
Buy the Universal IP67 Waterproof Connector – Reliable Industrial Connections for Applications
Order the MP-T13 IP67 waterproof connectors today and experience quick, secure connections that withstand harsh environments. Perfect for outdoor, industrial, and rugged applications, these connectors support multiple configurations including panel, cable, and inline mounting. Support up to 7 poles, rated for 13A and 250V, with high durability and IP67 protection. Add an extra layer of protection with the optional dust cap. Purchase online now for fast delivery and reliable performance in demanding conditions.
Buy the MP-T13 IP67 connectors now and ensure secure, weather-resistant connections for your industrial and outdoor projects.
