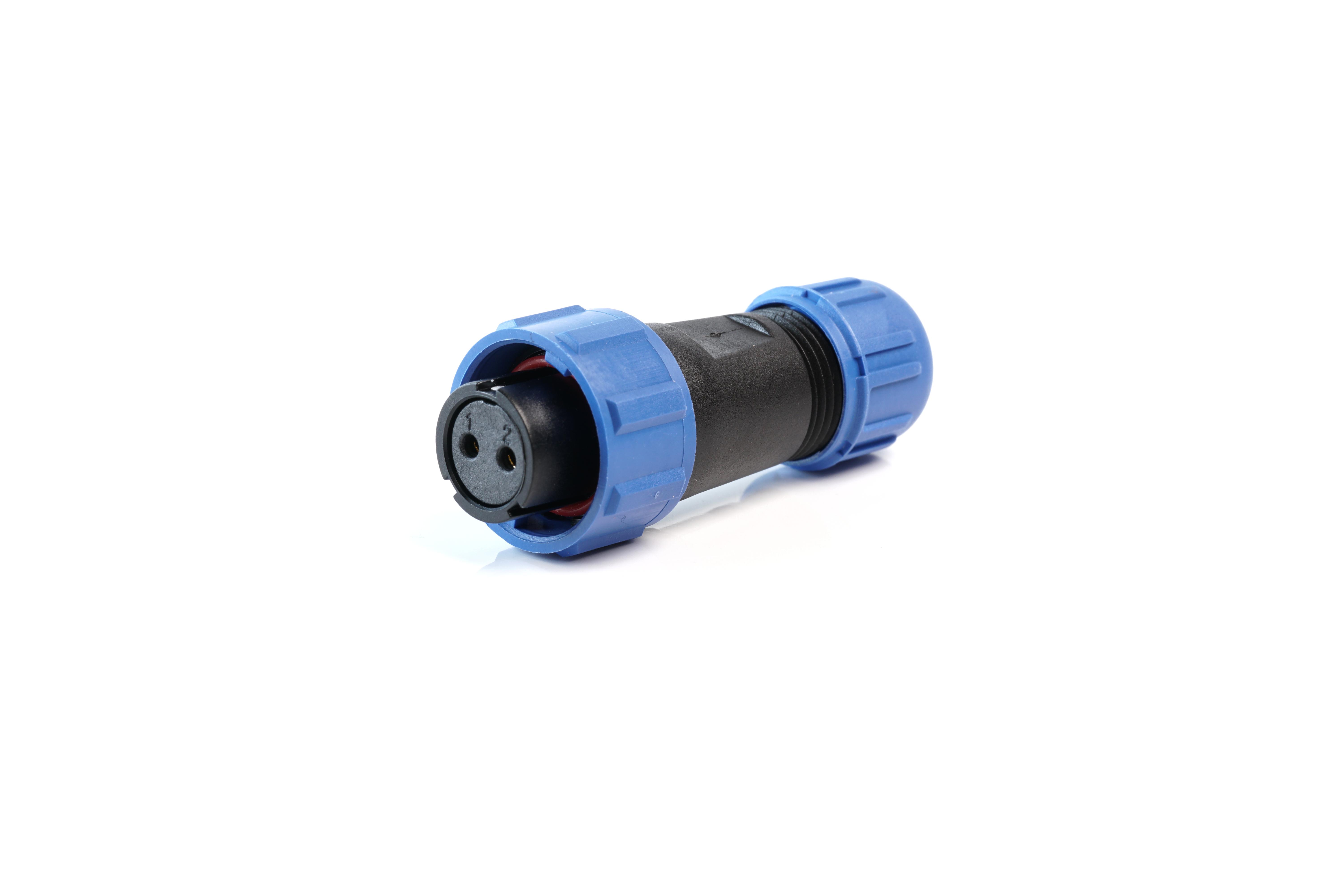

MULTICOMP PRO MP002627 Weatherproof Circular Connector
The MP-T13 IP67 series connectors offer rugged, weather-resistant solutions with bayonet coupling for quick, secure connections. Designed in various configurations including panel mount, cable mount, and inline versions, these connectors facilitate cable-to-panel and cable-to-cable connections. Rated at IP67 for protection against dust and water, they feature solder termination and are perfect for outdoor and indoor industrial applications such as automation, process control, medical devices, security, and testing environments. Available in 2, 3, 4, 5, and 7 pole options, with an IP67 protective cap to enhance environmental resistance.
MULTICOMP PRO MP002627 Weatherproof Circular Connector Specifications:
- IP Rating: IP67
- Coupling: Bayonet
- Material: Nylon66 shell, insert PPS, brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Contact Diameter: 1 mm to 1.6 mm
- Rated Current: 13A for 2-pole, 5A for 3- and 4-pole, 5A for 5- and 7-pole
- Rated Voltage: 250V for 2 and 3-pole, 200V for 4-pole, 180V for 5-pole, 125V for 7-pole
- Durability: 500 mating cycles
- Contact Resistance: 2.5 mΩ to 5 mΩ
- Mating Cycle Life: 500 cycles
- Connection Type: Solder
- Maximum Temperature: 260°C
Buy the Connector Series IP67 Weatherproof Bayonet Coupling: MP002627
Enhance your industrial setup with our IP67 weatherproof circular connectors designed for durability and quick bayonet coupling. Perfect for outdoor applications, these connectors ensure secure, weather-resistant connections in automation, medical, security, and testing environments. Available in multiple configurations with various pole options, they offer excellent electrical performance, a long mating cycle life of 500 cycles, and a temperature range from -40°C to +80°C. Plus, an IP67-rated protective cap keeps connections safe from dust and water ingress, ensuring reliable performance in challenging conditions.
Buy MP002627 IP67 weatherproof connectors now and experience unmatched durability, secure connections, and outdoor protection for industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002627?
You can click on the BUY or RFQ button to purchase MP002627 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002627?
You can download the MP002627 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002627?
MULTICOMP PRO
