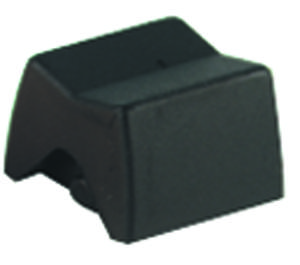

MULTICOMP PRO 3R63 Rocker Actuator
The multicomp rock actuator is a versatile, epoxy-sealed switch component designed for panel mounting. Suitable for various applications, it features a compact subminiature design with easy snap-in installation. Available in multiple colors including red, yellow, green, and blue, it has a contact rating of 5A at 28V DC or 115V AC, with an electrical life of 50,000 operations. The actuator measures approximately 11.68mm in width, 11.46mm in depth, and a maximum height of 8.9mm, operating reliably within -30°C to +85°C temperature range.
MULTICOMP PRO 3R63 Rocker Actuator Specifications:
- Use With: Rocker Switch Operator
- Colour: Red, Yellow, Green, Blue
- External Depth: 11.46 mm
- External Width: 11.68 mm
- Height Max: 8.9 mm
- Contact Rating: 5A at 28V DC or 115V AC
- Electrical Life: 50,000 operations
- Contact Resistance: 20mΩ at 4V DC
- Operating Temperature: -30°C to +85°C
- Dimensions: approx. 11.68mm x 11.46mm x 8.9mm
- Panel Mounting: Yes
- Material: Epoxy sealed switch bodies
- Color options: Red, Yellow, Green, Blue
- Subminiature size for compact designs
Buy the Buy multicomp Rocker Actuator Part Number 3R63 Online
Secure your multicomp Series3R63 Rocker Actuator now and benefit from fast, convenient online ordering. Designed for panel mounting, this epoxy-sealed switch offers 5A contact rating, multiple color options, and durable construction. Ideal for industrial control panels and equipment requiring reliable switching with a maximum height of 8.9mm, operating efficiently from -30°C to +85°C. Order today to improve your project's reliability with this compact, easy-to-install rocker switch suitable for a wide range of applications.
Order your multicomp Series3R63 Rocker Actuator today and enhance your control panels with reliable, durable switching performance.
