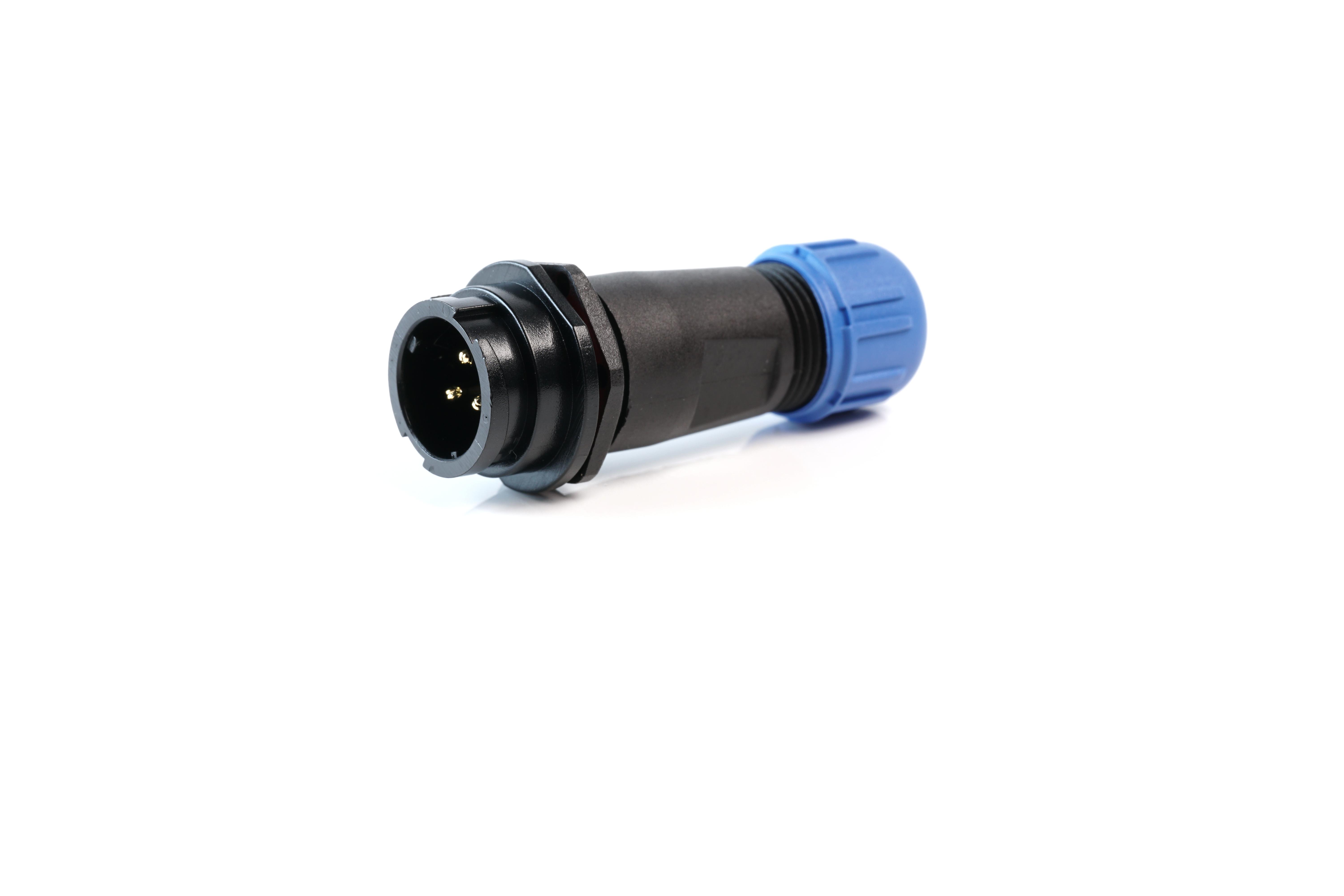

MULTICOMP PRO MP002632 IP67 Connector Series
The MP-T13 IP67 series features durable connectors with bayonet couplings for quick, secure connection and disconnection. These connectors are available in panel mount, cable mount, and in-line configurations, facilitating cable-to-panel or cable-to-cable applications. Designed for harsh environments, they offer weather resistance with an IP67 rating and include options with 13mm cut-out, solder termination, and multiple pole configurations (2, 3, 4, 5, and 7 poles). An IP67-rated cap provides extra protection. Ideal for automation, industrial, medical, security, and measurement applications, ensuring reliable performance outdoors or indoors.
MULTICOMP PRO MP002632 IP67 Connector Series Specifications:
- IP67 weather resistance rating
- Coupling: Bayonet
- Materials: Nylon66 shell, PPS insert, brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Rated Current: 13A (2 poles), 5A (3, 4, 5, 7 poles)
- Rated Voltage: up to 250V
- Contact Diameter: 1.6 mm for 2-pole, 1 mm for 3/4/5/7 poles
- Mating Cycle: 500
- Contact Resistance: 2.5 mΩ (2 poles), 5 mΩ (others)
- Solder Termination: yes
- Dimensions: Shell diameter varies (4mm to 8mm outer), cut-out 13mm
- Connector sets include plug and receptacle configurations
- Dust cap available for extra protection
- RoHS compliant
Buy the Innovative IP67 Connectors – Reliable Industrial Connectors for Industrial Applications
Experience reliable, weatherproof connectivity with the IP67 Connector Series designed for harsh environments. These quick-connect, durable connectors with bayonet couplings are ideal for automation, industrial, and outdoor applications. Available in various configurations—panel mount, cable mount, and inline—featuring solder termination, multiple pole options, and robust materials that withstand temperatures from -40°C to +80°C. Protect your investments with IP67 rated connectors and optional dust caps for added security. Order online now for fast delivery and professional-grade performance in your critical projects!
Order your Multicomp Pro Series MP002632 IP67 connectors today and ensure your projects have dependable weather-resistant connections for outdoor and industrial use.
