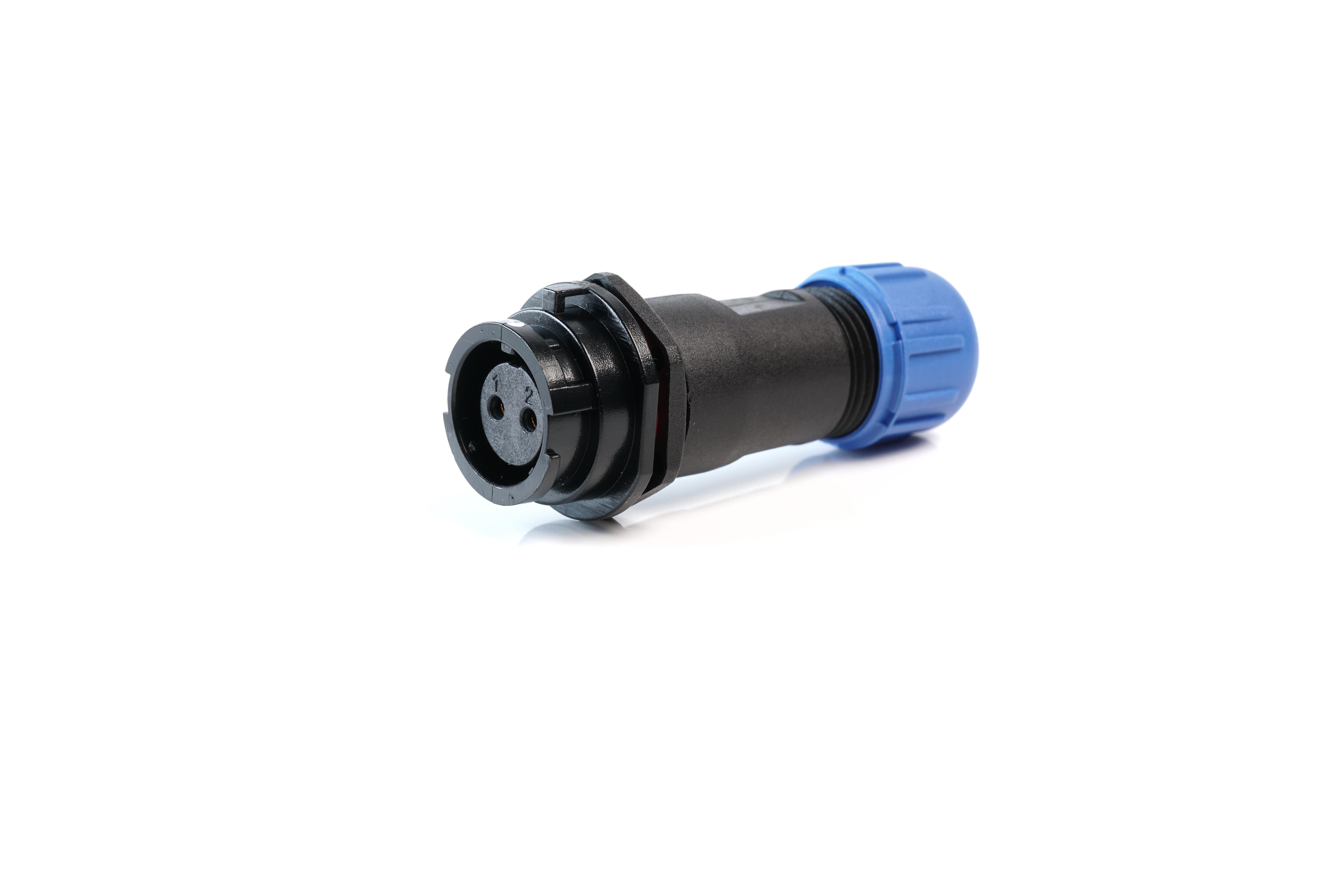

MULTICOMP PRO MP002636 Industrial Circular Connectors
The MP-T13 IP67 series connectors are rugged and weatherproof, designed for reliable industrial and outdoor applications. Featuring bayonet coupling for quick, secure connections, these connectors support cable, panel, and inline mounting configurations. Made with Nylon66 shells, PPS inserts, and brass contacts with gold plating, they withstand temperatures from -40°C to +80°C and offer IP67 sealing. Variants include 2, 3, 4, 5, and 7 pole options, solder termination, and compatibility with cable diameters from 4mm to 6.5mm. An IP67 dust cap is also available, making these connectors suitable for automation, control, medical, and industrial environments.
MULTICOMP PRO MP002636 Industrial Circular Connectors Specifications:
- Material: Nylon66 shell with fire resistance V-0
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Insulation Resistance: 2000 MΩ
- Rated Current: 13A (2-pin), 5A (3, 4, 5, 7-pin)
- Rated Voltage: Up to 250V
- Contact Diameter: 1.0mm to 1.6mm depending on pin count
- Cable Outer Diameter Range: 4mm to 6.5mm
- Number of Contacts: 2, 3, 4, 5, 7
- Mating Cycles: 500
- Compatible with cable sizes: 18 to 14 AWG
- Dimensions: Refer to technical drawing, suitable for panel cutouts for 13mm diameter
Buy the ACME MP002636 U+2013 Reliable Industrial Connectors for Automation
Enhance your projects with our durable IP67 circular connectors, designed for quick bayonet coupling and reliable weatherproof performance. Suitable for panel or cable mounting, these connectors feature brass contacts with gold plating for optimal conductivity and corrosion resistance. The series includes multiple configurations with 2, 3, 4, 5, and 7 contacts, all meeting industrial standards for temperature, IP sealing, and durability. Perfect for automation, control systems, outdoor equipment, and industrial environments, order online now to secure dependable connectivity for your application.
Order your ACME MP002636 series IP67 connectors today and ensure reliable connections for industrial automation and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002636?
You can click on the BUY or RFQ button to purchase MP002636 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002636?
You can download the MP002636 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002636?
MULTICOMP PRO
