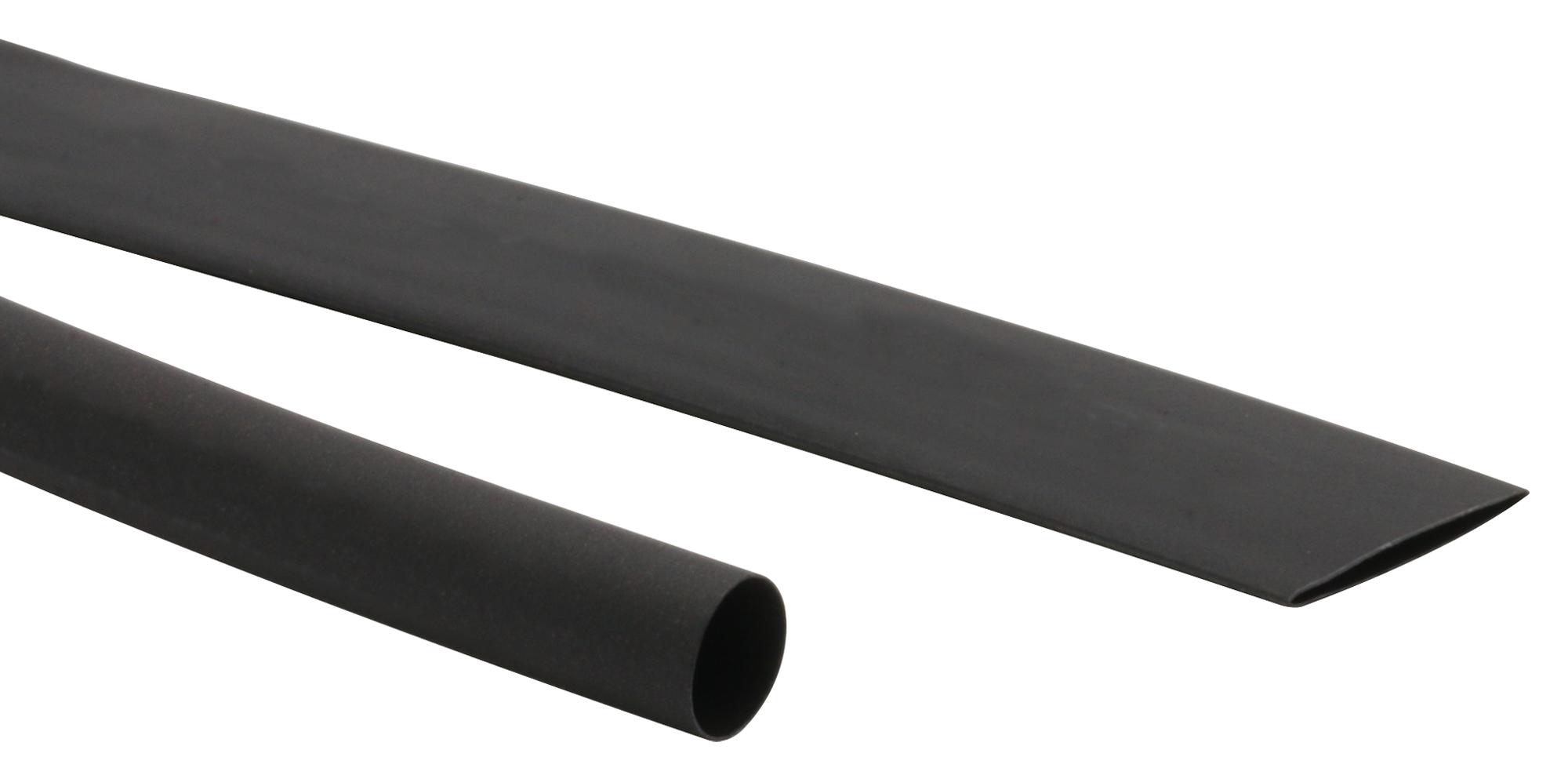

MULTICOMP-PRO PP001893 Heat Shrink Tubing
This heat shrink tubing offers a flexible, halogen-free polyolefin solution designed for rapid shrinking and space-saving applications. It features a low shrink temperature for quick installation and reduces the risk of damage to temperature-sensitive components. The ultra-thin wall design provides excellent insulation and environmental standards, meeting RoHS and Sony-SS-00259 compliance. It has a 2:1 shrink ratio, high dielectric strength of 215 kV/mm, and withstands heat aging up to 168 hours at 158°C without cracking or dripping, making it ideal for electrical and electronic insulation tasks.
MULTICOMP-PRO PP001893 Heat Shrink Tubing Specifications:
- Operating Temperature: 1-55°C to +125°C
- Minimum Shrink Temperature: 270°C
- Full recovery temperature: 125°C
- Shrink Ratio: 2:1
- Color: Black
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Volume Resistivity: 21x10^10 Ohm-cm
- Dielectric Strength: 215 kV/mm
- Heat Aging Tensile Strength: 27.3 MPa after 168 hours at 158°C
- Longitudinal Shrinkage: 45%
- Flammability: FMVSS302 Pass
- Copper Stability: Pass
- Part Number: PP001893
- Size: 3/4 inch (19 mm), Inner diameter after recovery 9 mm, Wall thickness approximately 0.42 mm
Buy the Buy FlexiPoly Heat Shrink Tubing Part Number PP001893 Online
Order the FlexiPoly heat shrink tubing PP001893 online today and benefit from fast delivery, superior electrical insulation, and reliable performance. This high-quality, ultra-thin wall, halogen-free tubing is perfect for space-constrained environments, offering excellent insulation, environmental compliance, and durability. Ideal for electronics, automotive, and industrial uses, this 3/4 inch tubing provides quick recovery and excellent dielectric properties, ensuring your electrical connections are protected and secure. Secure your supply now for optimal project performance.
Buy FlexiPoly heat shrink tubing PP001893 now and ensure superior insulation with space-saving, halogen-free performance for your electrical applications.
