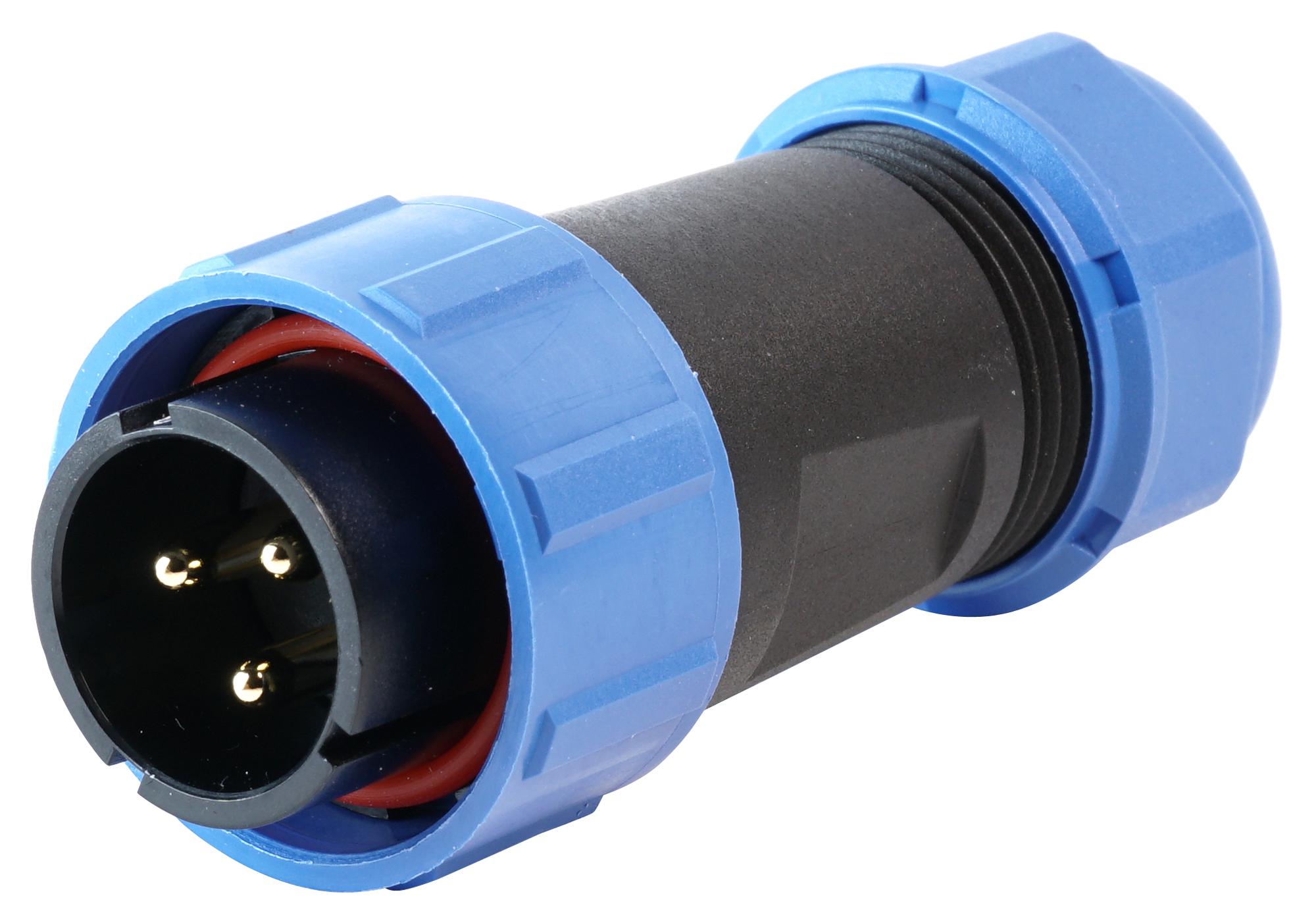

MULTICOMP-PRO MP002660 Weatherproof Connector
The MP-T21 IP67 series connectors are robust and weatherproof, designed for quick bayonet coupling in industrial environments. Suitable for indoor and outdoor use, these connectors offer panel, cable, and inline mounting options with IP67 protection, ensuring reliable connections in harsh conditions. They support solder and screw terminations, various pole configurations from 2 to 12, and include optional dust caps for protection. Crafted from durable nylon66 shells, with brass contacts gold-plated for excellent conductivity, these connectors meet high standards for durability and performance in automation and control applications.
MULTICOMP-PRO MP002660 Weatherproof Connector Specifications:
- Material: Nylon66 shell, Brass contacts with gold plating
- Protection Rating: IP67, weatherproof and dustproof
- Coupling: Bayonet type for quick and secure connection
- Mounting Options: Panel, cable, inline cable mount
- Shell Material: Nylon66, fire-resistant V-0 rated
- Insert Material: PPS, max temp 260°C
- Contact Termination: Solder and screw options
- Rated Current: 30 A for solder, 15 A, 5 A for screw
- Rated Voltage: 500 V AC, 400 V AC for some variants
- Test Voltage: 1500 V AC for 1 min.
- Contact Resistance: 1 mΩ for solder, 2.5-5 mΩ for screw
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12 poles
- Operating Temperature: -40°C to +80°C
- Mating Cycle: 500 times
- Insulation Resistance: 2000 MΩ
- Outer Diameter Range: Up to 12 mm
- Additional: Dust Cap available separately
- RoHS compliant
Buy the ACME MP002660 – Reliable Weatherproof Connectors for Industrial Applications
Enhance your industrial setup with the durable and weatherproof connector MP002660. Featuring IP67 rating, multiple mounting options, and versatile pole configurations, this connector is perfect for outdoor and harsh environments. Crafted from high-quality nylon66 shells and brass contacts, it provides reliable electrical connections with gold plating for superior conductivity. The connector supports solder and screw terminations, ensuring flexible installation. With a maximum operating temperature of 80°C and a protective dust cap, it’s ideal for automation, control systems, and outdoor electrical setups. Order online now for fast delivery and trusted performance.
Order your ACME series MP002660 IP67 connectors today and ensure secure, weatherproof connections for your industrial projects with dependable durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002660?
You can click on the BUY or RFQ button to purchase MP002660 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002660?
You can download the MP002660 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002660?
MULTICOMP-PRO
