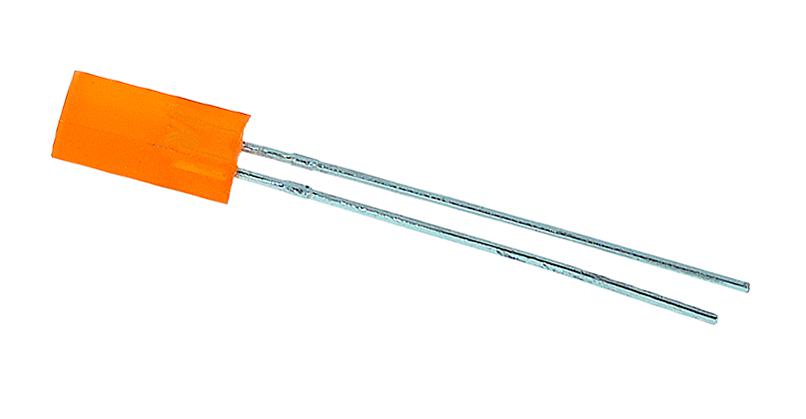

MULTICOMP PRO MCL453BD Rectangular Amber LED
The rectangular amber LED measures 2mm by 5mm and features a diffused lens for uniform light distribution. It operates with a forward voltage of approximately 1.7V to 2.6V at 20mA and exhibits a luminous intensity of around 3.6mcd with a viewing angle of 120°. Its peak wavelength is 610nm, and it is RoHS compliant, making it suitable for environmentally conscious applications. The LED's operating temperature ranges from -40°C to 85°C, withstanding reflow soldering at 260°C for 5 seconds. It is ideal for indicator lighting, display segments, and various illumination tasks in electronic and industrial projects.
MULTICOMP PRO MCL453BD Rectangular Amber LED Specifications:
- Dimensions: 2mm x 5mm (millimeters), 0.079 inches x 0.197 inches
- Lens Color: Amber Diffused
- Emitted Color: Amber (GaAsP on GaP)
- Peak Wavelength: 610nm
- Viewing Angle: 120 degrees
- Luminous Intensity: 3.6mcd
- Forward Voltage: 1.7V to 2.6V at 20mA
- Forward Current: 20mA recommended
- Maximum Reverse Voltage: 5V
- Reverse Current: 10µA at 5V
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature: 260°C for 5 seconds from body
- RoHS compliant
Buy the Multicomp Series Rectangular Amber LED: MCL453BD
Purchase the rectangular amber LED online today—designed for reliable indicator and display applications. Measuring 2mm by 5mm with a diffused lens, it offers a peak wavelength of 610nm and a 120° viewing angle. Its high luminous intensity of 3.6mcd ensures clear visibility. Suitable for ambient temperatures from -40°C to 85°C, it features a forward voltage between 1.7V and 2.6V at 20mA. Ideal for electronic and industrial uses, this RoHS-compliant LED guarantees quality and durability for your projects.
Get Multicomp Series MCL453BD today—built for precise illumination and long-lasting durability in electronic indicators and displays.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL453BD?
You can click on the BUY or RFQ button to purchase MCL453BD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL453BD?
You can download the MCL453BD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL453BD?
MULTICOMP PRO
