MULTICOMP PRO MP002675 industrial connector

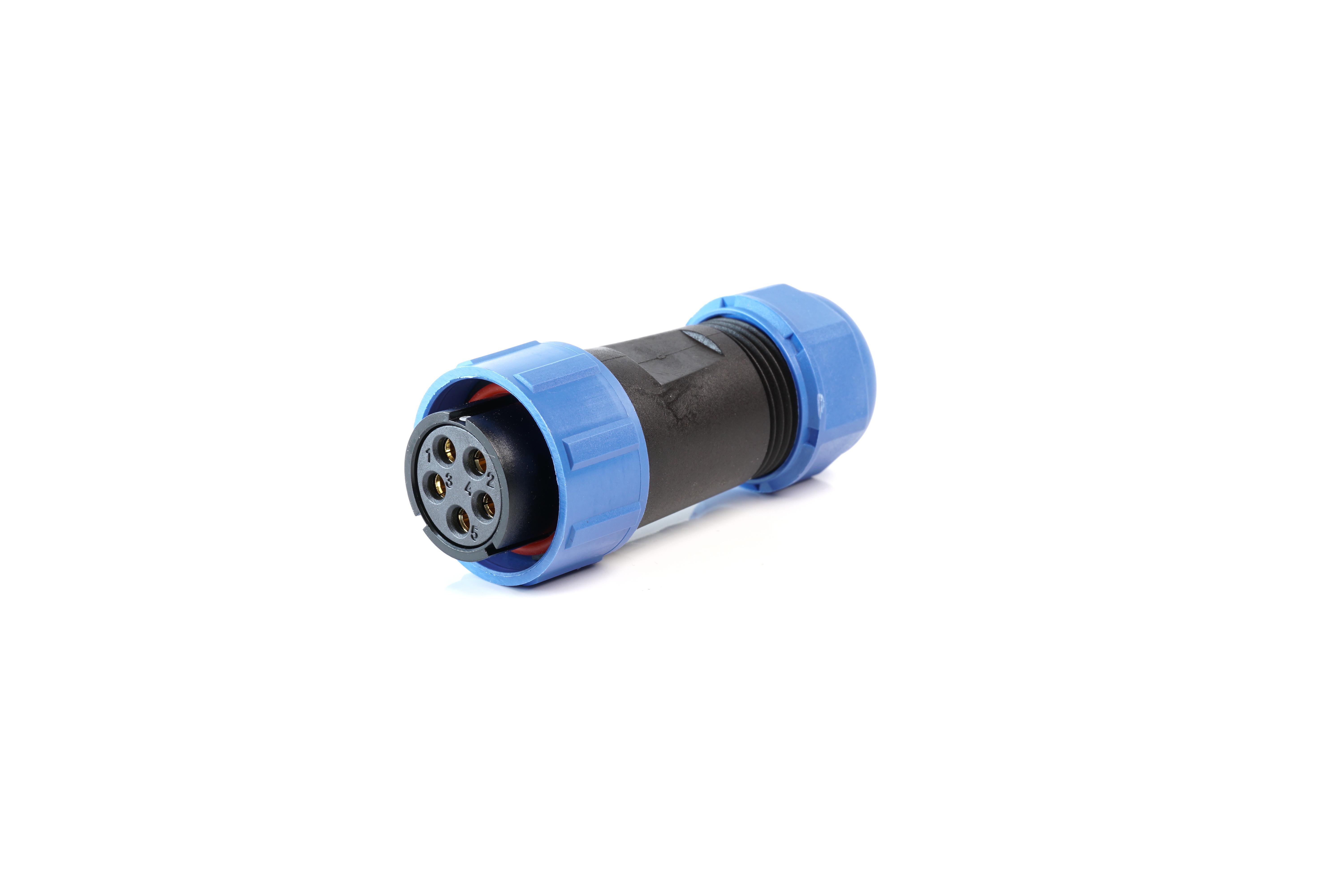

The MP-T21 IP67 series connectors are robust and weatherproof, designed for quick connection with bayonet coupling. They support panel, cable, and in-line mounting, fitting a 21mm cut-out. Suitable for indoor and outdoor environments, these connectors feature solder and screw termination options, with configuration for 2, 3, 4, 5, 7, 9, or 12 poles. They are rated IP67 for dust and water resistance, with an IP67 cap for extra sealing. Applications include automation, process control, industrial equipment, and security systems, ensuring reliable performance in harsh conditions.
MULTICOMP PRO MP002675 industrial connector Specifications:
- Material and Shell: Nylon66, PC insert housing, brass contacts with gold plating
- Ingress Protection: IP67
- Coupling: Bayonet
- Mounting: Panel, cable, in-line cable
- Cable Outer Diameter Range: up to 12mm
- Number of Poles: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder or screw
- Rated Current: 15-30A depending on configuration
- Rated Voltage: 400-500V AC
- Test Voltage: 1500V AC for 1 minute
- Contact Resistance: 1-5mΩ
- Operational Temperature Range: -40°C to +80°C
- Number of Cycles: 500
- RoHS Compliant
- Additional features: weather-resistant cap, quick disconnect bayonet coupling
Buy the Multicomp IP67 Connector – Reliable Industrial Connectors for Robust Applications
Secure your industrial and outdoor applications with our IP67-rated connector series. Designed for durability and rapid connection, these connectors feature multiple mounting options and high current capacity. Perfect for automation, security, and control systems, they deliver reliable sealing against dust and water, with quick bayonet coupling for easy installation. Available in various configurations, these connectors are RoHS compliant and withstand extreme temperatures, ensuring long-lasting performance in harsh environments. Get your IP67 waterproof connectors today for secure, reliable connections in challenging settings.
Order your multicomp series MP002675 IP67 connector today and ensure your industrial projects are protected with dependable sealing and quick connection features.
