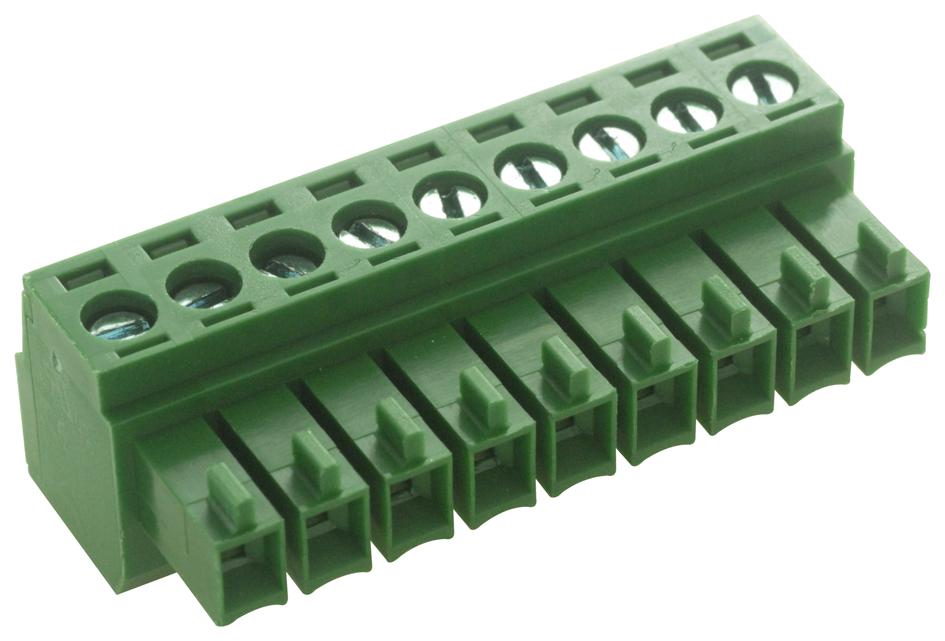

MULTICOMP PRO MC42035009 Pluggable Terminal Block
The pluggable terminal block from Multicomp Pro offers reliable electrical connections with a rated voltage of AC 300V and a current capacity of 210A. Constructed with high-quality polyamide66 housing rated UL94V-0, it features brass Ni plated cage clamps and phosphor bronze, tin-plated contacts, ensuring durability and corrosion resistance. Suitable for wire sizes from 26 AWG to 16 AWG, it operates temperature ranges from -40°C to +105°C. The terminals include M2.0 steel, Ni plated screws and come in various pin configurations, providing flexible and safe connectivity for industrial wiring applications.
MULTICOMP PRO MC42035009 Pluggable Terminal Block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 210A
- Wire Size: 26 AWG to 16 AWG
- Housing Material: Polyamide66 (UL94V-0)
- Cage Clamp: Brass, Ni Plated
- Contact Material: Phosphor bronze, Tin Plated
- Screw Size: M2.0, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- Torque: 3.0 Ib-inch
- Dimensions vary depending on the pin configuration, with lengths ranging from approximately 7.8 mm to 56.8 mm
Buy the Multicomp Pro MC42035009 – Reliable Terminal Block for Industrial Applications
Enhance your electrical systems with the reliable and high-capacity pluggable terminal block from Multicomp Pro. Designed with UL94V-0 rated polyamide housing, it supports wire sizes from 26 to 16 AWG and withstands operating temperatures from -40°C to +105°C. Featuring brass nickel-plated cage clamps and phosphor bronze contacts, it provides secure, corrosion-resistant connections suitable for industrial environments. Its flexible pin configurations allow for customizable use, making this component ideal for control panels, automation, and wiring projects requiring high current capacity and safety.
Order your Multicomp Pro MC42035009 pluggable terminal block today and ensure secure, versatile wiring for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC42035009?
You can click on the BUY or RFQ button to purchase MC42035009 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC42035009?
You can download the MC42035009 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC42035009?
MULTICOMP PRO
