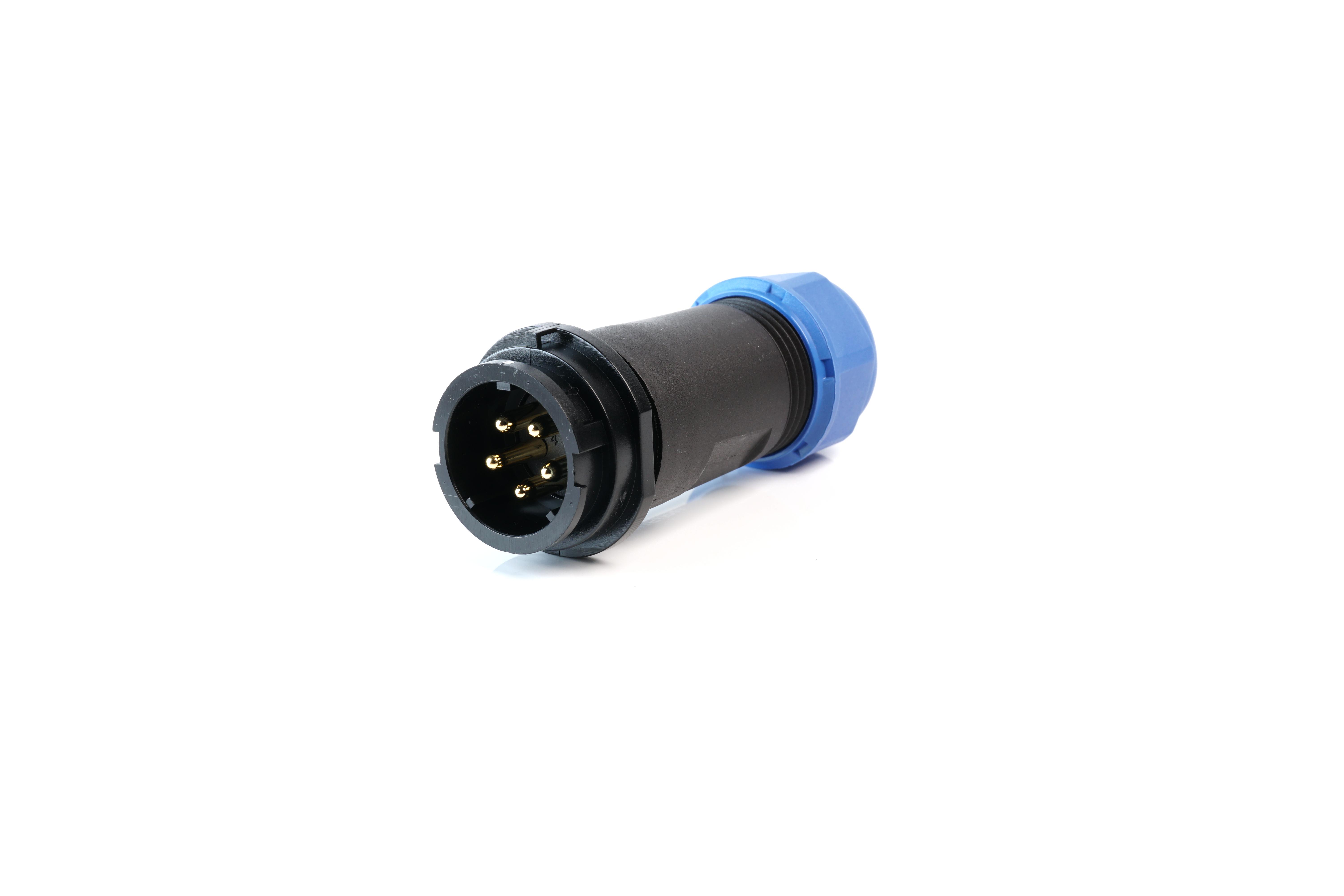

MULTICOMP PRO MP002685 IP67 Connectors
The MP-T21 IP67 series is a durable range of connectors featuring bayonet coupling for quick and secure connection and disconnection. These weatherproof connectors support various configurations, including panel mount, cable mount, and inline options, enabling cable-to-panel and cable-to-cable connections. With an IP67 rating, they are suitable for indoor and outdoor use in automation, medical, security, and industrial applications. The series offers solder and screw termination options, and configurations range from 2 to 12 poles, with an optional seal-cap for enhanced protection. Ideal for harsh environments and reliable performance.
MULTICOMP PRO MP002685 IP67 Connectors Specifications:
- IP Rating: IP67
- Coupling Method: Bayonet
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder and Screw
- Temperature Range: -40°C to +80°C
- Contact Resistance: 1 mΩ
- Rated Current: 30 A for 2-4 poles, 15 A for 5 poles, 5 A for 7-12 poles
- Rated Voltage: 500 V AC for 2-4 poles, 400–500 V for others
- Test Voltage: 1500 V AC, 1 min.
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Mating Cycles: 500
- Cable Diameter Range: Up to 12 mm
- Sealing: Optional IP67-rated cap available
- Applicable for industrial automation, medical, security, test & measurement, and outdoor applications
Buy the Multicomp Series IP67 Connectors: MP002685
Purchase the Multicomp IP67 connectors online today and enjoy reliable, weatherproof connections suitable for outdoor and indoor industrial, medical, security, and automation setups. Designed with robust bayonet coupling and available in multiple configurations including panel, cable, and inline mount, these connectors support solder and screw terminations. They ensure secure, durable connections in demanding environments with an IP67 rating, supporting up to 12 poles and offering optional sealing caps for added protection. Order now for quick delivery and trusted performance in challenging conditions.
Buy Multicomp MP002685 IP67 connectors now and experience unmatched reliability and performance in harsh environments.
