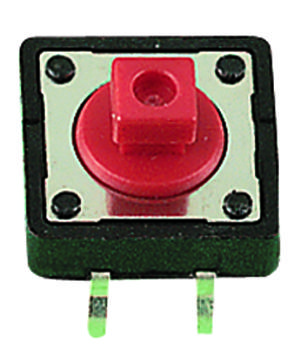

MULTICOMP PRO MCDTS21R Tactile Switch
This high-reliability tactile switch from Multicomp Pro features a compact 12mm x 12mm footprint, with a long operating life exceeding 500,000 cycles. It offers a precise click feel with positive tactile feedback, ideal for high-density mounting in electronic devices. Made of stainless steel, nylon thermoplastic, and phosphor bronze with silver cladding, the switch withstands temperatures from -25°C to +70°C and vibration and shock testing for durability. Suitable for applications requiring 50mA, 12V DC operation, with wave and hand soldering options for easy assembly.
MULTICOMP PRO MCDTS21R Tactile Switch Specifications:
- Materials: Cover stainless steel, base nylon thermoplastic, contact disc phosphor bronze with silver cladding, terminal brass with silver cladding, cap thermoplastic ABS.
- Operation Force: 160 +50gf (brown), 260 +50gf (red), 100 +50gf (black), 350gf (salone).
- Stroke: 0.35 +/-0.1mm (12 x 12) model, 0.25 +/-0.2mm (6 x 6) model.
- Operating Temperature: -25°C to +70°C. Storage Temperature: -30°C to +80°C.
- Electrical Life: 50,000 to 500,000 cycles depending on force. Current Rating: 50mA, 12V DC.
- Contact Resistance: >100mΩ. Insulation Resistance: 10MΩ@500V DC. Dielectric Strength: 250V AC/1 min.
- Soldering: Wave at max 260°C for 5 seconds, Hand at 320°C for 2 seconds. PCB hole Dia: 21 ±0.05mm.
- Vibration & Shock: MIL-STD-202F tested for durability.
Buy the Multicomp Series MCDTS 12mm Tactile Switch: MCDTS21R
Order the Multicomp Series MCDTS tactile switch today and ensure your electronic devices benefit from long-lasting performance. Designed for high reliability, this compact switch offers positive tactile feedback, a long cycle life, and easy soldering options suitable for high-density mounting. With robust construction and tested durability under vibration and shock standards, it’s an ideal choice for professional electronics assembly. Secure your supply now and experience seamless soldering and consistent operation in your projects.
Get Multicomp Series MCDTS 12mm tactile switch today—built for durability and reliable performance in high-density electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDTS21R?
You can click on the BUY or RFQ button to purchase MCDTS21R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDTS21R?
You can download the MCDTS21R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDTS21R?
MULTICOMP PRO
