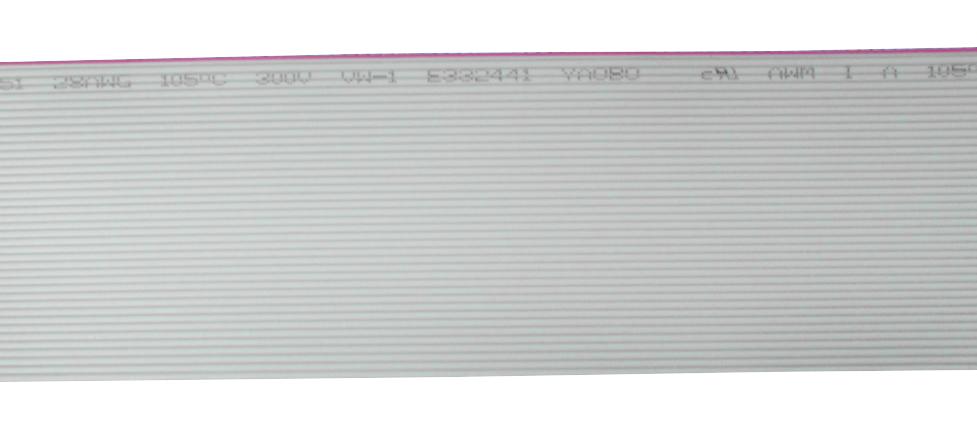

MULTICOMP PRO R2651DTSY64SC85 Ribbon Cable
This high-quality grey ribbon cable features 28 AWG tinned copper conductors with a 1.27mm pitch, suitable for internal wiring of appliances and electronic equipment. It is PVC insulated, rated at 105°C and 300V, ensuring durability and safety in various applications. The cable has multiple core options, from 6 to 64 cores, with lengths of 30.5 meters. Its construction provides excellent electrical properties, including low resistance and high tensile strength, making it ideal for reliable, compact electronic connections and appliances requiring efficient internal wiring.
MULTICOMP PRO R2651DTSY64SC85 Ribbon Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.38 mm
- Insulation Material: PVC
- Insulation Thickness: 0.26 mm
- Temperature Rating: 105°C
- Rated Voltage: 300V
- Tensile Strength: Unaged 1500 PSI, Aged 1290 PSI (85%)
- Voltage-Withstand: 2500V/1 Minute
- Isolation Resistance Min: 100 MΩ/kM 20°C
- Max Conductor Resistance: 237 Ω/kM 20°C
- Pitch: 1.27 mm
- Core Options: 6, 10, 14, 16, 20, 26, 40, 50, 64 cores
- Cable Length: 30.5 meters
- Application: Internal wiring of appliances and electronic equipment
- Compliance: UL758, UL1581, C22.2, RoHS
Buy the Grey Ribbon Cable Series Pro-POWER: R2651DTSY64SC85
Enhance your electronic projects with our high-quality grey ribbon cable, featuring 28 AWG conductors and a 1.27mm pitch for efficient internal wiring. Available in multiple core options up to 64 cores, it guarantees excellent electrical performance, flexibility, and durability. Insulated with 105°C PVC and rated at 300V, this cable ensures safety and long-term reliability. Ideal for appliances and electronic devices requiring compact, dependable wiring solutions. Purchase online today for superior quality and peace of mind in your electronic assembly needs.
Get Pro-POWER R2651DTSY64SC85 today—built for reliable electronic connections and long-lasting durability.
