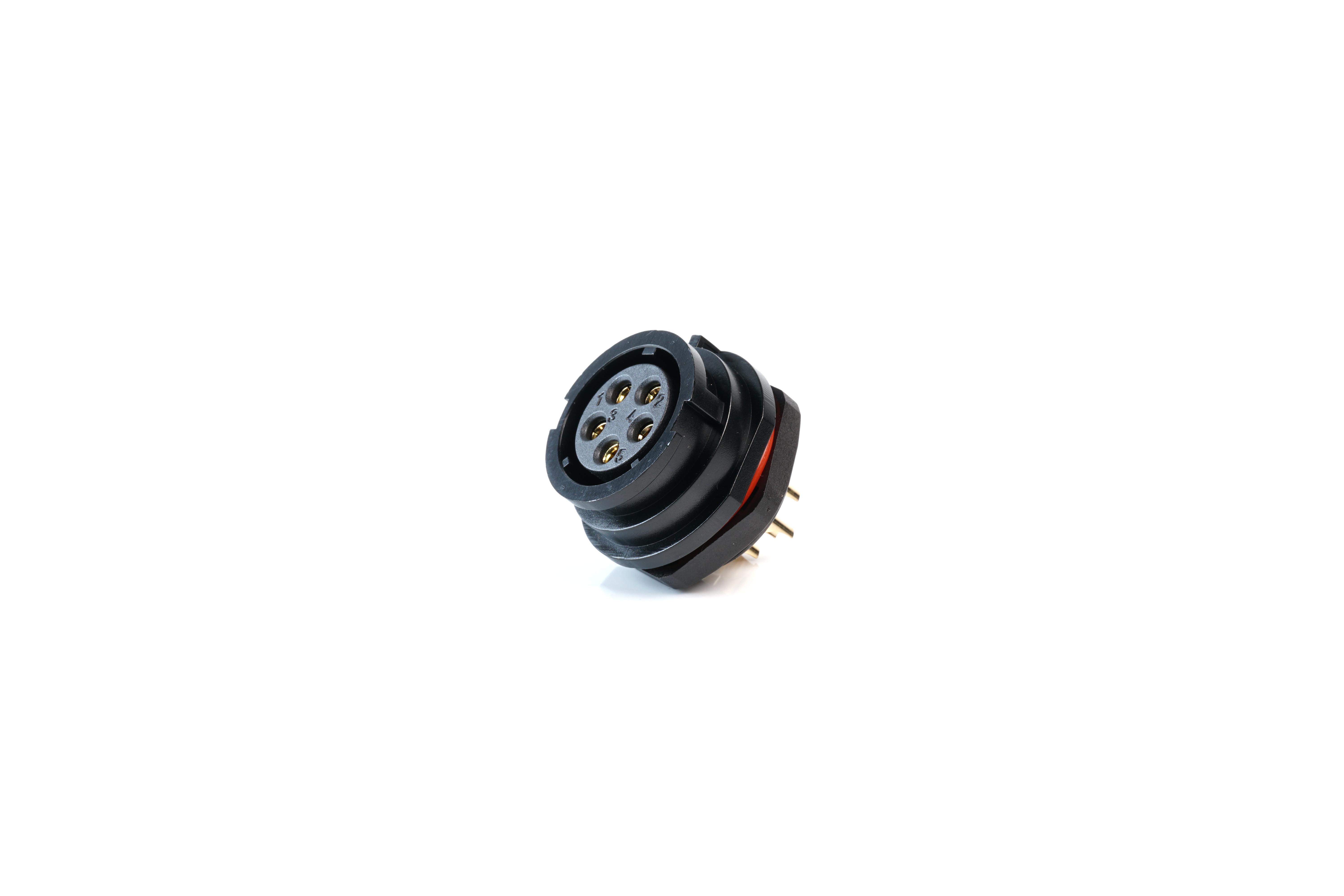

MULTICOMP PRO MP002725 industrial connector
The MP-T21 IP67 Series connectors are durable, weather-sealed components with bayonet coupling for quick, reliable connection in harsh environments. Suitable for industrial, automation, medical, security, and test applications, these connectors feature versatile configurations, including cable, panel, and in-line mountings. They support solder and screw terminations and accommodate multiple pole counts from 2 to 12. With an IP67 rating, they resist dust and water ingress, ensuring reliable performance outdoors and indoors. An optional dust cap enhances sealing, making these excellent for automation, process control, and equipment requiring secure, durable connections.
MULTICOMP PRO MP002725 industrial connector Specifications:
- Material: Nylon66 shell, PPS insert, brass with gold plating contacts
- Fire Resistance: V-0
- Ingress Protection: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Diameter: 1-3 mm
- Rated Current: 5-30 A
- Rated Voltage: 400-500 V
- Test Voltage: 1200-1500 V
- Contact Resistance: 1-5 mΩ
- Termination: Solder or screw
- Wire Range for Solder: 0.75/18 mm²
- Wire Range for Screw: 1.5/15 mm²
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Coupling: Bayonet
- Outer Diameter Range: up to 12 mm
- Compatibility: Suitable for automation, industrial automation, medical, security systems, testing equipment
Buy the Multicomp IP67 – Reliable Industrial Connectors for Automation
Get your multicomp IP67 series connectors today online and experience reliable, weatherproof connections designed for tough environments. With versatile configurations, including panel, cable, and inline mountings, these connectors support multiple poles and termination methods like solder and screw. Their IP67 sealing ensures protection against dust and water, ideal for automation, medical devices, security systems, and industrial automation projects. Order now and benefit from fast shipping, OEM quality, and excellent performance in any outdoor or indoor harsh conditions.
Order your multicomp IP67 series MP002725 today and secure robust, weather-proof connections for demanding industrial applications.
