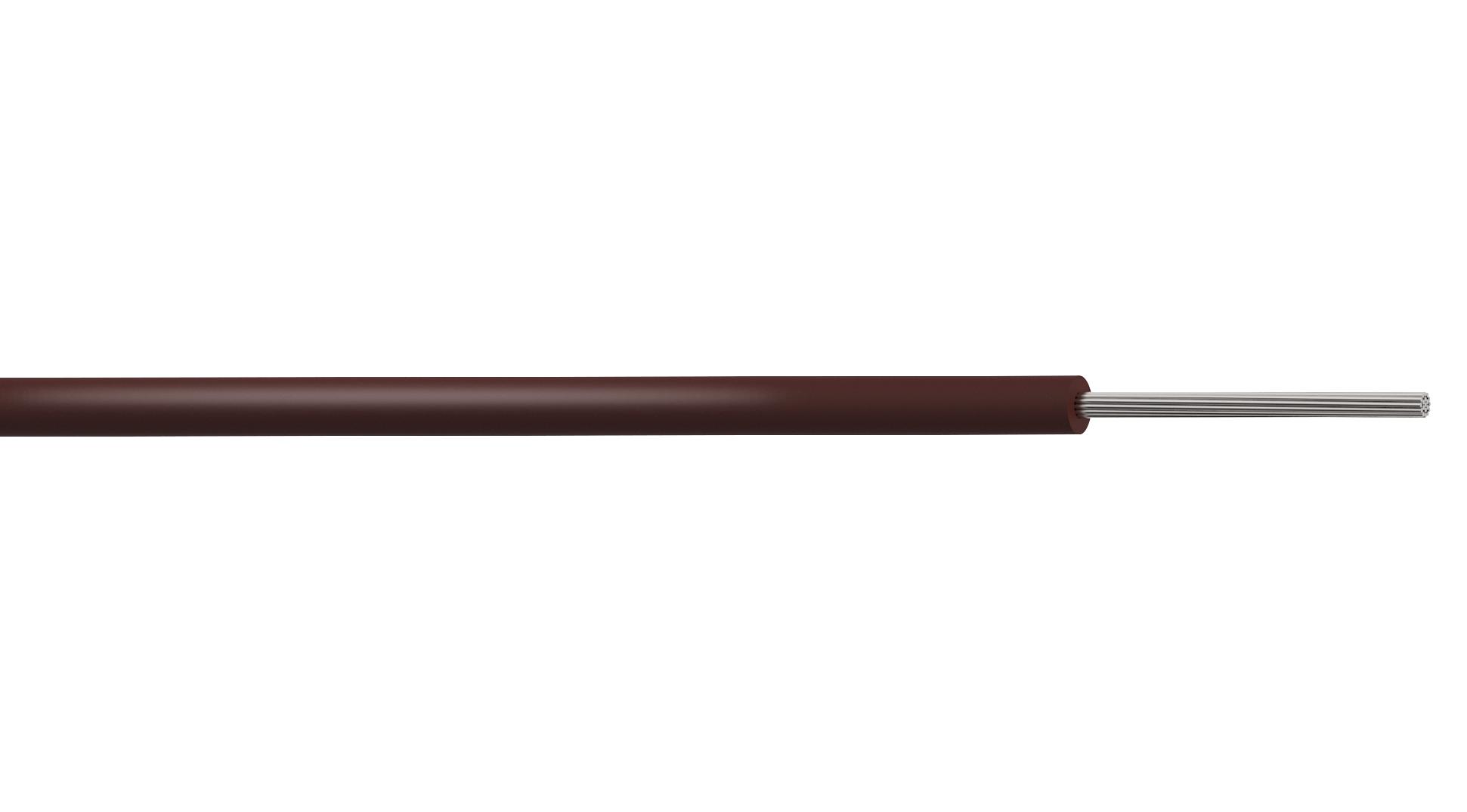

MULTICOMP-PRO PP001081 High Temperature Silicone Wire
High temperature silicone insulated wire designed for environments demanding sustained heat resistance up to 180°C and capable of functioning at temperatures as low as -60°C. This flexible, Class 5 tinned copper conductor with silicone rubber insulation is suitable for power plants, industrial processing, refrigeration, aerospace, and shipbuilding applications. It features a burn-resistant, low smoke halogen-free composition with multiple colors for easy identification, and a minimum bending radius of 4 times the overall diameter ensures durability in complex wiring configurations.
MULTICOMP-PRO PP001081 High Temperature Silicone Wire Specifications:
- Conductor: Class 5 flexible tinned copper according to BS EN 60228
- Insulation Material: Silicone rubber
- Voltage Rating: 300/500V for 0.25mm² to 2.5mm²
- Temperature Rating: -60°C to +180°C
- Minimum Bending Radius: 4 x overall diameter
- Color Options: Blue, Brown, Green/Yellow, Black, Red, White, Grey, Purple, Yellow
- Nominal Cross Sectional Area: 0.25mm² to 2.5mm²
- Nominal Overall Diameter: 1.8mm (0.25mm²), 3.5mm (1mm), 4.5mm (1.5mm)
- Weight: Ranges from 7 kg/km to 34 kg/km depending on size
- Operating Temperature: Up to 180°C
- Resistance at 20°C varies from 8.21Ω to 86Ω depending on cross-section
Buy the Multicomp Series High Temperature Silicone Wire: PP001081
Order the High Temperature Silicone Wire today to experience reliable performance in extreme heat conditions up to 180°C. Perfect for industrial, aerospace, and shipbuilding applications, this flexible silicone-insulated wire features a tinned copper conductor and vibrant color options for easy identification. Its robust insulation ensures safety and durability in demanding environments, while the low smoke, halogen-free design minimizes hazards. Purchase online now and ensure your projects are equipped with high-quality, heat-resistant wiring designed to last.
Get Multicomp Series High Temperature Silicone Wire PP001081 today—built for high heat environments with flexible silicone insulation and durable copper conductors.
