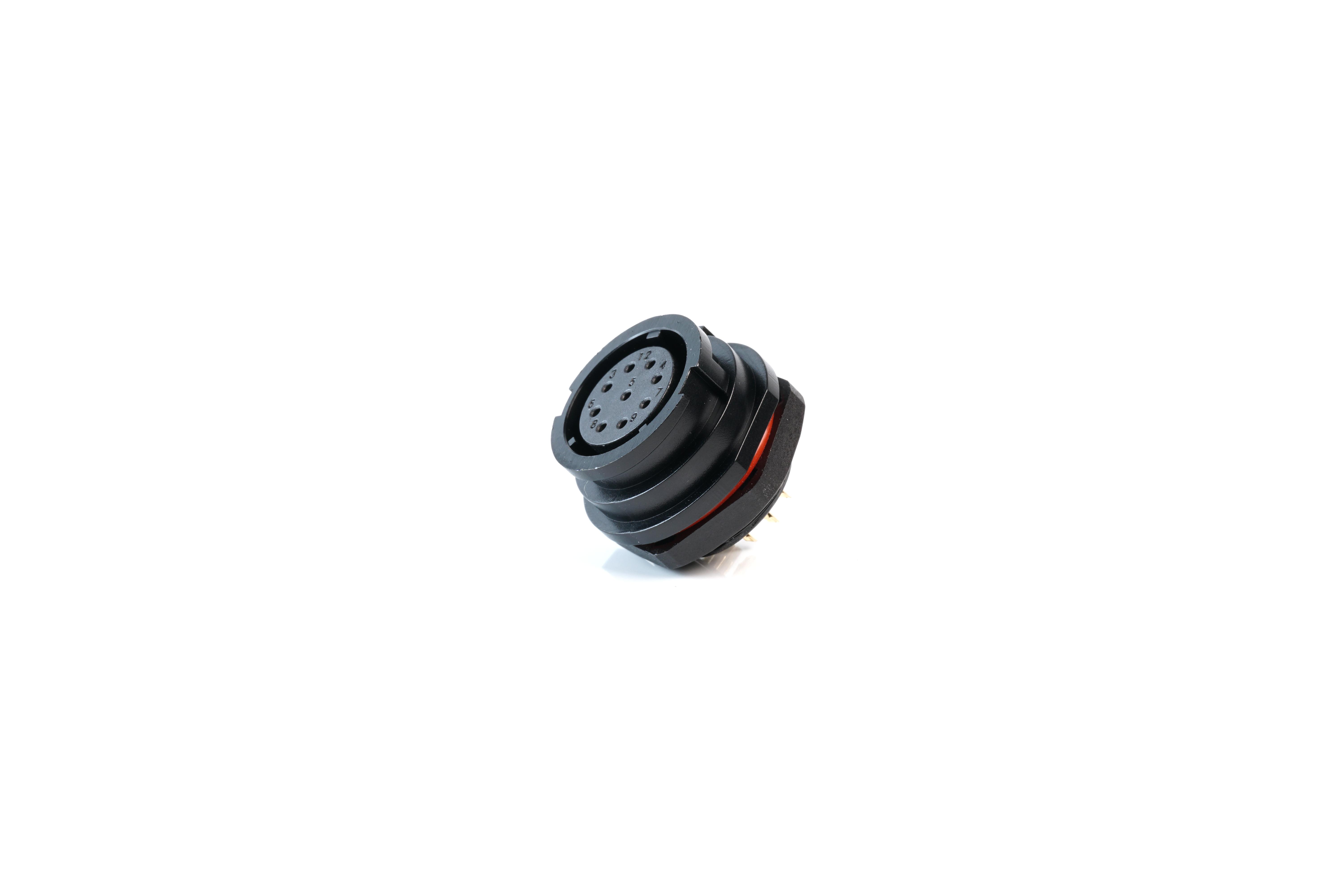

MULTICOMP-PRO MP002728 Circular Connector
The MP-T21 IP67 series is a durable range of connectors featuring bayonet couplings for quick and easy connection and disconnection. These connectors come in panel mount, cable mount, and inline cable mount options, allowing for versatile cable-to-panel or cable-to-cable connections. They are weather-sealed to IP67 standards, making them suitable for both indoor and outdoor applications. The series fits a 21mm panel cut-out and offers solder and screw terminal options. Available in configurations with 2, 3, 4, 5, 7, 9, and 12 poles, with an optional IP67-cap for enhanced sealing. Ideal for automation, process control, medical, security, test and measurement, and industrial automation uses.
MULTICOMP-PRO MP002728 Circular Connector Specifications:
- Ingress Protection: IP67
- Coupling: Bayonet
- Material: Nylon66 shell, insert made of PPS rated Max. 260°C
- Contact Material: Brass with gold plating
- Temperature Range: -40°C to +80°C
- Rated Voltage: 500 V AC, 400 V AC for specific models
- Rated Current: 30 A for most, 5 A for smaller contacts
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder and screw options available
- Mating Cycles: 500
- Insulation Resistance: 2000 MΩ
- Contact Resistance: 1–5 mΩ depending on contact type
- Max Outer Diameter: 12 mm
- Certifications: RoHS compliant
Buy the Buy Multicomp IP67 Circular Connectors Part Number MP002728 Online
Order the Multicomp MP002728 circular connector series online today for reliable, weatherproof connections suitable for harsh environments. These IP67-rated connectors feature quick bayonet coupling, versatile mounting options, and multiple contact configurations, making them perfect for automation, industrial, and outdoor applications. With solder and screw terminal options, robust brass contacts with gold plating, and a durable nylon66 shell, they deliver excellent performance and longevity. Purchase now to ensure your projects meet high standards of safety, durability, and ease of use in both indoor and outdoor settings.
Get Multicomp MP002728 today—crafted for reliable sealing, quick connection, and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002728?
You can click on the BUY or RFQ button to purchase MP002728 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002728?
You can download the MP002728 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002728?
MULTICOMP-PRO
