MULTICOMP PRO MP002733 Push-Pull Circular Connector

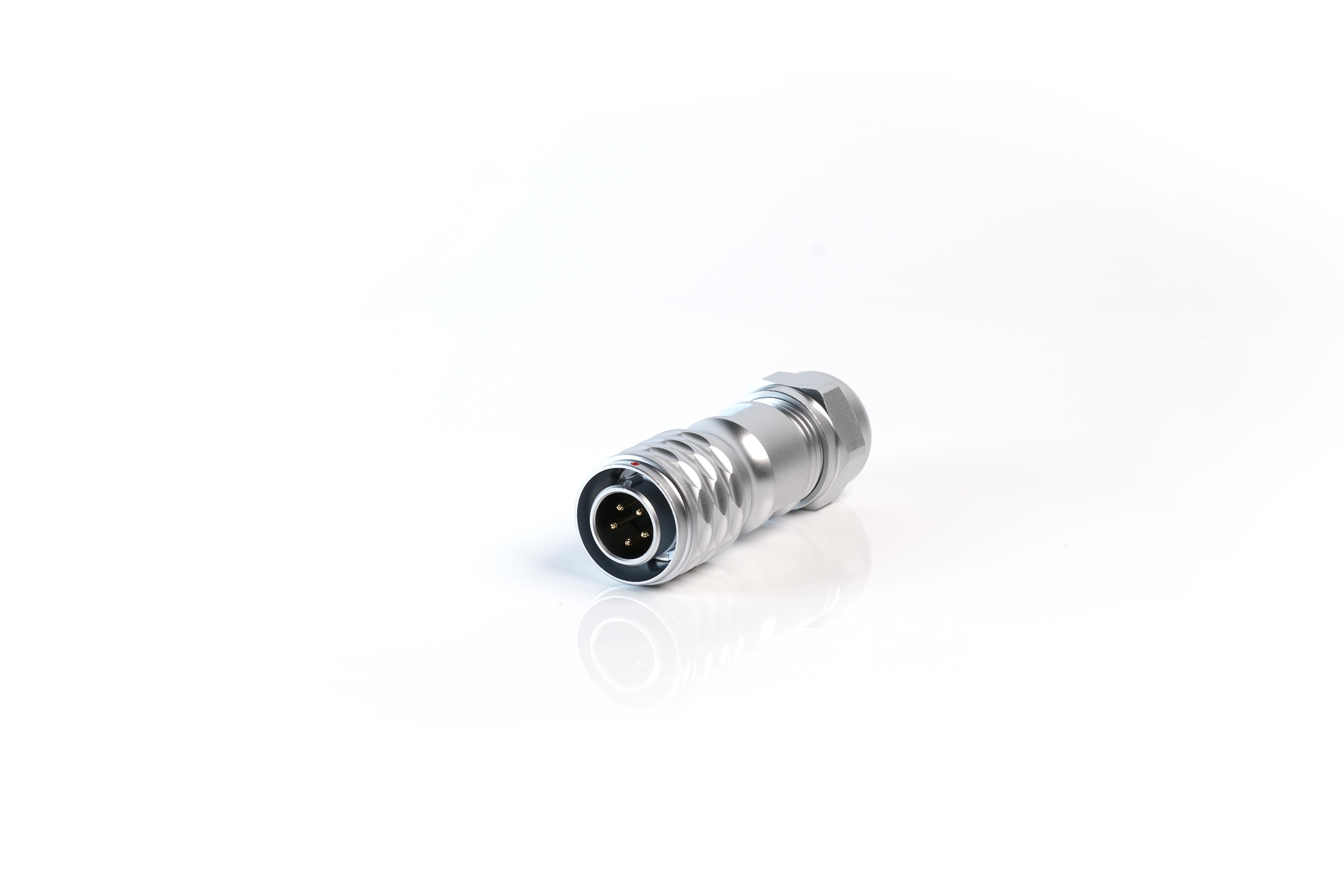

The MP M12 push-pull connectors consist of chrome-plated brass components designed for durability and aesthetic appeal. They are suitable for challenging environments and feature a push-pull coupling mechanism for quick and secure connection and disconnection. These connectors are available in panel mount, cable mount, and in-line configurations, supporting cable-to-cable or cable-to-panel connections. Their IP67 weather resistance makes them ideal for indoor and outdoor applications including automation, medical equipment, security systems, test devices, and industrial automation, supporting 12mm cut-outs, solder termination, with 2, 4, 5, and 7 pole options.
MULTICOMP PRO MP002733 Push-Pull Circular Connector Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contact: 2, 4, 5, 7
- Rated Current: 13A (2-pin), 5A (others)
- Rated Voltage: 250V (2-pin), 200V, 180V, 125V (others)
- Test Voltage: 1500V (2-pin), 1000V (others)
- Contact Resistance: 2.5 mΩ (2-pin), 5 mΩ (others)
- Wire Size: 0.75/18 AWG (up to 2.5 mm²)
- Dimensions: Supports 4mm to 6.5mm cable outer diameter, Panel cutout approx. 3.5mm depth
- Coupling: Push-pull mechanism for quick connection
Buy the Buy Multicomp Push-Pull Circular Connectors Part Number MP002733 Online
Discover the reliable and weatherproof push-pull circular connectors designed for industrial automation, medical, and security systems. These chrome-plated brass connectors feature IP67 sealing, supporting quick and secure coupling in challenging environments. Available in panel, cable, or inline configurations with 2, 4, 5, and 7 poles, they support solder termination and operate in temperatures from -40°C to +85°C. Their rugged design and high mating cycle count make them ideal for indoor and outdoor use, ensuring robust connectivity in demanding applications.
Buy Multicomp MP002733 now and experience quick, reliable, and weatherproof connectivity for industrial automation and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002733?
You can click on the BUY or RFQ button to purchase MP002733 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002733?
You can download the MP002733 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002733?
MULTICOMP PRO
