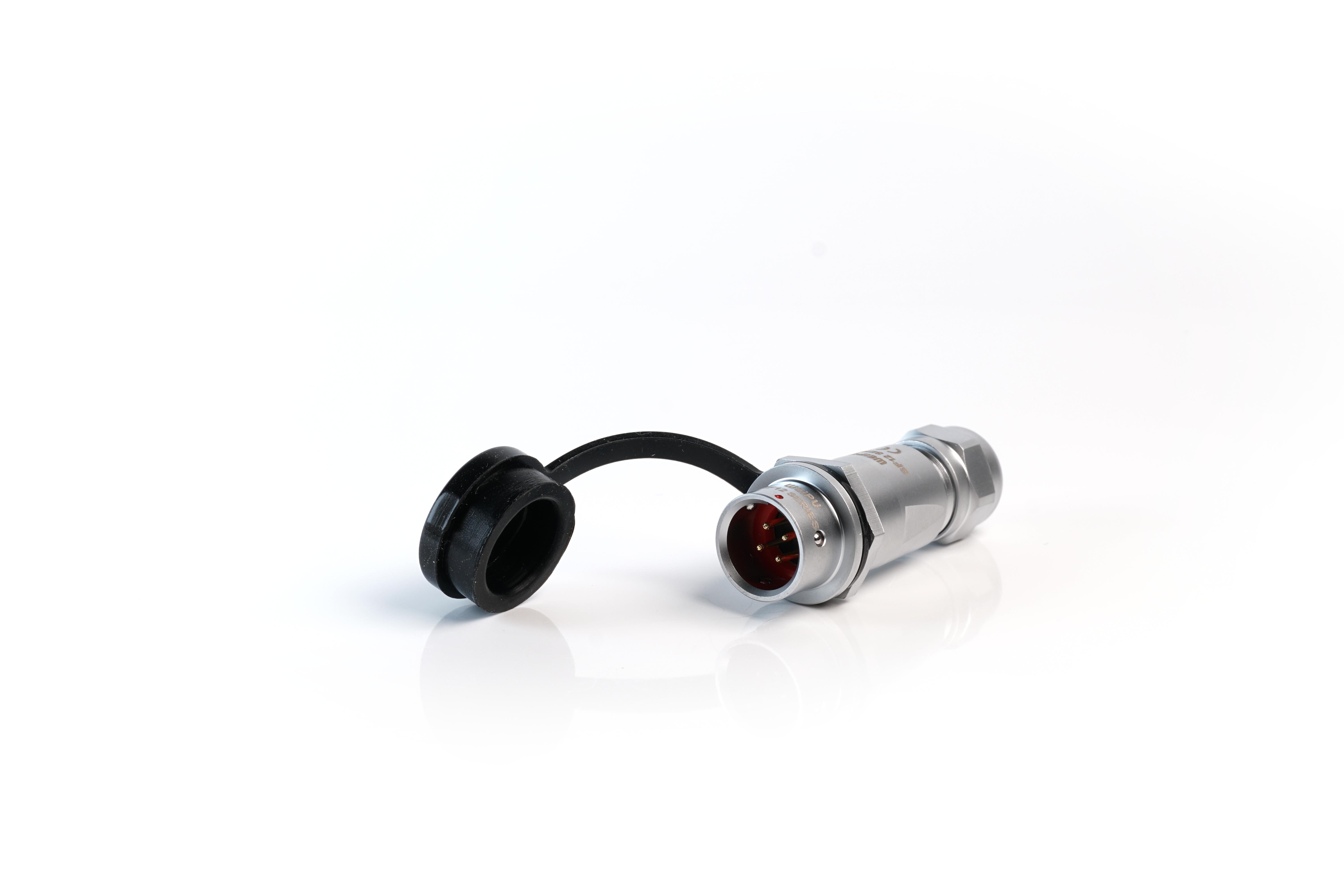

MULTICOMP PRO MP002740 M12 Push-Pull Connector
The MP M12 push-pull connectors are premium chrome-plated brass connectors designed for durability and aesthetic appeal. They are suitable for challenging environments and are available in panel mount, cable mount, and in-line cable mount configurations, allowing for either cable-to-cable or cable-to-panel connections. The push-pull coupling mechanism ensures quick and easy connection and disconnection, while the IP67 weather sealing makes them ideal for both indoor and outdoor applications. These connectors fit a 12mm cut-out, feature solder termination, and come in 2, 4, 5, and 7 pole variants. They are commonly used in automation, process control, medical, security, test and measurement, and industrial automation.
MULTICOMP PRO MP002740 M12 Push-Pull Connector Specifications:
- Coupling: Push-pull
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13A (2 pole), 5A (4, 5, 7 pole)
- Contact Diameter: 1.6mm (2 pole), 1mm (4, 5, 7 pole)
- Rated Voltage: 250V (2 pole), 200V (4 pole), 180V (5 pole), 125V (7 pole)
- Test Voltage: 1500V (2, 4, 5 pole), 1000V (7 pole)
- Contact Resistance: 2.5 mΩ (2 pole), 5 mΩ (4, 5, 7 pole)
- Wire Size: 0.75/18 AWG (approximately 2/14 mm²)
- Outer Diameter Range: 4mm to 6.5mm
- Panel Cutout: 3.5 mm max
- Dimensions: Millimetres, specific configurations vary
- Materials: Brass, chrome plating, PPS insulation
- Environmental Conditions: Suitable for outdoor and indoor use, weather sealed
Buy the Multicomp M12 Push-Pull - Reliable Circular Connectors for Industrial Applications
Discover the high-quality Multicomp M12 Push-Pull Connector, featuring chrome-plated brass construction, IP67 weather resistance, and versatile mounting options. Perfectly suited for demanding environments, these connectors ensure reliable data and power transmission in automation, industrial control, and outdoor applications. Easy to install with solder terminations, they offer a long-lasting performance with a robust design. Enhance your projects by purchasing online today and enjoy quick delivery, competitive prices, and trusted quality for your industrial needs.
Order your Multicomp Series MP002740 M12 Push-Pull connector today and enhance your industrial automation projects with dependable, weather-sealed connections.
