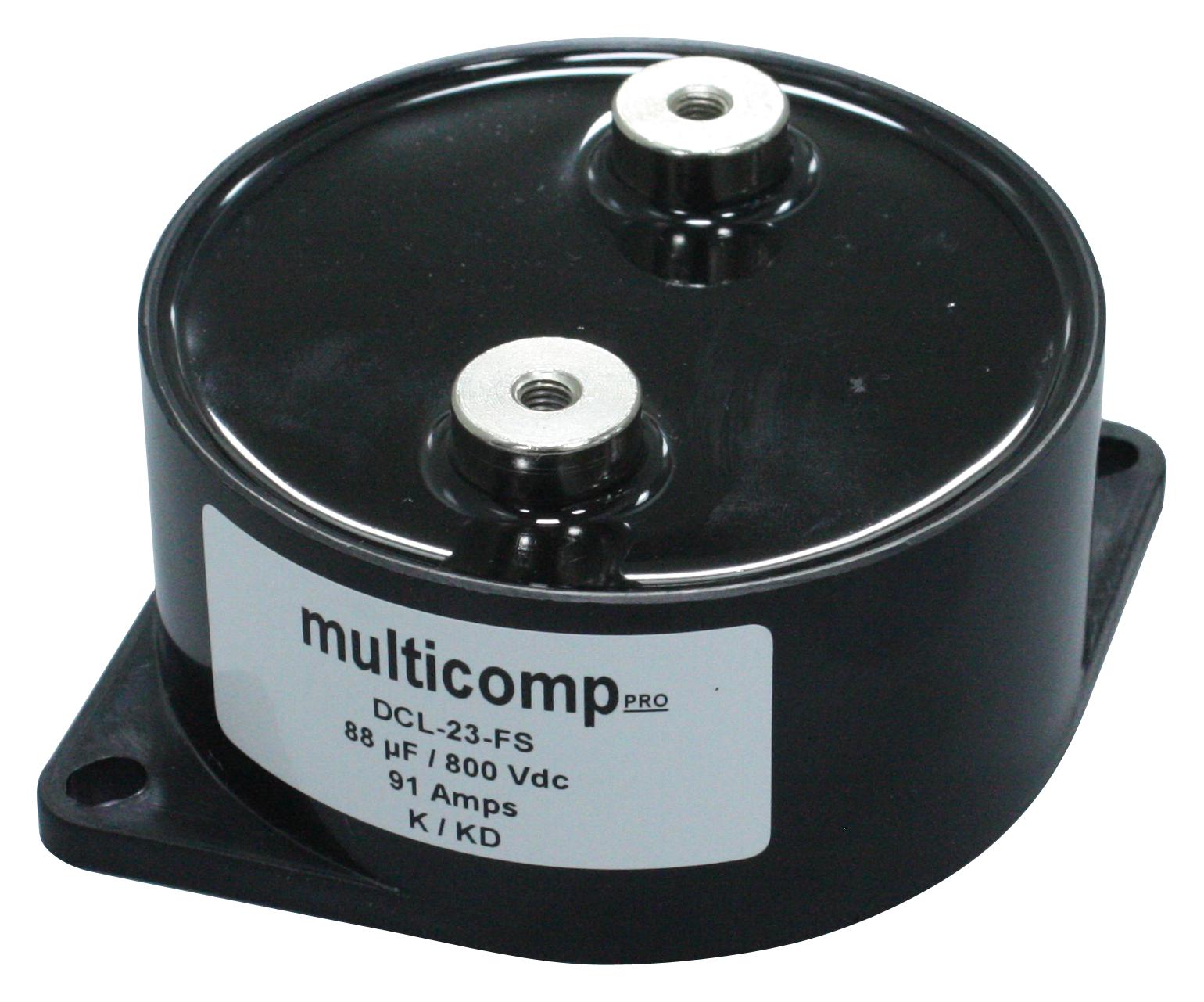

MULTICOMP PRO MP003993 DC Link Capacitors
The DC Link Film Capacitors with screw and stud terminals are high-reliability components designed for DC filtering, wind and solar power inverters, electric vehicle inverters, and motor drives. Constructed with metallized polypropylene film enclosed in UL 94-VO plastic cases, these capacitors feature low inductance and ESR, high thermal conductivity, and a life expectancy of up to 100,000 hours. They are rated for voltages from 700V to 1800V, with capacitance values ranging from 30uF to 265uF. Suitable for demanding electrical applications requiring stable performance across a wide temperature range.
MULTICOMP PRO MP003993 DC Link Capacitors Specifications:
- Electrode Material: Metallised polypropylene film
- Winding Construction: Polypropylene film, metallised polypropylene film
- Enclosure: UL 94-VO plastic case with thermosetting resin fill
- Terminals: Nickel plated brass
- Capacitance Range: 30UF to 265uF
- Capacitance Tolerance: ±10%
- Rated Voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800
- Test Voltage between Terminals: 1.3× rated voltage V DC for 60 seconds
- Test Voltage Terminal to Case: KV AC at 50Hz for 60 seconds
- Dissipation Factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature Range: 0°C to +105°C
- Insulation Resistance: MΩ×uF at 25°C
- Markings: Grade, capacitance in pF, rated voltage, max current, tolerance, part number if non-standard
- Dimensions: Various sizes with typical case sizes from 35mm to 85mm in diameter
- Life Expectancy: Up to 100,000 hours under proper conditions
Buy the Multicomp Series DC Link Capacitors: 700V-1800V High-Performance Film Capacitors
Secure your operations with Multicomp's high-quality DC Link Capacitors available for online purchase. Designed for reliability in demanding electrical environments, these film capacitors with screw and stud terminals provide low ESR, high thermal conductivity, and extended life up to 100,000 hours. Suitable for inverter systems, electric vehicles, and motor drives, they meet RoHS standards and feature a robust UL 94-VO flame retardant case. Order now to ensure stable and efficient electrical performance for your projects.
Buy Multicomp DC Link Film Capacitors with screw/stud terminals now and experience unmatched reliability and performance for inverter and motor drive applications.
