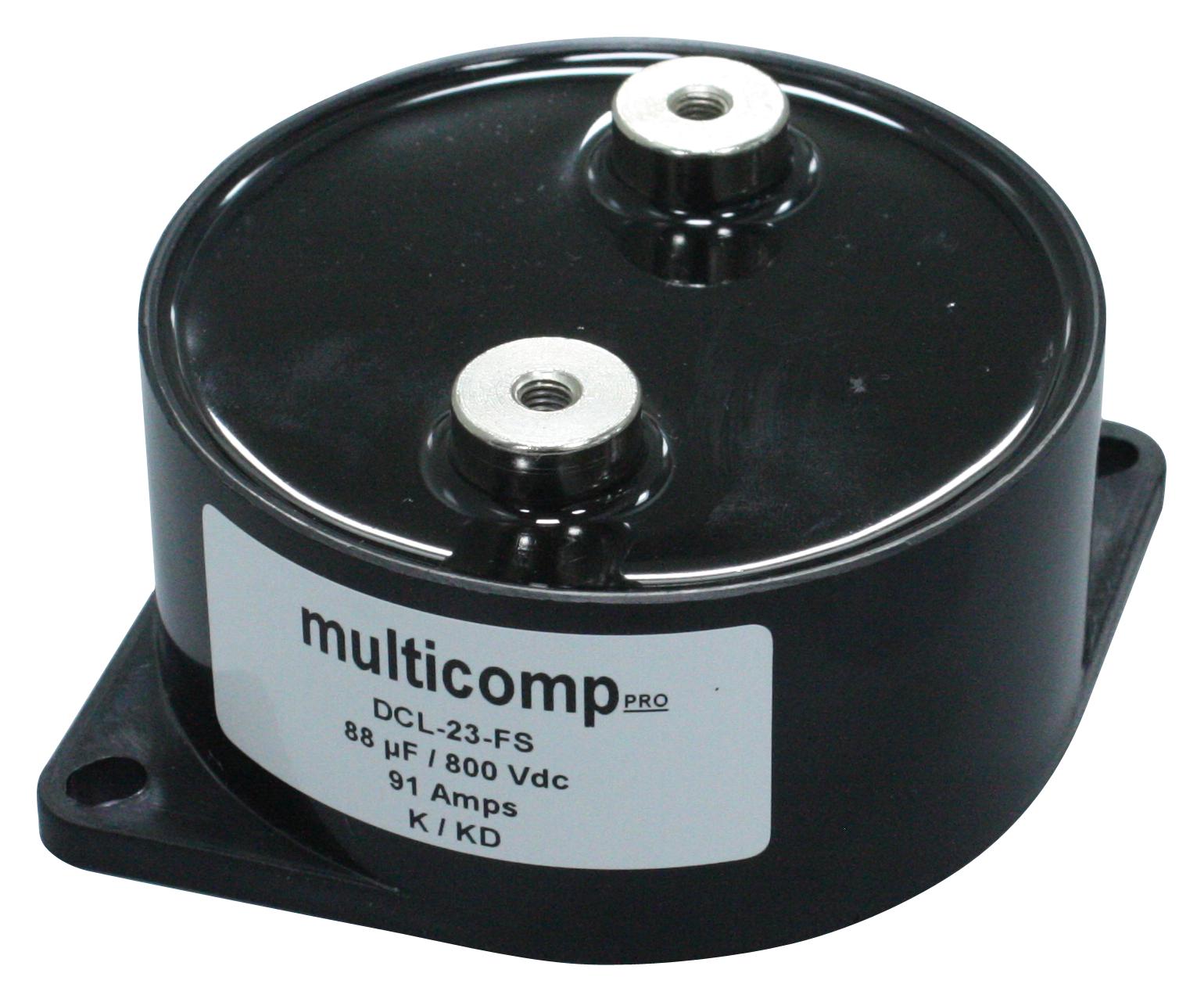

MULTICOMP-PRO MP004006 DC Link Capacitor
High-capacity DC link film capacitor designed for inverter, motor drive, and power supply applications, featuring metallized polypropylene construction, low ESR, and self-inductance as low as 11nH. It has a flame-retardant UL94-VO case, integrated mounting flanges, and life expectancy up to 100,000 hours. Rated voltages range from 700V to 1800V DC, with capacitance from 30UF to 265UF, suitable for high-temperature operation up to 105°C. Its low ESR, high thermal conductivity, and robust construction ensure reliable performance in demanding electrical environments.
MULTICOMP-PRO MP004006 DC Link Capacitor Specifications:
- Electrode material : Metallised polypropylene film
- Winding construction : Polypropylene film, metallised polypropylene film
- Enclosure : Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals : Nickel plated brass
- Capacitance range : 30UF to 265UF
- Capacity tolerance : ±10%
- Rated voltage V DC : 700, 800, 900, 1000, 1200, 1400, 1600, 1800
- Test voltage between terminals : 1.3 × rated voltage V DC for 60 seconds
- Test voltage terminal to case : KV AC at 50Hz for 60 seconds
- Dissipation factor : 0.0015 at 100Hz and 25°C
- Temperature range : 0°C to +105°C
- Insulation resistance : MΩ x μF at 25°C
- Reference Standard : IEC 61071 and IEC 60068
- Physical Dimensions : Approximately 85x64mm, with variations depending on model
Buy the Multicomp Series DC Link Capacitor: MP004006
Purchase your Multicomp Series MP004006 DC link film capacitor online today for high reliability in inverter, motor drive, and power supply applications. Featuring metallized polypropylene construction, low ESR, and UL94-VO flame retardant casing, this capacitor offers excellent thermal performance and long life expectancy up to 100,000 hours. With a voltage range from 700V to 1800V DC and capacitance from 30UF to 265UF, it ensures stable operation under high temperatures up to 105°C. Perfect for demanding industrial and renewable energy projects, order now for quick delivery.
Order your Multicomp Series MP004006 high-performance DC link film capacitor today and ensure reliable inverter and motor drive operations with quality and durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004006?
You can click on the BUY or RFQ button to purchase MP004006 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004006?
You can download the MP004006 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004006?
MULTICOMP-PRO
