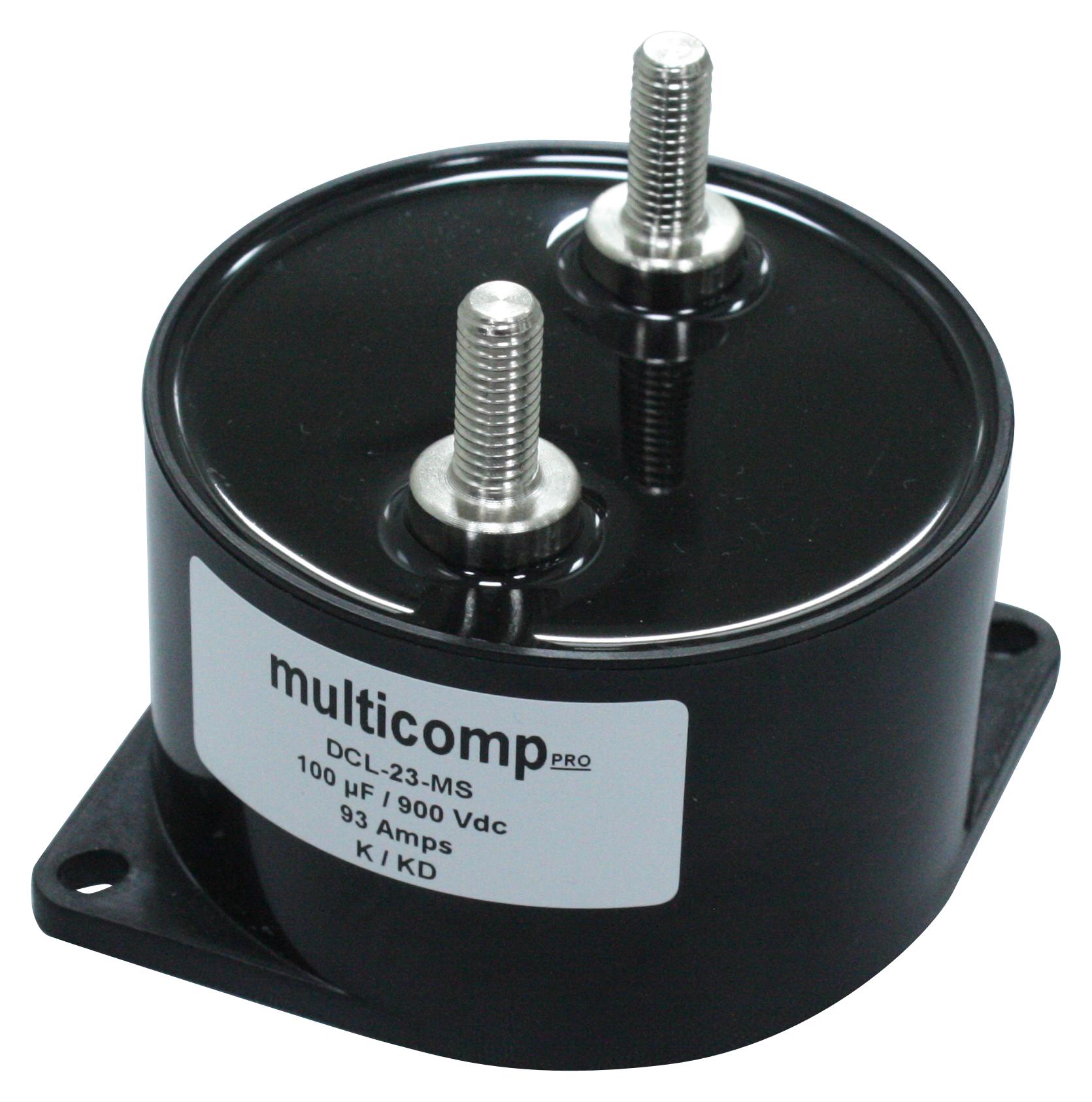

MULTICOMP PRO MP004007 DC Link Film Capacitors
These DC link film capacitors are designed for high voltage filtering applications in industrial environments such as wind and solar inverters, electric vehicle drives, and motor controllers. Constructed with metallized polypropylene film and housed in UL 94-VO flame-retardant cases, they offer low ESR, self-inductance as low as 11nH, and high thermal conductivity for reliable performance. Suitable for DC filtering and power conversion systems, they have a rated voltage range of 700V to 1800V, and operate from 0°C to +105°C, ensuring long life and high efficiency in demanding applications.
MULTICOMP PRO MP004007 DC Link Film Capacitors Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265μF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800
- Test voltage between terminals: 1.3× rated voltage for 60 seconds
- Test voltage terminal to case: KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: MΩ × μF at 25°C
- Marking: Grade, capacitance pF, rated voltage V DC, max current Arms, capacity tolerance, manufacturing code
- Dimensions: Varies, typical sizes 85x40mm to 85x79mm
- Standards: IEC 61071, IEC 60068
Buy the Multicomp Pro MP004007 – Reliable DC Link Film Capacitors for Industrial Applications
Purchase Multicomp Pro DC Link Film Capacitors online today for robust high voltage filtering solutions. Ideal for wind, solar, and electric vehicle applications, these capacitors feature metallized polypropylene construction, UL 94-VO flame retardant casing, and operate up to 1800V. Designed for demanding environments, they deliver low ESR, high thermal conductivity, and long life expectancy. Easy to install with integrated mounting flanges, ensure your power conversion systems perform at peak efficiency with these reliable and durable capacitors. Buy now for prompt delivery and expert support.
Get Multicomp Pro MP004007 today—built for precision, high voltage filtering, and long-lasting durability in power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004007?
You can click on the BUY or RFQ button to purchase MP004007 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004007?
You can download the MP004007 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004007?
MULTICOMP PRO
