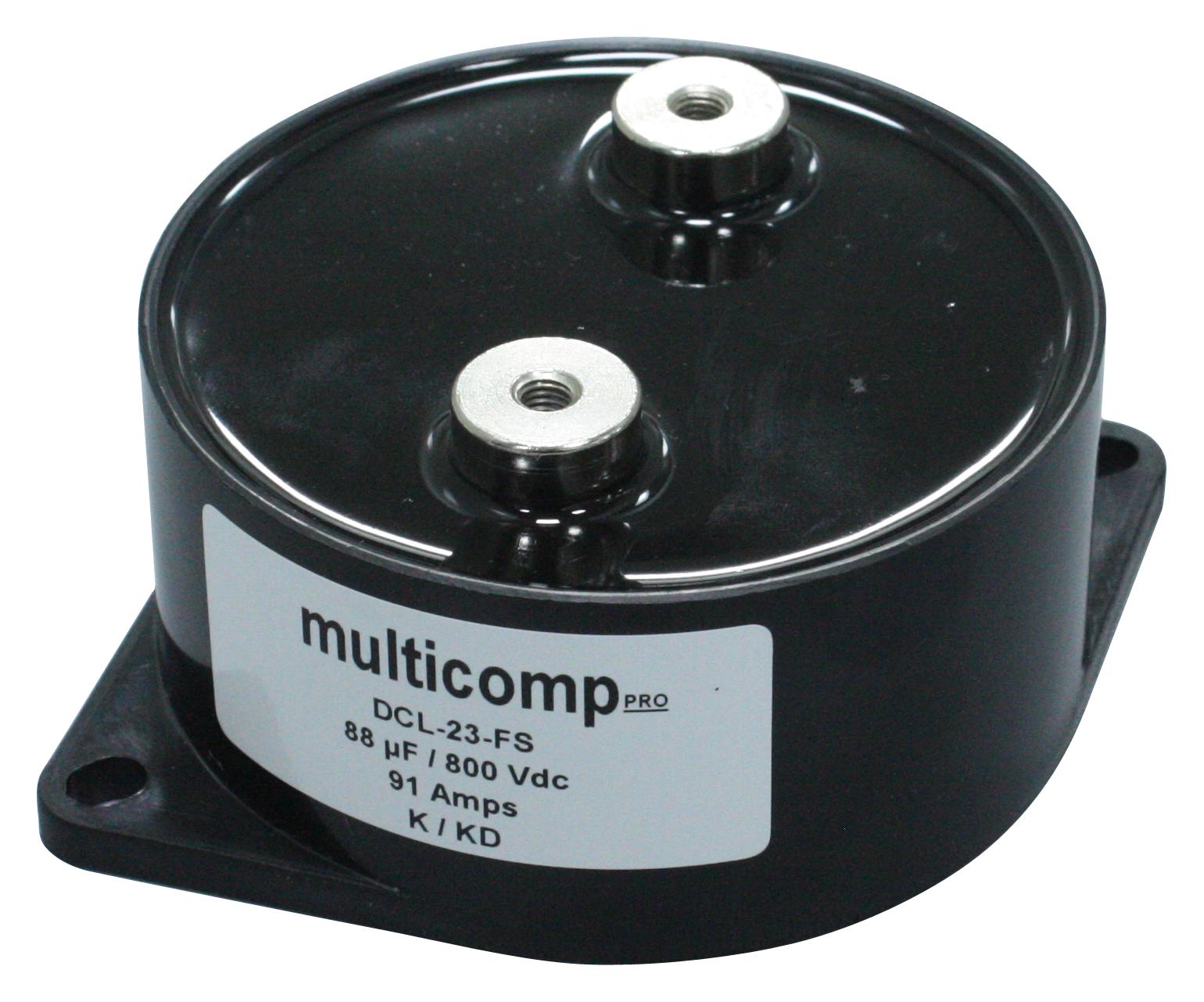

MULTICOMP PRO MP004009 DC Link Film Capacitor
The DC Link Film Capacitors with screw and stud terminals are designed for high-voltage applications such as inverters for wind, solar, electric vehicles, and motor drives. Constructed with metallized polypropylene film, these capacitors feature low self-inductance as low as 11nH, ESR as low as 0.5mΩ, high thermal conductivity, and flame retardant UL94-VO casing. They operate from 0°C to +105°C, with capacitance from 30UF to 265UF and rated voltages up to 1800V DC. Suitable for DC filtering, these robust capacitors ensure reliable performance with life expectancy up to 100,000 hours.
MULTICOMP PRO MP004009 DC Link Film Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265UF
- Capacitance tolerance: ±10%
- Rated voltage DC: 700V, 800V, 900V, 1000V, 1200V, 1400V, 1600V, 1800V
- Test voltage: 1.3× rated voltage for 60 seconds, terminal to case KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1,000 MΩ x μF at 25°C
- Reference standard: IEC 61071, IEC 60068
Buy the Multicomp DC Link – Reliable Film Capacitors for Industrial Applications
Purchase multicomp series DC Link film capacitors online today to ensure your inverter, power conversion, or motor drive systems operate reliably. These high-voltage capacitors feature low ESR and inductance, flame retardant casing, and operate across a wide temperature range up to +105°C. With rating voltages up to 1800V DC, construction from metallized polypropylene film, and a life expectancy of 100,000 hours, they provide superior performance for demanding industrial applications. Reliable and easy to install, order now for fast delivery and quality assurance.
Order your multicomp series DC Link film capacitor today and enhance your inverter and motor drive projects with dependable, high-performance components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004009?
You can click on the BUY or RFQ button to purchase MP004009 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004009?
You can download the MP004009 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004009?
MULTICOMP PRO
