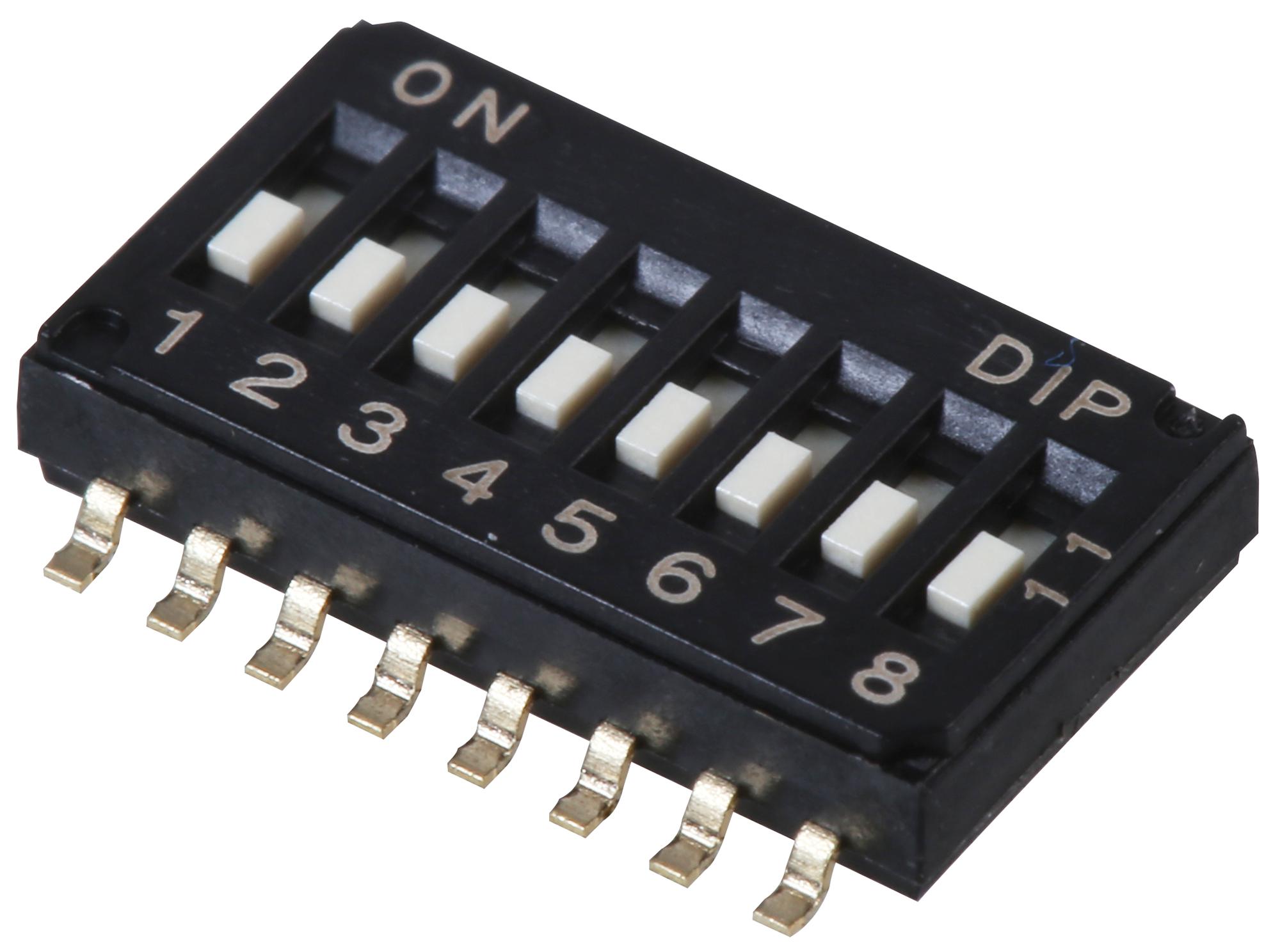

MULTICOMP PRO MCDHA08TQR DIP Switch
The DIP switch from multicomp features a half-pitch design, ideal for industrial control, automation, and electronic device applications. It offers 8 positions with SPST operation, a low profile height of 2.2mm, and gold contacts for high reliability and corrosion resistance. This switch supports an operating temperature range of -40°C to +85°C, with a travel of 0.8mm, and an operating force of 500gf. It has a dielectric strength of 300V AC for 1 minute, a contact rating of 25mA at 24V DC, and an insulation resistance above 100MΩ at 500V DC, ensuring durability and precise switching in demanding environments.
MULTICOMP PRO MCDHA08TQR DIP Switch Specifications:
- Contact Rating: 25mA, 24V DC
- Contact Resistance: > 100MΩ max. initial at 500V DC
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 300V AC for 1 minute
- Operating Force: 500gf
- Travel: 0.8mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Physical Dimensions: Length 11.29mm for 8-position switch
- RoHS Compliant
- Low profile height: 2.2mm
- Gold contact surface for high reliability
- Top tape packaging for washing process
Buy the Multicomp Series DIP Switch: MCDHA08TQR
Purchase the multicomp DIP switch MCDHA08TQR online today to ensure superior durability and precise switching for your industrial or electronic projects. Its 8-position configuration, gold contacts, and low profile design make it ideal for compact spaces. Supporting a contact rating of 25mA at 24V DC, it features a travel of 0.8mm and an operating force of 500gf. RoHS compliant, with a temperature range from -40°C to +85°C, this switch guarantees dependable switching performance in critical environments.
Buy multicomp DIP switch MCDHA08TQR now and experience unmatched reliability and performance in industrial control and automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDHA08TQR?
You can click on the BUY or RFQ button to purchase MCDHA08TQR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDHA08TQR?
You can download the MCDHA08TQR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDHA08TQR?
MULTICOMP PRO
