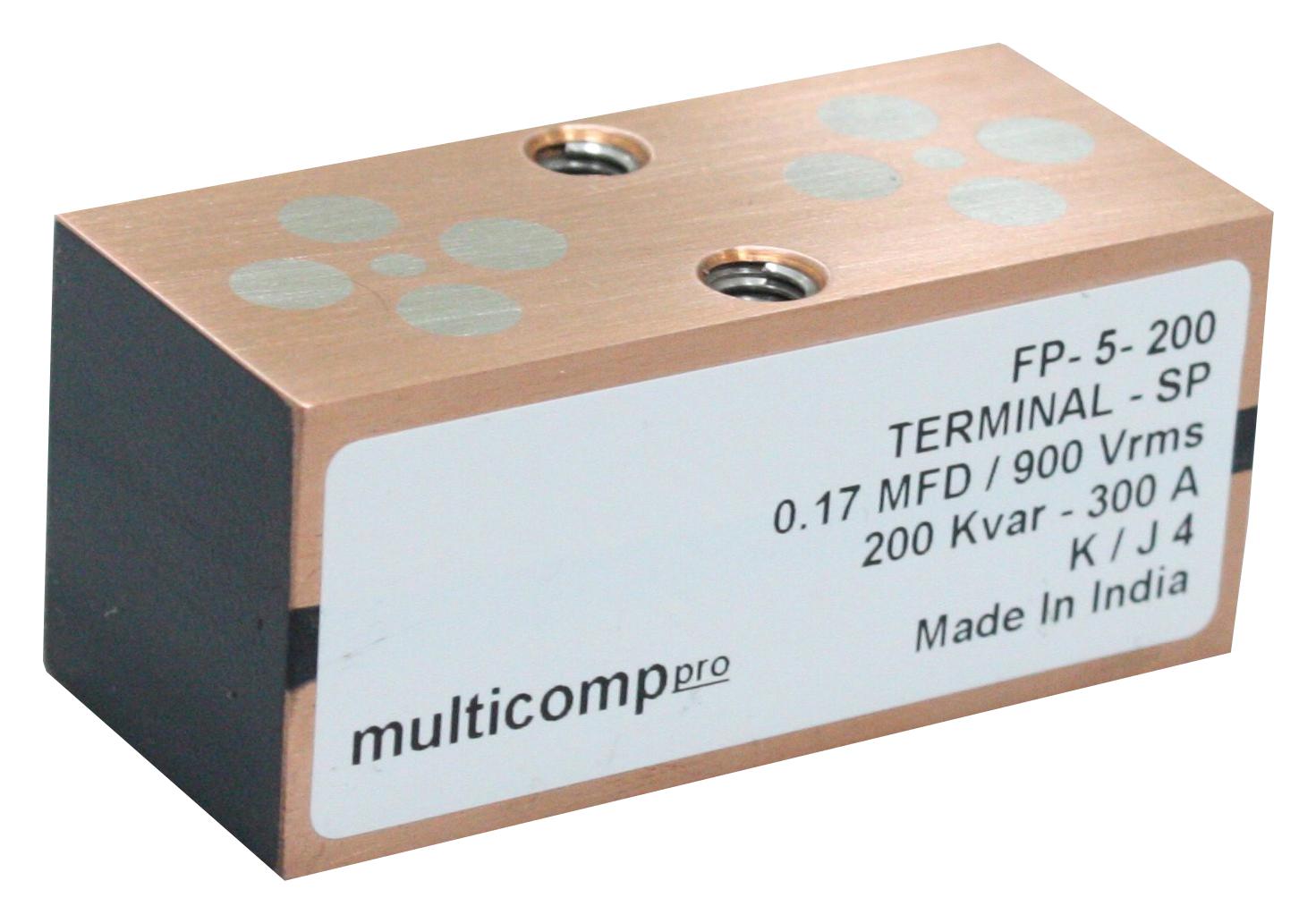

MULTICOMP PRO MP004081 Power Film Capacitor
This power film capacitor features a polypropylene dielectric with self-healing properties, suitable for conduction cooling. Designed for high-frequency applications up to 700kHz, it operates at a maximum core temperature of 85°C. It offers RoHS compliance, flame retardant UL94-V0 rating, and a standard capacitance tolerance of ±10%. Available in various capacitance values, it is ideal for industrial power conversion, inverter circuits, and filtering applications, with screw/stud terminals for reliable connections. Its compact dimensions and durable construction ensure high performance in demanding environments.
MULTICOMP PRO MP004081 Power Film Capacitor Specifications:
- Dielectric: Polypropylene
- Self-healing: Yes
- RoHS compliant
- Flame retardant UL94-V0
- Maximum operating temperature: 85°C
- Frequency range: up to 700kHz
- Capacitance tolerance: ±10%
- Voltage ratings: 450V to 800V RMS
- Current ratings: 250A to 500A RMS
- Power: up to 200 KVAR
- Dimensions: varies by model, approximately 30mm diameter
- Terminal style: screw/stud terminals
- Tightening torque: max 15Nm
Buy the Multicomp Series Power Film Capacitor: MP004081
Purchase your Power Film Capacitor online today to enhance your power conversion, filtering, and inverter systems. Engineered with polypropylene dielectric for self-healing and RoHS compliance, it supports high-frequency applications up to 700kHz and operates at a maximum core temperature of 85°C. Designed for durability, these capacitors feature screw/stud terminals for reliable connections. Ideal for industrial, commercial, and electronic projects, they provide excellent stability and performance under demanding conditions, ensuring your systems run smoothly and efficiently.
Order your Multicomp Series Power Film Capacitor MP004081 today and give your power electronics projects dependable high-frequency performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004081?
You can click on the BUY or RFQ button to purchase MP004081 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004081?
You can download the MP004081 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004081?
MULTICOMP PRO
