MULTICOMP-PRO MP004203 Snubber Capacitors
High-quality axial lead snubber capacitors designed with low-loss polypropylene dielectric for reliable high-frequency and high-voltage industrial applications. They feature extended double metallized polyester electrodes with metallized polypropylene dielectric internal series connection, suitable for snubber circuits, motor speed control, and switch-mode power supplies. Compliant with RoHS standards and UL 94-VO flame retardant. Available in a wide voltage range up to 2000 V DC, these capacitors deliver high peak current, low ESR, and excellent resistance at elevated temperatures, ensuring durable and safe operation in demanding environments.
MULTICOMP-PRO MP004203 Snubber Capacitors Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallized polypropylene film
- Winding construction: Extended double metallized polyester electrodes with metallized polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: UI94-VO flame-retardant tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51 μF
- Capacity tolerance: ±5% (J), ±10% (K)
- Rated voltage V DC: 600, 850, 1000, 1200, 1600, 2000, 2500, 3000
- Rated voltage V AC: 275-750 V
- Test voltage between terminals: 2x rated V DC for 10 sec
- Test voltage terminal to case: 3 kV AC
- Dissipation factor: <0.0005 at 1 kHz and +25°C
- Insulation resistance: >100,000 MΩ at 100 V DC after 2 min
- Temperature range: -55°C to +105°C; up to +80°C full rated voltage, at +105°C only half rated voltage
- Dimensions vary with capacitance, e.g., 0.22 μF: 11.5 mm Wmax, 18 mm Lmax, 7 mm d; larger values proportionally bigger
- Peak current: Up to 950 V DC: 446-750 A depending on model
- Operational at temperatures up to +80°C with appropriate voltage ratings

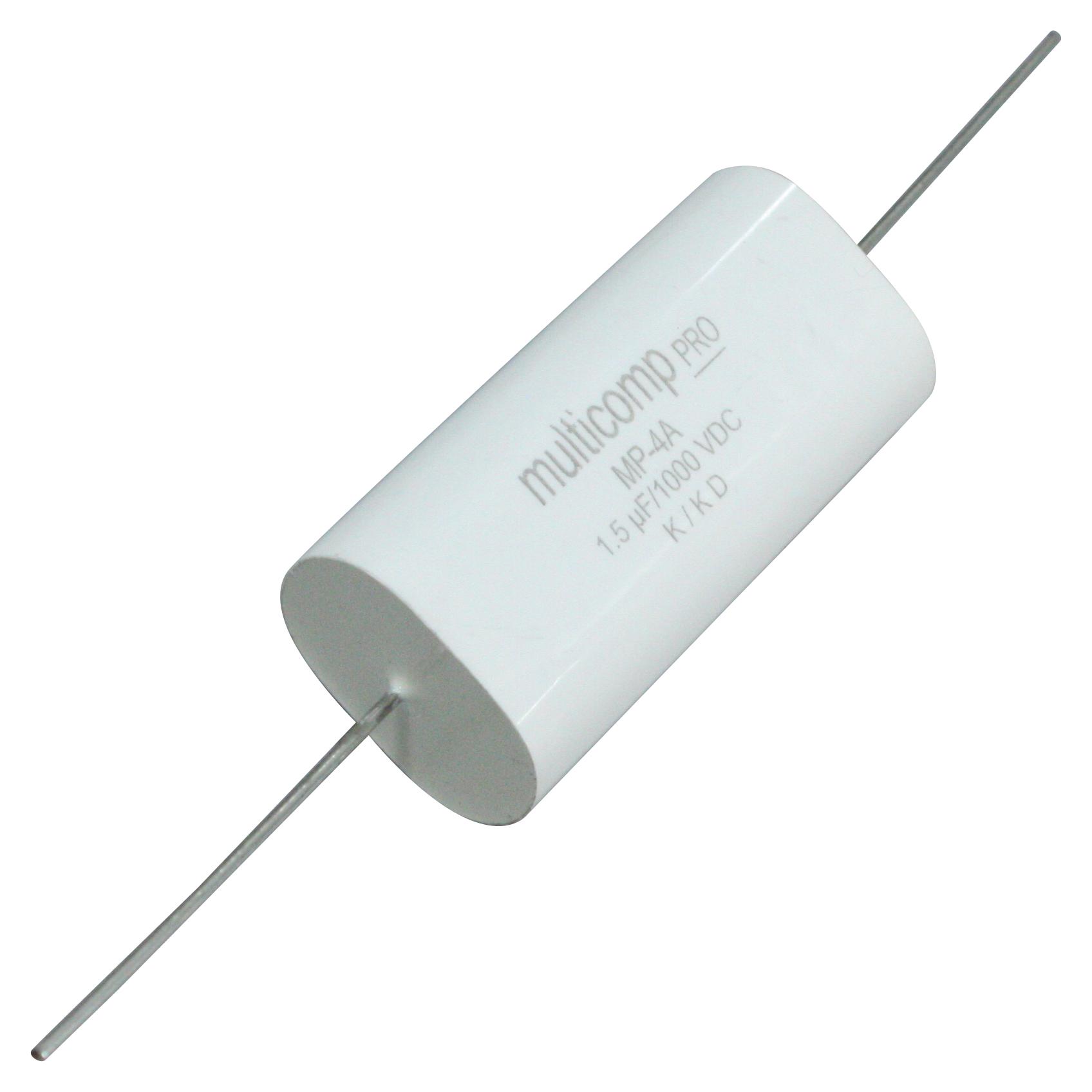

Buy the Multicomp Snubber Capacitors – Reliable Axial Leaded High-Voltage Capacitors for Industrial Applications
Discover high-quality axial lead snubber capacitors designed for high frequency and high voltage applications in industrial settings. These capacitors feature polypropylene dielectric, extended double metallized polyester electrodes, and metallized polypropylene film construction for maximum durability. Suitable for snubber circuits, motor speed control, and switch-mode power supplies, they offer excellent ESR performance and thermal stability up to +105°C. Available in multiple voltage ratings up to 2000 V DC, these RoHS-compliant capacitors guarantee safety and reliability in demanding environments. Purchase online today for fast delivery and exceptional quality.
Order your Multicomp series axial lead snubber capacitors today and ensure your high voltage circuits operate with dependable, low-loss performance.
