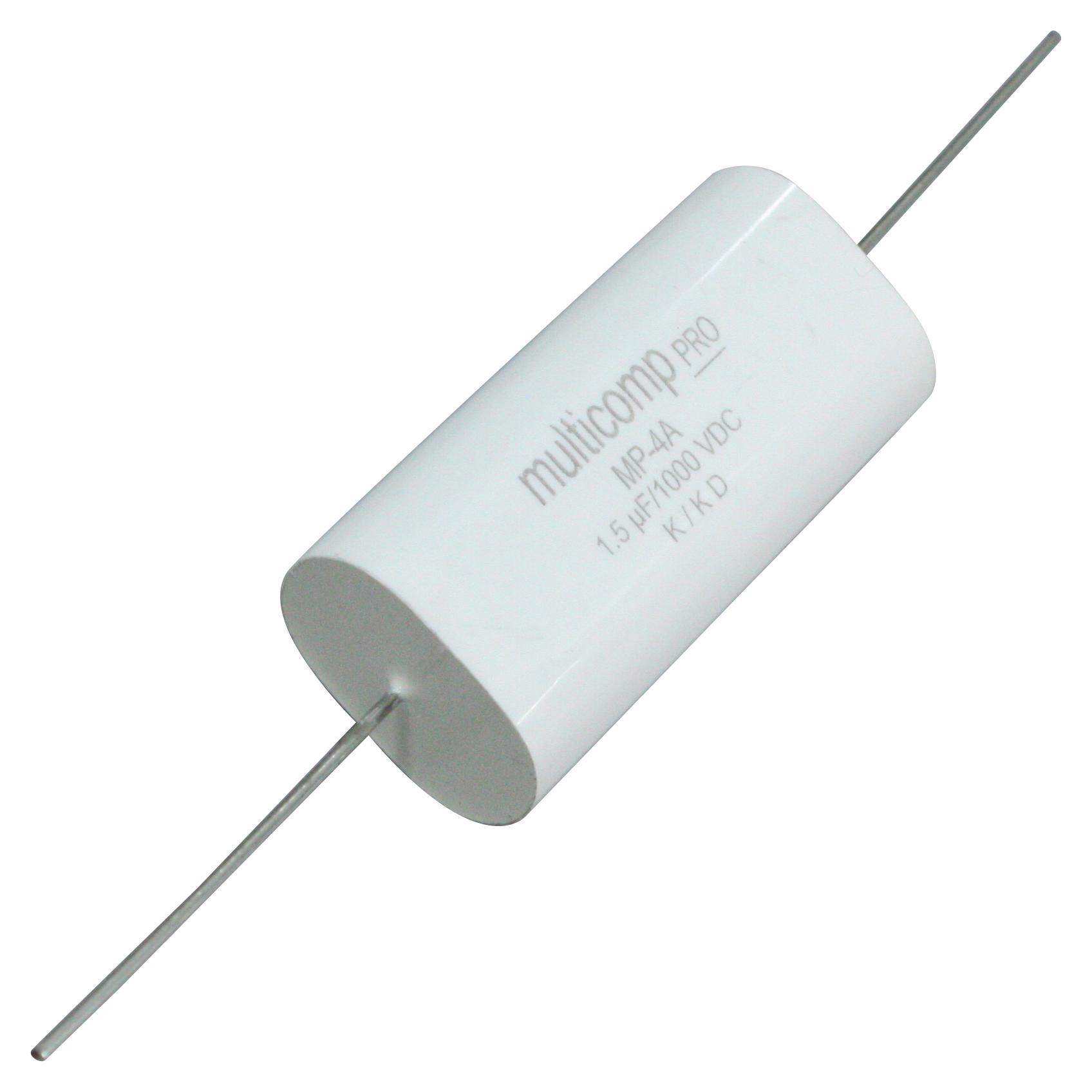

MULTICOMP PRO MP004215 High Voltage Snubber Capacitor
These axial leaded snubber capacitors are designed for high voltage, high current, and medium to high pulse applications such as snubber circuits, speed control, and switch mode power supplies. Manufactured with low-loss polypropylene dielectric and metallised films, they offer high peak current, high DV/DT, low ESR, and flame retardant UL94-V0 compliance. Suitable for demanding industrial environments, they feature extended double metallised polyester electrodes, robust polypropylene construction, and multiple voltage options up to 2000 V DC. Ideal for protecting sensitive electronic components in power electronics, these reliable capacitors meet IEC 61071 standards and RoHS compliance.
MULTICOMP PRO MP004215 High Voltage Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film, double metallized polyester
- Electrode material: Tinned copper
- Winding construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric
- Terminal: AXL style
- Enclosure: Tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51µF
- Capacitance tolerance: ±5%(J), ±10%(K)
- Rated voltage DC: 600 V, 850 V, 1000 V, 1200 V, 1600 V, 2000 V, 2500 V, 3000 V
- Rated voltage AC: 275 V, 450 V, 500 V, 630 V, 700 V, 750 V, 850 V, 1200 V, 1600 V, 2000 V
- Test voltage: 2x rated V DC for 10 seconds, 2-3 KV AC
- Dissipation factor: < 0.0005 at 1kHz and +25°C
- Insulation resistance: >100,000 MΩ at 100 V DC after 2 minutes
- Temperature range: -55°C to +105°C, full rated voltage up to +85°C, half voltage at +105°C
- Dimensions: Wmax varies with capacitance, typical length 34-54 mm, diameter 7-19 mm
Buy the Multicomp Reliable Snubber Capacitors for Industrial Applications
Enhance your power electronic designs with our high voltage axial leaded snubber capacitors, offering dependable performance in high current and pulse applications. Made with premium polypropylene dielectric and metallised film, these capacitors ensure high peak current, low ESR, and reliable insulation resistance. Suitable for snubber circuits, speed control, and switch mode power supplies across varied voltage ratings up to 2000 V DC. Their robust construction and IEC compliance make them ideal for demanding industrial environments—purchase online today for fast delivery and trusted quality.
Order your Multicomp Series MP004215 high voltage axial leaded snubber capacitor today and ensure robust protection for your power electronics projects.
