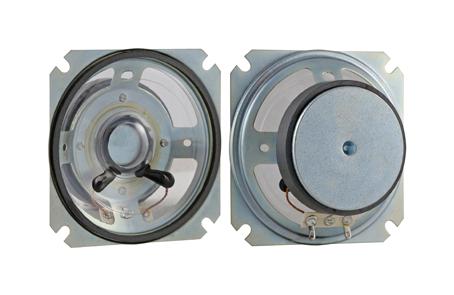

MULTICOMP PRO MP004285 8 Ohm Speakers
These 8 Ohm speakers with a power rating of 12W provide clear audio performance, featuring a resonance frequency of 550Hz and a frequency range of 0Hz-10kHz. Made with durable PET diaphragms, NdFeB magnets, and Cu voice coils, they are designed for reliable operation in various temperature and humidity conditions. Their compact size, precise specifications, and robust construction make them suitable for high-quality audio applications, ensuring minimal distortion and high SPL output for excellent sound clarity and volume in industrial and consumer electronics.
MULTICOMP PRO MP004285 8 Ohm Speakers Specifications:
- Rated impedance at 1kHz/1V: 180±15%Q
- Rated input power: 12W
- Maximum input power: 15W
- Resonant Frequency (f0) / 1V: 550Hz +20%Hz
- Frequency Range: 0Hz-10kHz
- SPL at 1kHz/1W/1m: 87 ±3dB
- Total harmonic distortion at 1kHz/1W: 5% Max
- Voice coil diameter: 13.28mm
- Magnet: Nd-Fe-B, 60mm x 10mm
- Material: Frame & Yoke - SPCC, Diaphragm & Cap - PET
- Terminal: Paper Cu PCB
- Operating Temperature: 1-20°C to +60°C
- Storage Temperature: -25°C to +70°C
- Weight: approx. 270g
- Vibration resistance tested at 1.52mm amplitude, 10-55Hz for 2 hours each in X, Y, Z directions
- Drop test from 75cm height, 10 times
Buy the Multicomp Series Speakers: 8 Ohm, 12W - MP004285
Enhance your audio setups with these durable 8 Ohm speakers rated at 12W, featuring a resonant frequency of 550Hz and a broad frequency response of 0Hz to 10kHz. Designed with high-quality PET diaphragms, NdFeB magnets, and Cu voice coils, they deliver clear sound with high SPL and minimal distortion, suitable for a variety of applications. Their compact size, resistance to environmental conditions, and rigorous testing ensure long-lasting performance in both industrial and consumer electronics; order online today for dependable sound solutions.
Order your multicomp Series 8 Ohm speakers MP004285 today and experience reliable audio quality for your industrial or consumer electronics projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004285?
You can click on the BUY or RFQ button to purchase MP004285 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004285?
You can download the MP004285 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004285?
MULTICOMP PRO
