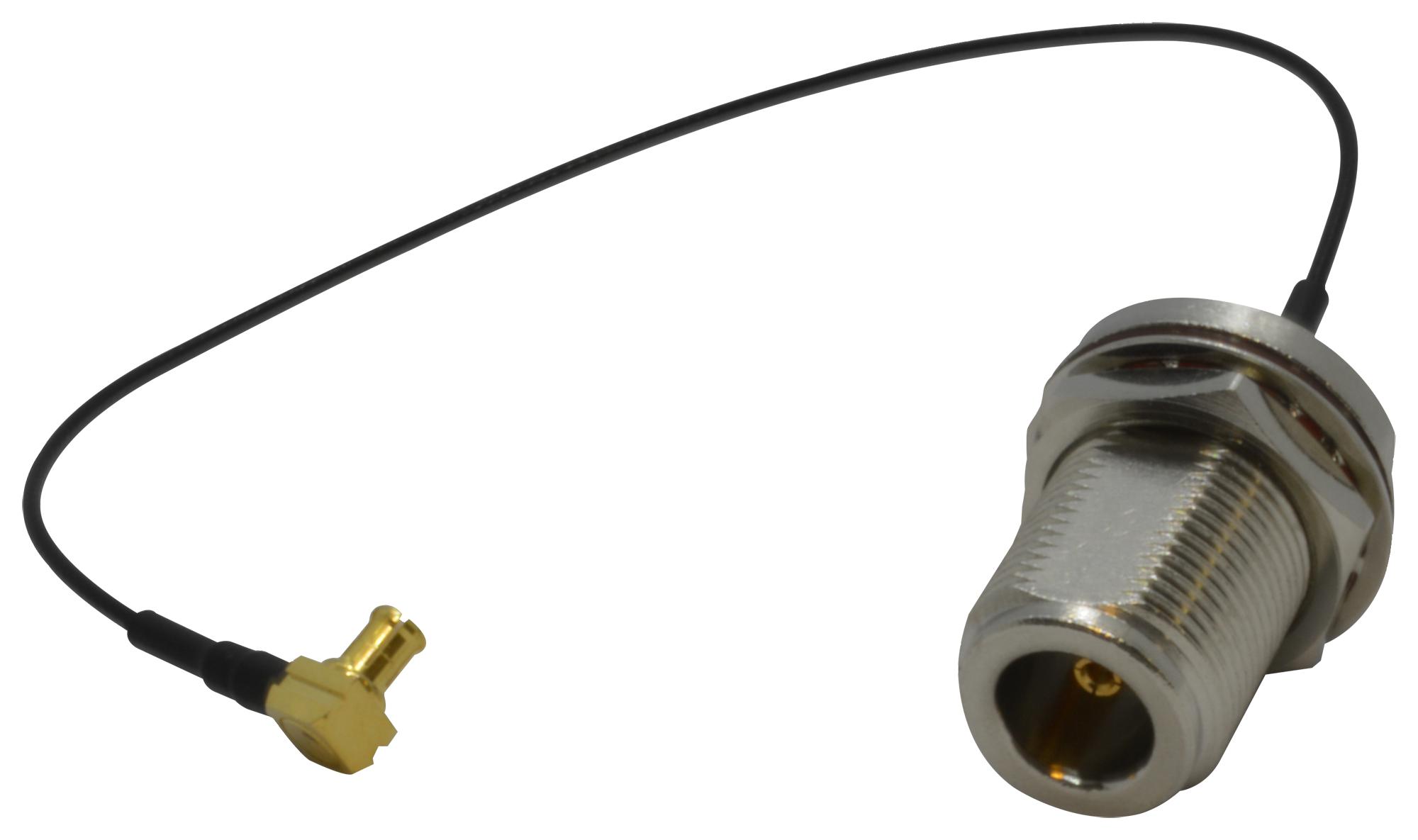

MULTICOMP-PRO MC001892 RF Coaxial Cable Assembly
This coaxial cable assembly features an IP67-rated bulkhead jack-to-MCX right angle plug, ideal for outdoor and rugged environments. It includes a 200mm black cable with impedance of 50Ω, a frequency range up to 6.0 GHz, and excellent electrical performance with low insertion loss and VSWR. The assembly is designed with precise dimensions for secure mounting and durability, including crimp connectors, heat shrink tubing, and RoHS compliance. Suitable for RF applications requiring reliable connectivity and environmental sealing.
MULTICOMP-PRO MC001892 RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 6.0 GHz
- Working Voltage: 170 Vrms Max
- Dielectric Withstanding Voltage: 750 Vrms Max
- Insulator Resistance: 1000 MΩ Min
- VSWR: 1.65:1 Max
- Insertion Loss: -1.5 dB Max
- Dimensions: 200 mm cable length, mounting hole 6.0 mm max, connector sizes 1.37 mm
- Temperature Range: -55°C to +105°C
- RoHS compliant
- Connector Type: Bulkhead Jack-to-MCX right angle plug
- Cable Diameter: Approx. 1.37 mm
- Material: Copper conductors, black PE insulation, heat shrink tubing
- Certifications: RoHS
- Frequency Range: DC to 6.0 GHz
Buy the Multicomp Series RF Coaxial Cable Assembly: MC001892
Enhance your RF system with this durable IP67-rated coaxial cable assembly, featuring a bulkhead jack-to-MCX right angle plug. Its 200mm cable length ensures easy installation in outdoor or rugged environments. Designed for high-frequency applications up to 6 GHz, it delivers low insertion loss and excellent VSWR for optimal signal integrity. The assembly includes crimp connectors, heat shrink tubing, and is RoHS compliant, making it a reliable choice for professional RF and communications projects. Buy online now for dependable performance.
Order your Multicomp Series RF Coaxial Cable Assembly MC001892 today and ensure reliable outdoor RF connectivity with environmental sealing and high-frequency performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001892?
You can click on the BUY or RFQ button to purchase MC001892 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001892?
You can download the MC001892 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001892?
MULTICOMP-PRO
