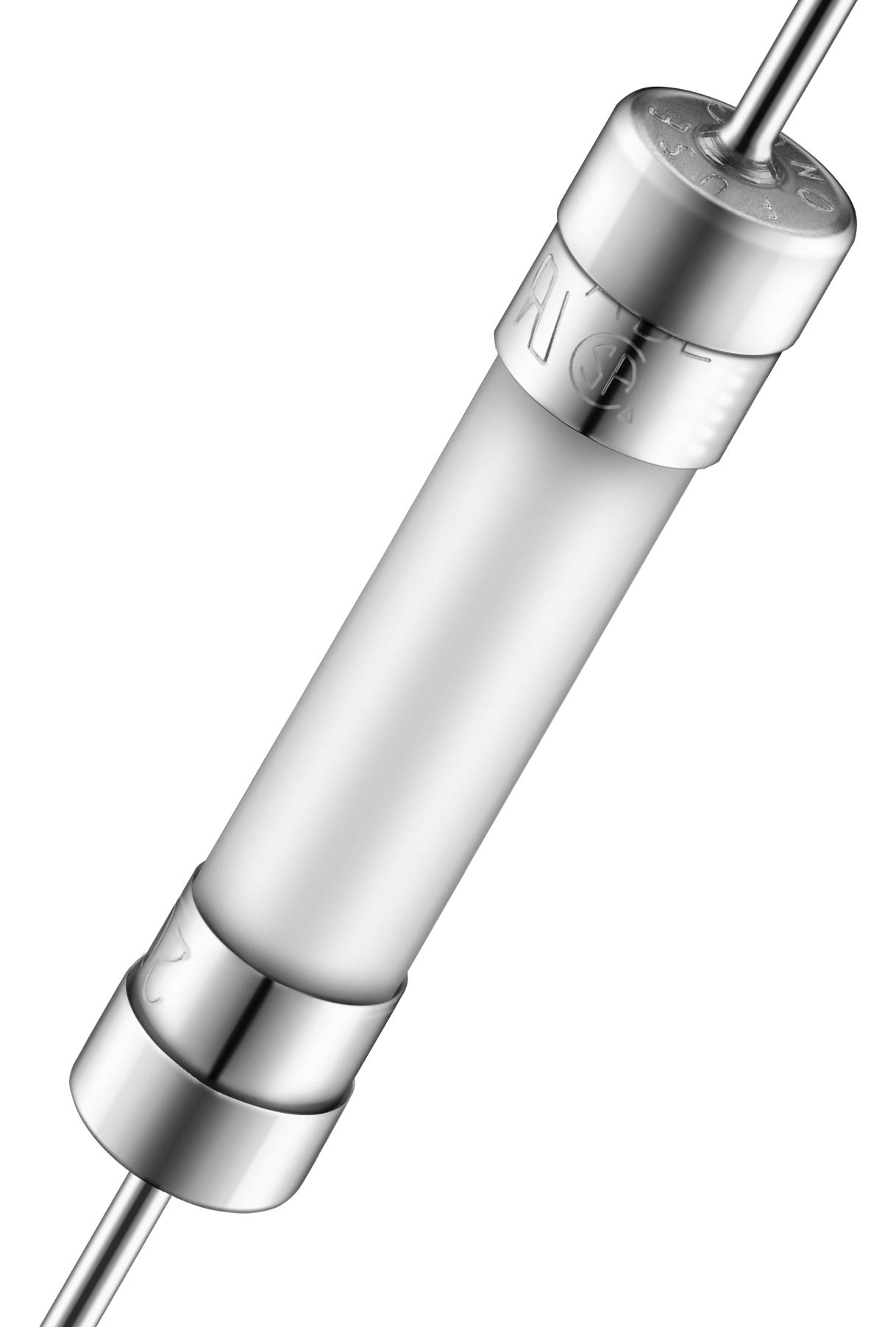

MULTICOMP PRO MP004302 Fast Acting Ceramic Fuse
This fast acting ceramic cartridge fuse features axial leads with dimensions of 6.3mm x 32mm, suitable for high-speed circuit protection. Compliant with RoHS standards, it offers reliable performance with ratings ranging from 500mA to 30A and voltages up to 250V AC/DC. Suitable for applications requiring fast response to overloads, it has an operating temperature range from 1°C to 125°C. The ceramic body and nickel-plated brass caps ensure durability and electrical stability during operation.
MULTICOMP PRO MP004302 Fast Acting Ceramic Fuse Specifications:
- Dimensions: 6.3mm x 32mm
- Body Material: Ceramic
- Cap Material: Nickel Plated Brass
- Rated Current: 500mA to 30A
- Rated Voltage: Up to 250V AC/DC
- Operating Temperature: 1°C to 125°C
- Interrupting Rating: 10,000A at 125V AC
- RoHS Compliant
- Agency Approvals: UL Listed, CSA Certified, PSE Recognized
- Wire Lead Diameter: 0.8 mm
- Lead Length: 38 ± 2mm
- Body Length: 31.75 ± 0.75mm
- Total Length with Caps: 33 ± 0.75mm
Buy the Multicomp Series Fast Acting Ceramic Fuse: MP004302
Secure your electronic circuits with the high-quality Multicomp ceramic fuse MP004302. Designed for fast actuation, it ensures reliable overcurrent protection up to 30A and 250V. Its ceramic body and brass caps provide durability and electrical stability under varying temperatures. Ideal for professional and hobbyist electronics, this axial leaded fuse features RoHS compliance and UL recognition. Shop online now for quick delivery and protect your devices efficiently with this dependable fuse.
Buy Multicomp MP004302 now and experience unmatched reliability and high-speed circuit protection for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004302?
You can click on the BUY or RFQ button to purchase MP004302 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004302?
You can download the MP004302 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004302?
MULTICOMP PRO
