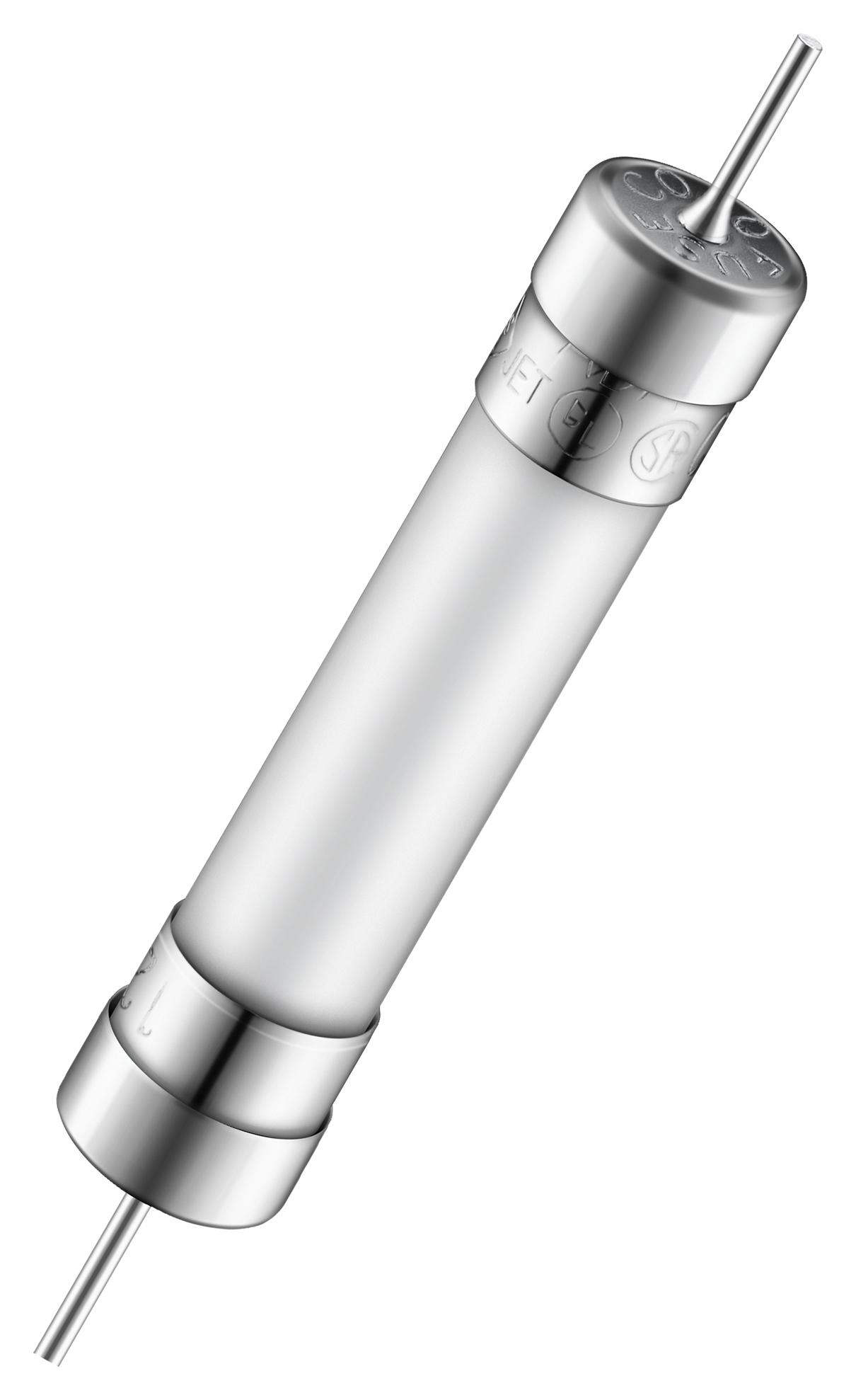

MULTICOMP PRO MP004325 Ceramic Cartridge Fuse
The Time-Lag Ceramic Cartridge Fuse with axial leads measures 6.3mm x 32mm, suitable for overcurrent protection in electronic circuits. It features a ceramic body with nickel-plated brass caps and leads of varying thickness based on rating. Designed to operate from -55°C to 125°C, it has an interrupting rating up to 10,000 amperes at 125V AC, meeting UL, CSA, and PSE standards. Ideal for circuit protection in various electrical and electronic applications, ensuring safety and reliability.
MULTICOMP PRO MP004325 Ceramic Cartridge Fuse Specifications:
- Body Material: Ceramic
- Caps Material: Nickel Plated Brass
- Lead Wire Diameter: 0.8 mm for 12A and less, 1.0 mm for ratings above 13A to 19A, 1.2 mm for above 20A
- Operating Temperature: -55°C to 125°C
- Interrupting Rating: Up to 10,000 amperes at 125V AC
- Rated Current Range: 800mA to 30A
- Rated Voltage: 125V AC / 250V AC
- Dimensions: Diameter 6.35 mm, Height 6.45 mm, Body Length 31.75 mm, Total Length with Cap 33 mm
- Standards Compliance: UL Listed, UL Recognized, CSA Certified, PSE
- Part Numbers: MP004317 to MP004338 (corresponding to rated currents and voltages)
Buy the Multicomp Series Ceramic Fuse: Time-Lag Axial Leaded 6.3mm x 32mm MP004325
Secure your electrical circuits today by ordering the Multicomp Series Ceramic Fuse MP004325 online. Designed for dependable overcurrent protection with a high interrupting capacity, this fuse features a ceramic body with nickel-plated brass caps and axial leads of suitable thickness. Operating from -55°C to 125°C, it complies with UL, CSA, and PSE standards, ensuring safety and durability. Perfect for industrial, electronic, and electrical applications requiring reliable circuit interruption, purchase now for peace of mind and outstanding performance.
Buy Multicomp Series Ceramic Fuse MP004325 now and experience unmatched reliability and performance in circuit protection for electrical systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004325?
You can click on the BUY or RFQ button to purchase MP004325 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004325?
You can download the MP004325 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004325?
MULTICOMP PRO
