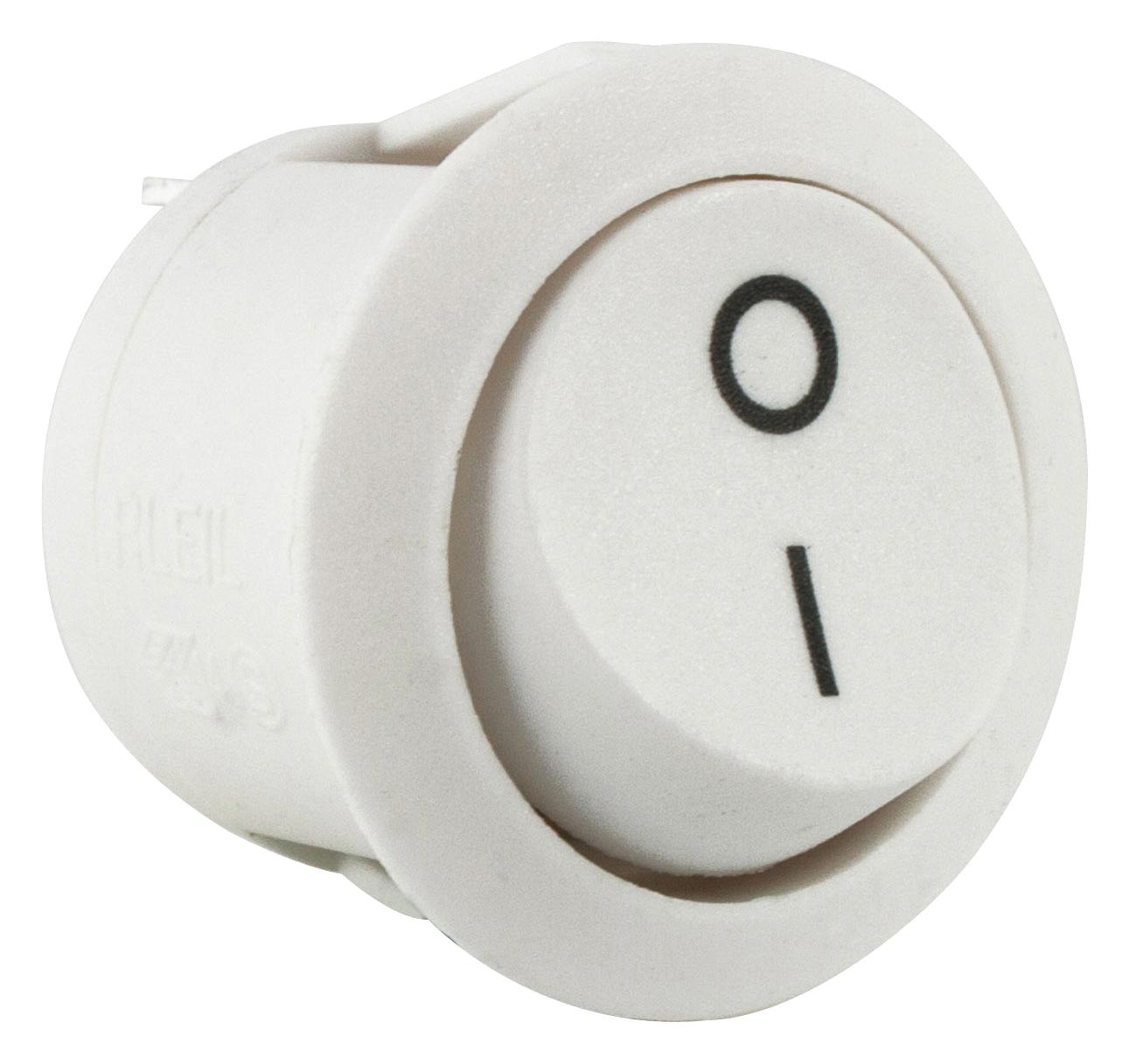

MULTICOMP PRO MP004437 Round Rocker Switch
This 20mm round rocker switch features a durable nylon housing with UL 94V-2 flammability rating, available in various configurations including SPST, SPDT, and DPDT. Designed for reliable on/off and changeover switching, it provides latching or momentary action with illuminated and non-illuminated options. Suitable for control panels and electronic devices, it offers robust contact material with silver-nickel alloy contacts. With a rated voltage up to 250V AC and current up to 10A, it ensures safe operation in industrial and residential applications, complemented by splash-proof caps for added protection.
MULTICOMP PRO MP004437 Round Rocker Switch Specifications:
- Housing Material: Nylon #66 UL 94V-2
- Rocker Material: Nylon #66 UL 94V-2
- Terminal Material: Copper alloy SN or AG plated
- Contact Material: AgNi (15) alloy
- Rating: 6A/250V AC, 12V DC, 24V DC options available
- Switch Action: SPST, SPDT, DPDT; Latching or Momentary
- Switch Colour: Black, Red, Green, White
- Body Marking: Optional markings for identification
- Actuator Diameter: 20mm
- Ingress Protection: Splash-proof cap available
- Approval Ratings: UL, ENEC
- Dimensions: Over 20mm diameter, with trim and actuation details suitable for panel mounting
- Temperature Range: -20°C to +85°C
Buy the Multicomp Series 20mm Round Rocker Switch: MP004437
Enhance your control system with this robust 20mm round rocker switch, designed for durability and versatility. Featuring a nylon housing and multiple configurations including SPST, SPDT, and DPDT, it offers reliable switching with rated currents up to 10A at 250V AC. The switch is available in various colors and optional illumination, ideal for industrial, residential, and electronic control panels. Its splash-proof cap provides additional protection, ensuring safe operation in demanding environments. Order online today for efficient, high-quality control solutions.
Get Multicomp series 20mm round rocker switch MP004437 today—built for reliable switching, sturdy construction, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004437?
You can click on the BUY or RFQ button to purchase MP004437 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004437?
You can download the MP004437 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004437?
MULTICOMP PRO
