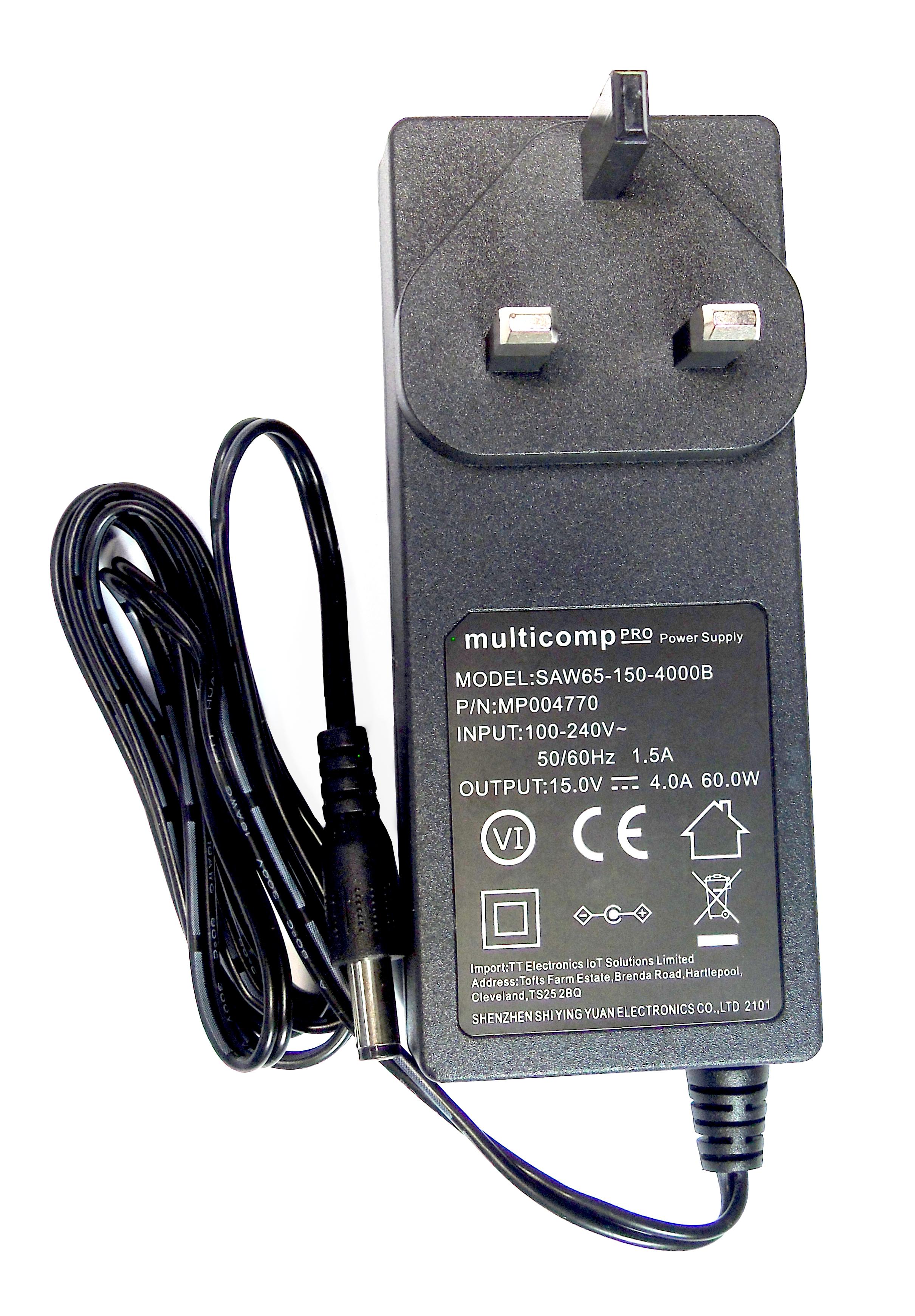

MULTICOMP PRO MP004770 UK Power Adapter
The 60W UK Wall Plug Adapter provides a reliable 15V DC output with a 4A current, designed for various general power applications. It features a compact fixed wall plug enclosure suitable for space-saving installations. Compliant with RoHS and CE standards, it offers high efficiency at 88%, with overload and short-circuit protections, ensuring safe and dependable operation. The adapter operates within a voltage range of 90V to 264V AC, and maintains performance at temperatures from 0°C to +40°C. Its sturdy build and high MTBF of 100,000 hours make it ideal for industrial and consumer use.
MULTICOMP PRO MP004770 UK Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 50Hz to 60Hz
- Input Current Rated: 1.5A Max
- Output Voltage Rating: 15V DC
- Output Current Range: 4.0A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive, Straight
- Load Regulation: +5%
- Line Regulation: 41%
- Ripple & Noise: 200mVp-p
- Efficiency: 88% Min
- Over Current Protection: >4.8A (100V AC to 240V AC)
- Short-Circuit Protection: Self-recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- Hi-Pot Test: 3000V AC 10mA 1min
- Leakage Current: 0.25mA max
- Safety Standard: CE-EMC, CE-LVD
- MTBF: 100,000 Hours
- Size: Max 147.3mm x 50.3mm x 33.5mm
- Weight: 280g
- Regulator Type: Switched Mode Power Supply
Buy the Buy multicomp UK Wall Plug Adapter Part Number MP004770 Online
Purchase the multicomp UK Wall Plug Adapter online today and benefit from its 60W power output, efficient 88% operation, and comprehensive safety protections. This compact, RoHS and CE compliant adapter features a 15V DC, 4A output, ideal for various general power applications. Its durable construction and high MTBF ensure long-lasting performance, while overload and short-circuit protections provide added safety. Easy to install and suitable for multiple environments, this power supply guarantees dependable operation for industrial, commercial, and personal devices.
Buy multicomp MP004770 now and enjoy reliable 60W power with high efficiency, safety features, and a compact design for your power needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004770?
You can click on the BUY or RFQ button to purchase MP004770 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004770?
You can download the MP004770 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004770?
MULTICOMP PRO
