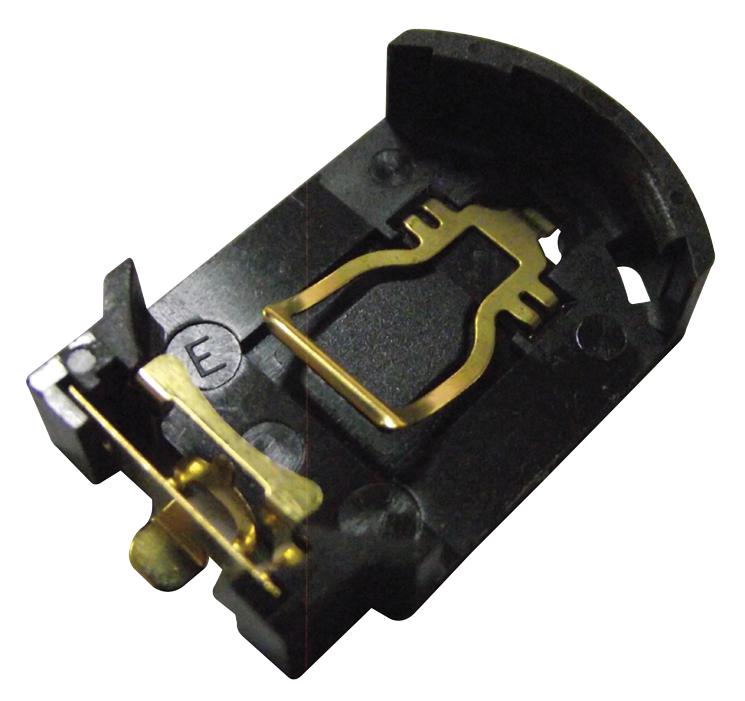

MULTICOMP-PRO MP005745 Coin Cell Holder
The 20mm Coin Cell Battery Holder is a reliable surface-mount component designed for secure placement of coin cells in electronic devices. Made with a PPS 30% GF housing in brown and phosphor bronze contacts plated with 1μm gold over Ni, it offers excellent conductivity and corrosion resistance. With a current rating of 3A AC/DC and voltage rating of 1250 VAC/DC, it supports diverse applications requiring compact power sources. Its insulation resistance of 71,000 MΩ and temperature range from -55°C to +85°C ensure durability in demanding environments.
MULTICOMP-PRO MP005745 Coin Cell Holder Specifications:
- Housing Material: PPS 30% GF Brown Colour
- Contact Material: Phosphor Bronze, 0.25 mm thick
- Gold Plating: 1μm over Nickel, minimum 50μm
- Current Rating: 3A AC/DC
- Voltage Rating: 1250 VAC/DC
- Contact Resistance: 30 mΩ
- Insulation Resistance: 71,000 MΩ
- Temperature Range: -55°C to +85°C
- Humidity: 40°C at 90-95% RH for 96 hours
- Dimensions: 20mm diameter, standard SMT format
- Mounting: Surface Mount Technology (SMT)
- Tolerances: Dimensions ±0.1 mm, angle +3°
Buy the Buy Multicomp Pro Coin Cell Battery Holder Part Number MP005745 Online
Purchase the Multicomp Pro Coin Cell Holder MP005745 online for a compact, reliable power source connection suited for electronic devices. Featuring a robust PPS housing and gold-plated contacts, it offers excellent electrical conductivity, corrosion resistance, and long-term durability. Designed for SMT assembly, it supports 3A current at 1250 VAC/DC, with high insulation resistance for safety and performance. Its temperature range from -55°C to +85°C ensures stability across various environments. Order now to integrate this essential component into your project seamlessly and efficiently.
Get Multicomp Pro MP005745 today—constructed for durable, secure coin cell mounting in compact electronic assemblies.
