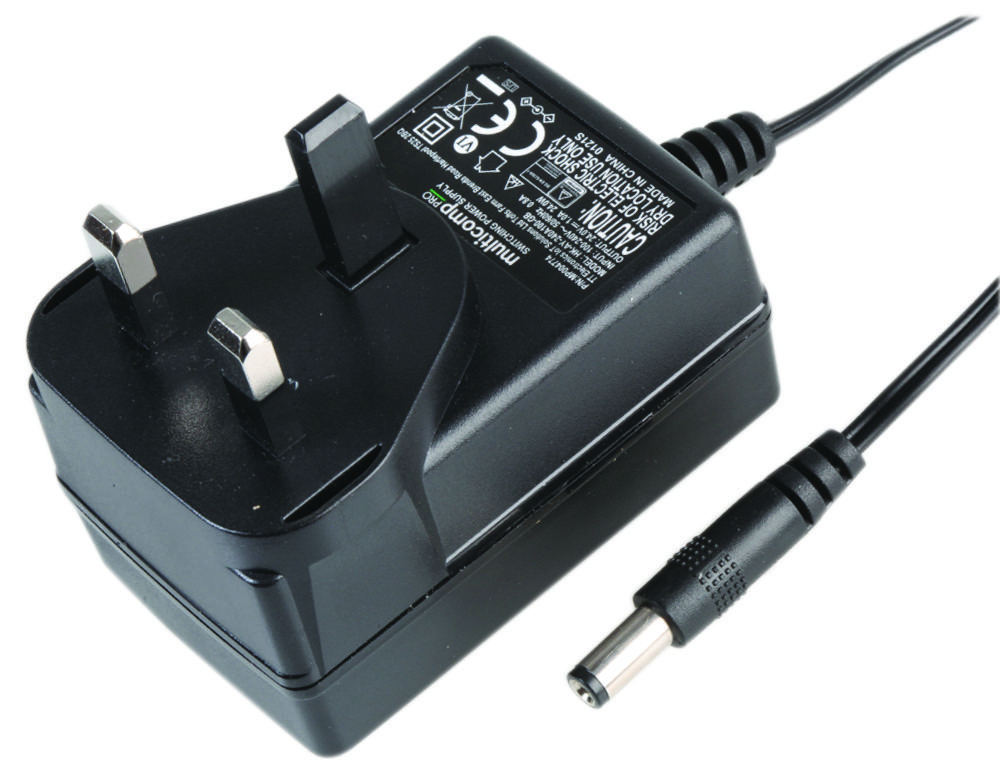

MULTICOMP-PRO MP004774 Wall Plug Power Supply
The 24W UK Wall Plug Adapter delivers reliable 24V DC output with a 1A current capacity, ideal for general power applications requiring stable DC power. Compact and robust, this switched-mode power supply features a UK fixed AC plug, level VI efficiency, and complies with RoHS, CE, and T-LICENSE standards for safety and environmental sustainability. It supports input voltages from 90V to 264V AC, with automatic overload and short-circuit recovery, making it suitable for various industrial and consumer electronics. Its dimensions are 72.1mm x 48.3mm x 42.6mm, and it weighs 120g.
MULTICOMP-PRO MP004774 Wall Plug Power Supply Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.8A Max.
- Output Voltage Rating: +24V
- Output Current Range: 1A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight Angle
- Total Output Regulation: 45%
- Line and Load Regulation: +2%
- Ripple & Noise: 200mVp-p
- Efficiency: 286.2%
- Input Protection: 2A fuse, Overload auto recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +70°C
- Operating Humidity: 10% to 95%
- Storage Humidity: 10% to 95%
- Hi-Pot: 3000V AC 4mA 1min
- Leakage Current: 0.25mA max
- Size: 72.1mm x 48.3mm x 42.6mm
- Weight: 120g
- Certifications: CE, RoHS, T-LICENSE, UL
- MTBF: 50,000 hours
Buy the Multicomp 24W Wall Plug Adapter – Reliable 24V DC Power for Industrial Applications
Purchase the Multicomp 24W Wall Plug Adapter online today for a reliable, efficient, and compact 24V DC power solution. Designed with safety standards including RoHS and CE, it features a UK fixed AC head, overload protection, and high MTBF for continuous operation. Ideal for industrial equipment, automation systems, and general electronics, it ensures stable output with automatic recovery from overloads and short circuits. Its durable construction and compact size make it perfect for easy installation in various settings. Order now for fast, secure delivery.
Get Multicomp 24W Wall Plug Adapter today—built for precision, safety, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004774?
You can click on the BUY or RFQ button to purchase MP004774 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004774?
You can download the MP004774 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004774?
MULTICOMP-PRO
