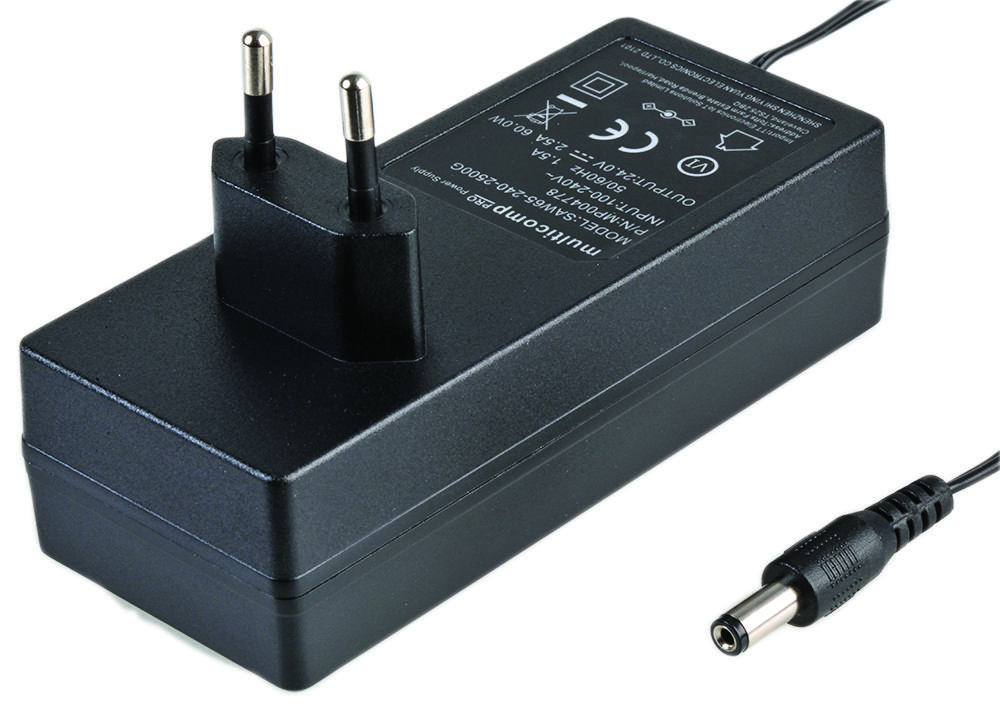

MULTICOMP-PRO MP004778 Wall Plug Adapter
This 60W EU wall plug adapter delivers 24V DC at 2.5A, featuring a compact design with a European fixed AC head. It complies with RoHS, CE standards, and offers high efficiency of 88%. Suitable for general power applications, it includes protections like over-current and short-circuit auto recovery, and operates within 0°C to +40°C. The compact, lightweight power supply measures 117.3mm x 50.3mm x 33.5mm, weighs 280g, and features a straight center-positive 2.1mm x 5.5mm x 12mm output connection. It is ideal for industrial, automation, and electronic device applications requiring reliable DC power.
MULTICOMP-PRO MP004778 Wall Plug Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 1.5A Max
- Output Voltage Rating: +24V
- Output Current Range: 2.5A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Total Output Regulation: 5%
- Line and Load Regulation: Line 1%, Load +5%
- Ripple & Noise: 200mVp-p
- Efficiency: 88% Min
- Over Current & Short-Circuit Protection: Auto Recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Size: 117.3mm x 50.3mm x 33.5mm
- Weight: 280g
- Safety Standard: CE(EN60950-1)
- EMI Standard: ENE toco-32
- Hi-Pot: 3000V AC, 10mA, 1min
- Leakage Current: 0.25mA max
- MTBF: 50,000 hours
Buy the Multicomp 60W EU Wall Plug Adapter – Reliable 24V DC Power for Industrial Applications
Secure your power needs by purchasing the Multicomp 60W EU Wall Plug Adapter online. Engineered for dependability, it provides 24V DC at 2.5A with high efficiency, auto-recovery protections, and compliance with safety standards. Its compact design fits well in industrial, automation, and electronic device setups, ensuring stable operation within a temperature range of 0°C to +40°C. With a straightforward straight output and lightweight construction, this power supply delivers reliable, robust energy for your critical applications, available now for quick and easy online ordering.
Buy Multicomp 60W EU Wall Plug Adapter now and experience unmatched reliability with high efficiency and comprehensive protections, perfect for industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004778?
You can click on the BUY or RFQ button to purchase MP004778 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004778?
You can download the MP004778 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004778?
MULTICOMP-PRO
