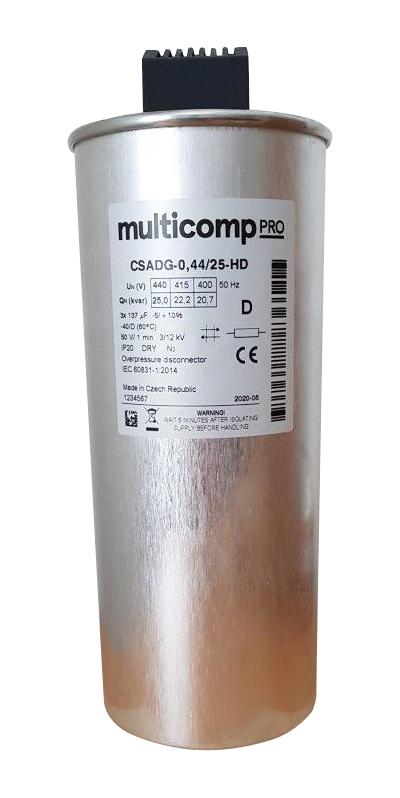

MULTICOMP-PRO MP005045 Power Factor Correction Capacitor
These are heavy-duty three-phase power factor correction capacitors designed for reliable operation in industrial electrical systems. Constructed with dry metallized polypropylene dielectric and aluminum casing, they ensure self-healing properties and long life expectancy exceeding 150,000 hours. Suitable for delta connections, they include built-in discharge resistors and safety fuse protections, supporting a wide voltage range of 440V to 480V. Their robust design allows mounting in any position, with natural or forced air cooling, and they meet IEC EN 60831 standards for high-performance power correction applications.
MULTICOMP-PRO MP005045 Power Factor Correction Capacitor Specifications:
- Rated Voltage: 440V to 480V / 50Hz
- Capacitance Tolerance: -5/+10 %
- Max. Permissible Current: 1.5 x In Continuous, 2 x In Short period
- Max. Inrush Current: 400 x In
- Capacitor Losses: approximately 0.4 W /kvar
- Discharge Resistors: Built-in 75 V / 3 min (up to 30 kvar)
- Protection Degree: IP 20 (IP 54 on request)
- Lifetime: Over 150,000 hours
- Cooling: Natural Air or Forced
- Case Material: Aluminum
- Dielectric System: Dry Metallized Polypropylene, Self-healing
- Impregnate / Filling: Inert gas N2 or semi-dry resin (50 kvar)
- Temperature: -40/D (60°C)
- Max. Relative Humidity: 95%
- Max. Altitude: 4000 m
- Overvoltage Tolerance: Up to 1.3 x UN for 1 min
- Mounting: Any position
- Terminals: Three clamps on one side
- Safety Device: 3 Fuses Overpressure Disconnector
Buy the Multicomp 12.5kvar – Reliable Power Factor Correction for Industrial Applications
Enhance your industrial electrical systems with high-quality power factor correction capacitors designed for reliability and efficiency. Manufactured with durable aluminum cases and dry metallized polypropylene dielectrics, these capacitors support voltage ranges from 440V to 480V and are suitable for delta connections. They feature built-in discharge resistors and safety fuses, ensuring safe operation and compliance with international standards. Easy to mount in any position, they are ideal for improving power quality, reducing energy costs, and ensuring operational stability in demanding industrial environments.
Get multicomp 12.5kvar power factor correction capacitor today—built for long-lasting durability and improved electrical performance.
