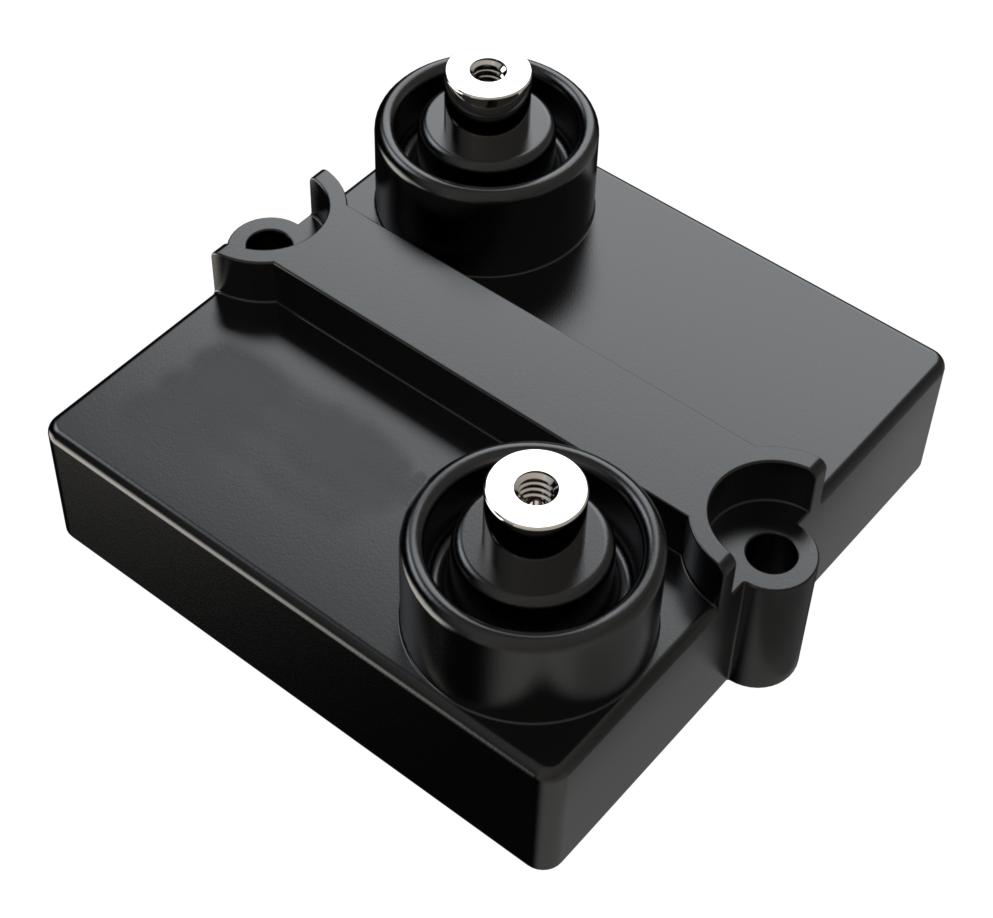

MULTICOMP PRO MP005204 power resistor
250W panel mount thick film power resistor with a resistance of 22 ohms, 10% tolerance, suitable for filtering and snubber applications. Features include excellent heat conduction, molded housing with UL94-V0 rating, and requires external heatsink with thermal grease for optimal performance. Available in various power ratings from 100W to 800W, with specific models designed for high voltage, dielectric strength, and thermal stability. These resistors are ideal for electrical filters due to their low parasitic inductance, high power dissipation, and robust construction for demanding environments.
MULTICOMP PRO MP005204 power resistor Specifications:
- Power Rating: 250W
- Resistance Range: 1R to 100R
- Tolerance: 10%
- Temperature Coefficient: +100 ppm/K
- Max Working Voltage: 5000V AC
- Working Temperature Range: -55°C to +155°C
- Dielectric Strength: 7000VAC (Model 250), 12000VAC (Model 250T)
- Insulation Resistance: > 10 MΩ @ 500V
- Creepage Distance: 42mm
- Airgap Distance: 16mm
- Partial Discharge: < 10pC @ 5000V AC
- Self Inductance: 80nH
- Capacitance to Heatsink: < 110pF
- Thermal Resistance: 0.11K/W to 0.15K/W
- Heatsink Flatness: 0.05mm
- Heatsink Surface Finish: 6.3μm
- Max Torque for Mounting: 2Nm
- Weight: 100g
Buy the Buy multicomp power resistor Part Number MP005204 Online
Get your multicomp 250W power resistor MP005204 securely online and enhance your electrical filter or snubber application. Designed for high power dissipation and robust operation, this resistor features a resistance of 22 ohms with 10% tolerance, suitable for demanding industrial environments. With excellent heat conduction and molded housing, it withstands strong environmental conditions. Mount on a heat sink with thermal grease for optimal performance, ensuring safety and efficiency in your electrical systems. Order now and benefit from fast delivery and reliable quality.
Order your multicomp 250W panel mount resistor MP005204 today and ensure reliable performance in your industrial filtering and snubber circuits.
