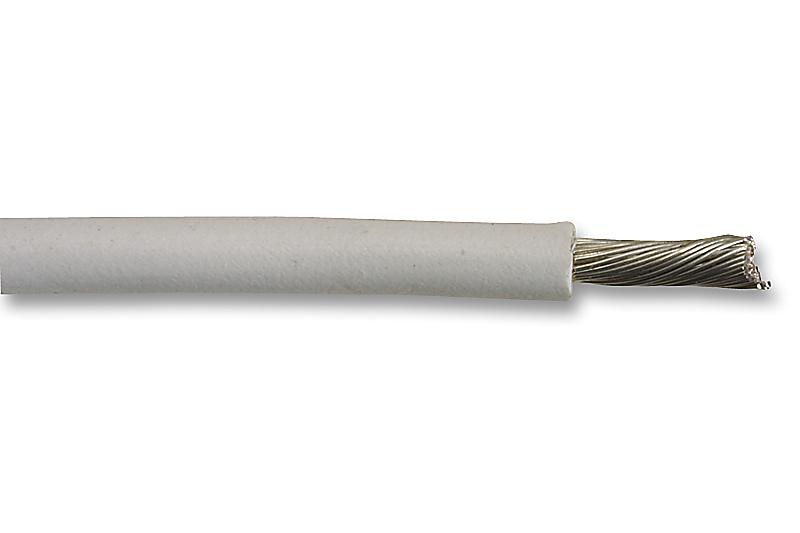

MULTICOMP PRO MP005404 Hook-Up Wire
This equipment hookup wire complies with Defence Standard 61-12 Part 6 and BS 4808 Part 2, featuring stranded Tinned Annealed Copper conductors with hard PVC insulation. Designed for internal wiring in electronic devices and telecommunication exchanges, it supports up to 1000V AC and operates effectively between -20°C to +85°C. Its flexible construction ensures reliable connections, with a minimum bend radius of 10 times the outer diameter, making it suitable for intricate electronic assemblies and internal device wiring requiring durable, RoHS-compliant wire with excellent electrical properties.
MULTICOMP PRO MP005404 Hook-Up Wire Specifications:
- Conductor Material: Tinned Annealed Copper Wire
- Insulation Material: Hard PVC
- Max. Working Voltage: 1000V AC
- Operating Temperature Range: -20°C to +85°C
- Min. Bend Radius: 10 x O.D. mm
- Electrical Resistance: Min. Insulation Resistance 50MQ.km at 20+5°C
- Spark Test Voltage: 4000V AC
- Voltage Test: 1.5kV AC
- Nominal Diameter: 2.15 mm for 16/0.2mm wire, 2.55 mm for 32/0.2mm wire, 3.05 mm for 63/0.2mm wire
- Length: 100 m (or 500 m for select variants)
- RoHS Compliant: Yes
Buy the Multicomp Series Hook-Up Wire: MP005404
Purchase Multicomp hook-up wire MP005404 online today for your electronic and telecommunication projects. Designed with stranded Tinned Copper conductors and hard PVC insulation, it supports up to 1000V AC and operates at temperatures between -20°C and +85°C. Its flexible construction with a minimum bend radius of 10 times the outer diameter simplifies intricate wiring, ensuring long-lasting durability and safety compliance for internal device wiring. Available in 100-meter rolls, the wire offers excellent electrical resistance and RoHS compliance, making it a trusted choice for professionals seeking reliable, high-quality hookup wire.
Get Multicomp Series hook-up wire MP005404 today—ideal for electronic wiring and telecom applications, ensuring durability and reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005404?
You can click on the BUY or RFQ button to purchase MP005404 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005404?
You can download the MP005404 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005404?
MULTICOMP PRO
