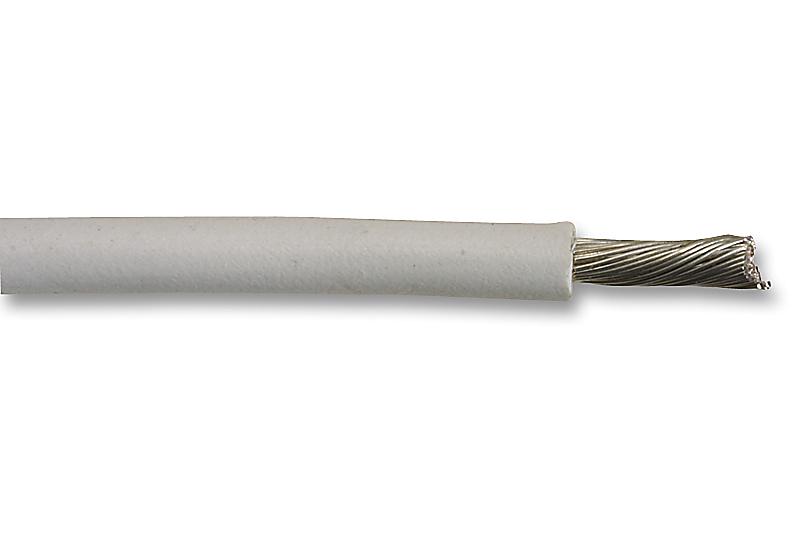

MULTICOMP-PRO MP005422 Hook-up wire
The hook-up equipment wire complies with Defence Standard 61-12 Part 6 and BS 4808 Part 2, featuring stranded Tinned Annealed Copper conductors inside PVC insulation. Designed for internal wiring in electronic devices, telecommunication exchanges, and industrial applications, it operates safely up to 1000V AC or DC with a minimum bend radius of 10 times the outer diameter. It withstands temperatures from -15°C to +85°C, offers high insulation resistance, and is RoHS compliant, ensuring durable and reliable electrical connections in complex systems.
MULTICOMP-PRO MP005422 Hook-up wire Specifications:
- Conductor Material: Tinned Annealed Copper
- Insulation Material: Hard PVC
- Max. Operating Voltage: 1000V AC/DC
- Min. Bend Radius: 10 x O.D. mm
- Operating Temperature: -15°C to +85°C
- Insulation Resistance: ≥50MQ·km @ 20+5°C
- Spark Test Voltage: 4000V AC
- Voltage Test: 1.5kV AC
- Conductor Diameter: 0.2mm (16/0.2mm) and 0.24mm (24/0.2mm)
- RoHS Compliant
- Applicable Standards: Defence Standard 61-12 Part 6 Type 2, BS 4808 Part 2 Class 2
- Physical Properties: Stranded conductor, flexible and durable wiring for internal electrical applications
Buy the Multicomp Series Hook-Up Equipment Wire: MP005422
Secure your projects with our high-quality Multicomp Series hook-up wire MP005422, ideal for internal electrical wiring in electronic devices, telecom exchanges, and industrial equipment. Constructed with stranded Tinned Copper conductors and robust PVC insulation, this wire guarantees excellent electrical performance and durability. Rated up to 1000 volts AC/DC, it supports temperatures from -15°C to +85°C, ensuring reliability in various environments. Easy to install with a minimum bend radius, it’s RoHS compliant, making it a perfect choice for professional wiring applications for consistent and safe electrical connections.
Order your Multicomp Series MP005422 hook-up equipment wire today and ensure reliable internal wiring for your electronic and telecom systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP005422?
You can click on the BUY or RFQ button to purchase MP005422 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005422?
You can download the MP005422 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP005422?
MULTICOMP-PRO
