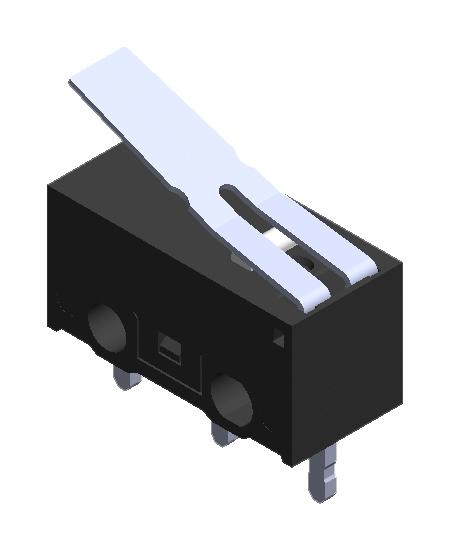

MULTICOMP PRO MP005548 Microswitch
High-reliability through-hole snap action microswitch designed for various electronic and household applications. Features include a rated contact capacity of 3A at 125V AC, a durable mechanical lifespan exceeding 1,000,000 cycles, and an operating temperature range of -25°C to +75°C. Suitable for mouse, projector, communication devices, security systems, and control circuits, it offers multiple actuator options such as hinge, bent lever, pin, and simulated roller lever, ensuring versatile deployment in automation and control systems.
MULTICOMP PRO MP005548 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 1.5A at 250V AC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 8,000 cycles minimum
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground, and between terminals and non-current-carrying metal parts
- Operating Temperature: -25°C to +75°C
- Actuator options: Hinge lever, bent lever, pin plunger, simulated roller lever
- Operating Force: 26gf (0.25N) to 40gf (0.39N)
- Release Force: 2gf (0.02N)
- Overtravel: 0.20mm to 0.55mm
- Movement Differential: 0.20mm to 0.50mm
- Operating Position: 6.9mm to 10.2mm
- Free Position: 1.5mm to 11.8mm
Buy the Farnell Series Microswitches: MP005548
Purchase the Farnell Series Microswitch MP005548 online today and experience dependable control with high durability and versatile actuator options. This miniature through-hole switch is rated at 3A 125V AC, designed for use in various electronic applications including mice, projectors, and security systems. Its long operational life exceeds one million cycles and it operates reliably within a temperature range of -25°C to +75°C. Easy to install with multiple actuator choices, this switch ensures robust performance and precise switching for your control needs.
Order your Farnell Series Microswitch MP005548 today and ensure reliable operation for your electronic and household control projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005548?
You can click on the BUY or RFQ button to purchase MP005548 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005548?
You can download the MP005548 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005548?
MULTICOMP PRO
